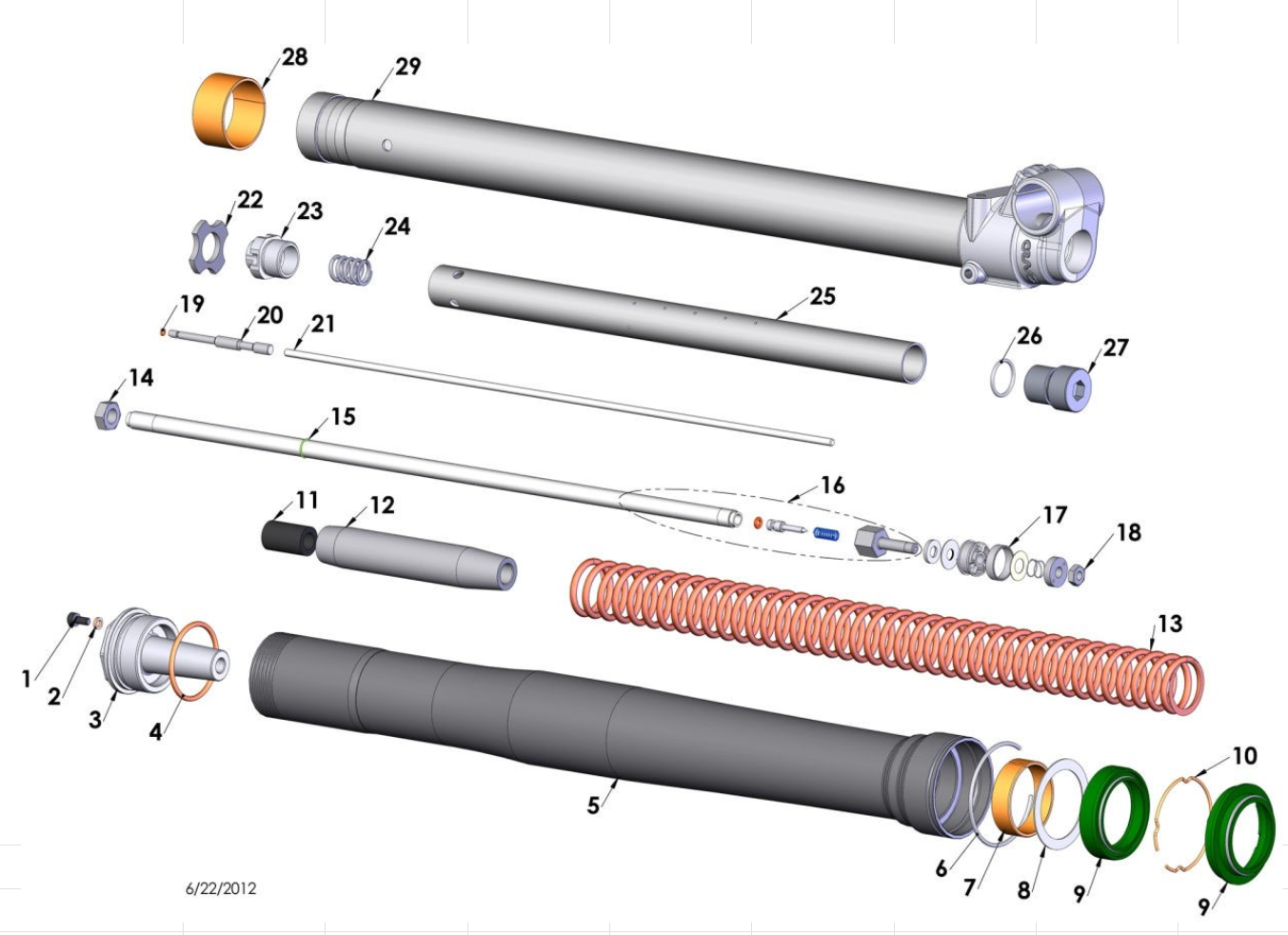

Cobra CX65 2015 Parts – Fork – Leg Assembly – Non-Brake Side

Ref #	Part #	Product	Price
1	HCBC0408	M4 X 8 SHCS CLEAR ZINC	$1.09
2	ZCKG0001	GASKET BLEED SCREW FORK	$0.86
3	KCC60044R	FORK CAP NON-BRAKE SIDE SMART 37MM	$96.23
4	ZCC60011	O-RING 37MM FORK CAP	$2.76
5	KCC60037	FORK - OUTER TUBE 37MM	$232.44
6	KCC60043	RING CLIP - FORK OUTER WEAR 37MM	$5.43
7	KCC60041	FORK GLIDE RING BOTTOM 37MM	$14.33
8	KCC60047	SPACER - FORK SEAL - 37MM	$7.65
9	KKC60003	R/B KCC60039 - FORK SEAL & SWIPER KIT - 37MM - CX65	$49.94
10	KCC60066	RING CLIP - FORK SEAL RETAINER 37MM	$5.43
11	KCC60067	FORK - JOUNCE BUMPER	$8.32
12	KCC60064	GUIDE - FORK SPRING - 37MM	$22.24
13	KCC63726	SPRING - FORK .26 KG/MM (SINGLE)	$48.88
13	KCC63724	SPRING - FORK .24 KG/MM (SINGLE)	$48.88
13	KCC63728	SPRING - FORK .28 KG/MM (SINGLE)	$48.88
14	HCNL3824	3/8-24 JAM NUT CLASS 8	$3.32
15	KCC60068	FORK - RING CLIP - SPRING GUIDE RETAINER	$4.76
16	KAC60003	DAMPER ROD ASSEMBLY 37MM	$98.46
17	KCCS0018	FORK - MID VALVE GLIDE RING	$9.88
18	HCNJ0006	R/B HCNJ0601 M6-1.0 THIN HEX JAMNUT	$1.09
19	BCKG0033	ORING - 2.1MM ID - 1MM - BUNA	$2.20
20	KCC60052	FORK ADJUSTMENT SCREW TOP - LONG	$51.72
21	KCC60049	FORK ADJUSTER PIN	$19.90
22	KCC60042	PERCH - FORK SPRING - HARDENED - 37MM	$9.43
23	KCCS0001	R/B KCMU0013 - FORK - CARTRIDGE CAP	$28.80
24	KCKG0050	FORK - TOP OUT SPRING	$8.77
25	KCC60056	FORK CARTRIDGE TUBE - SMART LEG	$61.07
26	ZCKGB017	O-RING FORK BOTTOM PLUG	$2.20
27	KCC60057	FORK - BOTTOM PLUG - SMART LEG	$32.14
28	KCC60036	FORK GLIDE RING TOP 37MM	$14.33
29	KAC60002	FORK LOWER COMPLETE NON-BRAKE SIDE - 37MM	$221.31
