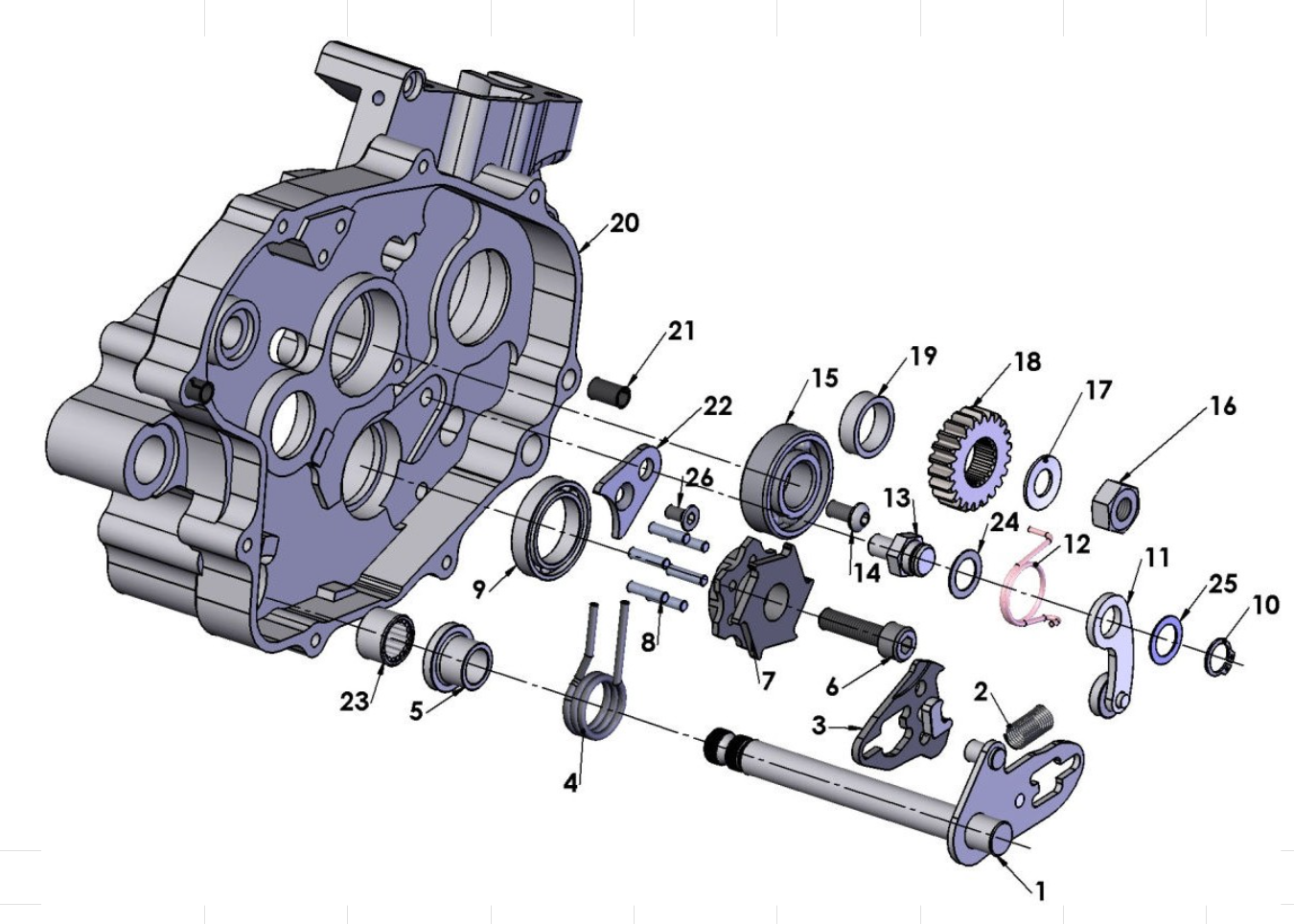

2015 Cobra CX65 Parts – Engine – Shift Mechanism

Ref #	Part #	Product	Price
1	EAC60017	SHIFTER SHAFT W/ PIVOT PLATE - 2015 - 2023	$98.24
2	ECDC0055	SHIFTER SPRING	$13.88
3	EAC60018	SHIFT SLIDING PLATE - 2015 & NEWER	$61.07
4	ECC60202	SPACER - KICK SPRING CENTERING - 2015	$9.88
5	ECC60146	SPACER SHIFT SHAFT SPRING CENTERING	$6.09
6	HCBC0806	M8 X 30 SHCS ZINC	$1.09
7	ECC60189	CASSETTE - SHIFTING - 2015-CURRENT	$55.50
8	ECDC0051	DOWEL PIN 4X16.0	$2.20
9	ECDC0022	BEARING SHIFT DRUM	$22.12
10	ECDC0035	SNAP RING EXT.12MM-GEAR RET.	$2.20
11	ECMU0545	ASSY - SHIFT FOLLOWER ARM AND ROLLER	$27.68
12	ECMU0546	SPRING FOLLOWER ARM	$9.43
13	ECC60096	PIVOT - FOLLOWER ARM	$21.01
14	HCBB1612	M6 X 12 BUTTON HEAD BLACK OXIDE	$1.09
15	ECMU0016	BEARING - 50CC CRANKSHAFT & 65CC TRANS	$22.12
16	HCNS1001	10MM X 1.25 NUT	$1.09
17	ECDC0030	BELLVILLE - LOCK WASHER - 10MM	$3.20
18	ECDC0073	CRANK DRIVE GEAR	$32.14
19	ECC60198	SPACER - CRANK DRIVE GEAR - CX65 2015	$10.99
20	EKC62015	ENGINE CASE SET W/B&S CX65 – 2015 AND NEWER	$609.81
21	ECDC0031	DOWEL,HOLLOW,CENTERING 6X13	$3.20
22	ECC60095	R/B ECC60199 - RETAINER PLATE FOR SHIFT DRUM BEARING	$9.43
23	ECMU0020	BEARING TRANS. PRECISION NEEDLE	$16.56
24	ECC60119	SHIM WASHER 18 x 0.5 x 12	$2.20
25	ECC60152	SHIM WASHER 18 x 0.2 x 12	$2.20
25	ECC60153	SHIM WASHER 18 x 0.3 x 12	$2.20
26	HCFH0512	M5 X 12 FLAT HEAD ZINC	$1.09
NOT SHOWN	ECC60028	BUSHING - ENGINE PIVOT - 12MM	$13.22
