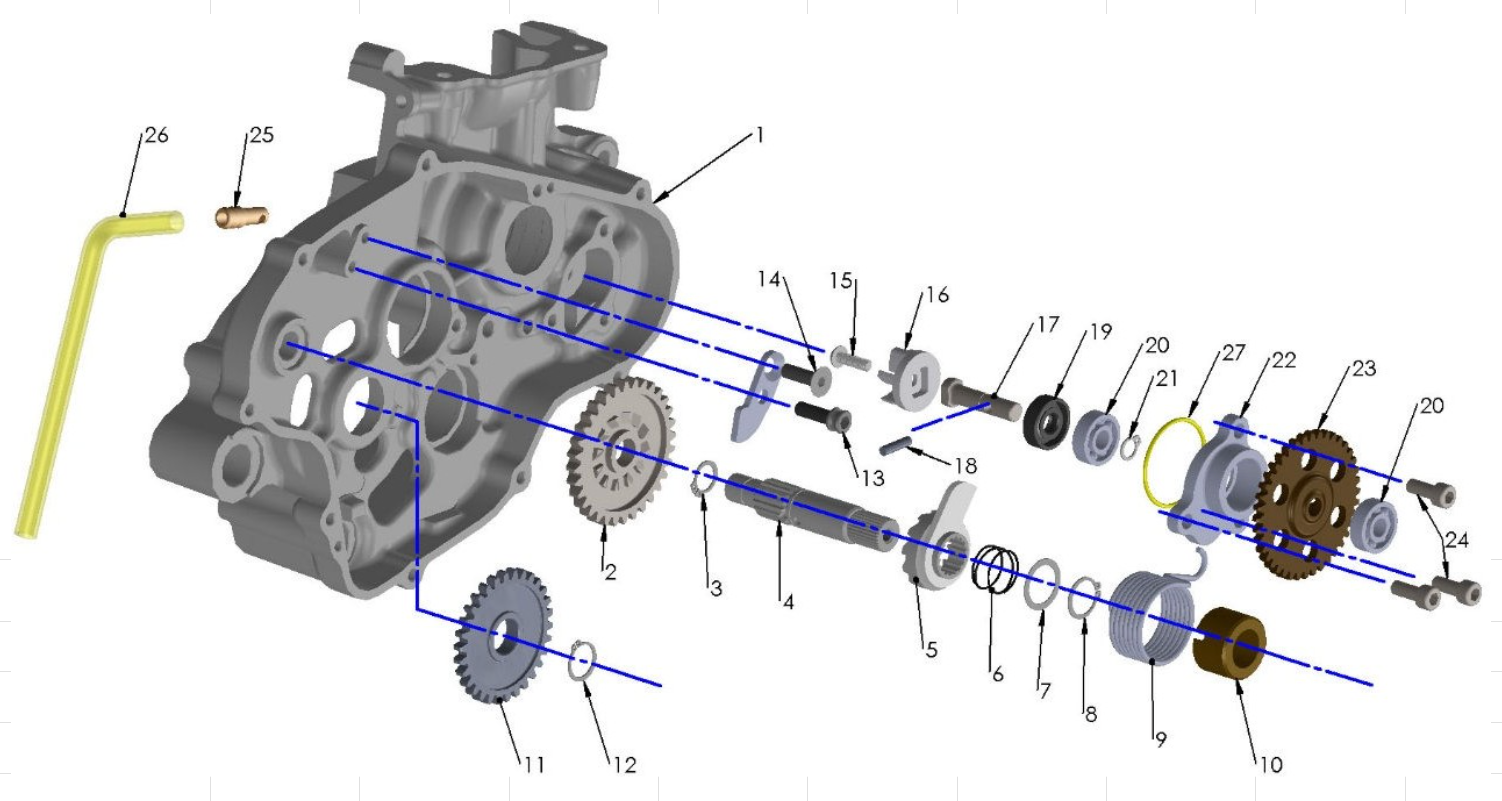

2015 Cobra CX65 Parts – Engine – Kick Mechanism & Water Pump

Ref #	Part #	Product	Price	Quantity
1	EKC62015	ENGINE CASE SET W/B&S CX65 – 2015 AND NEWER	$609.81
2	ECDC0033	GEAR KICKSTARTER	$68.86
3	ECDC0035	SNAP RING EXT.12MM-GEAR RET.	$2.20
4	ECMU0171	SHAFT, KICK STARTER – THREADED	$77.31	Back Order
5	ECC60201	GEAR - KICK RAMP - NO ARMS	$53.28
6	ECDC0042	SPRING RAMP KICK START MANUAL	$6.66
7	ECDC0043	WASHER KICKSTART BACKUP	$2.20
8	ECDC0036	SNAP RING EXT.16MM-SPRING RET.	$2.20
9	ECC60067	SPRING KICK START CX65	$43.26
10	ECC60202	SPACER - KICK SPRING CENTERING - 2015	$9.88
11	ECDC0032	GEAR KICK STARTER IDLER	$73.31
12	ECDC0037	SNAP RING EXT.15MM-IDLER RET.	$2.20
13	ECMU0174	HOLDER - KICK SPRING - M6 X 20	$9.43
14	HCFH0620	M6 X 20 FLAT HEAD W ZINC	$1.09
15	HCBB0403	M4X8 BUTTON HEAD SS	$1.09
16	ECKG0073	WATERPUMP IMPELLER ALUMINUM	$33.25
17	ECC60173	SHAFT - WATERPUMP - 2015	$21.01
18	ECDC0051	DOWEL PIN 4X16.0	$2.20
19	ECC60175	SEAL - WATERPUMP 8x22x7TC	$6.66
20	ECC60174	BEARING - WATERPUMP 608 - 2015	$9.88
21	ECC60176	SNAP RING - WATERPUMP - 2015	$0.53
22	ECC60177	HOUSING - WATERPUMP - 2015	$43.26
23	ECC60172	GEAR - WATERPUMP DRIVE - PLASTIC - 2015	$33.25
24	HCBC0601	M6 X 16 SHCS ZINC	$1.09
25	ECMU0233	R/B ECMU0233P - VENT HOSE NIPPLE (LARGE)	$9.88
26	ECMU0534	HOSE CRANKCASE VENT - pre 2010 50 and up to current 65	$1.64
27	ZCMU0R07	O’RING – WATER PUMP	$4.43	Back Order
