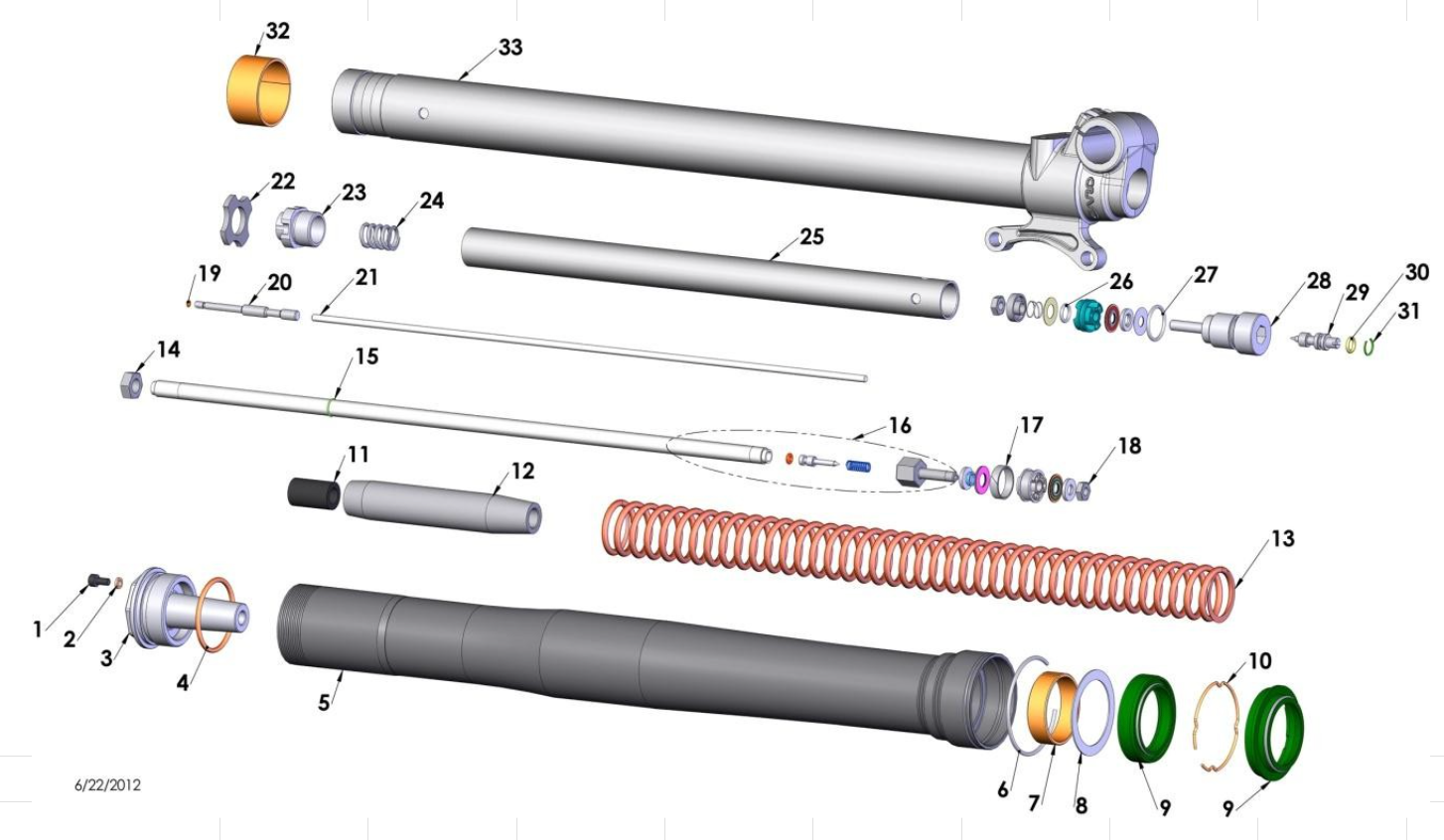

2013 Cobra CX65 Parts – Fork – Leg Assembly – Brake Side

Ref #	Part #	Product	Price	Quantity
1	HCBC0408	M4 X 8 SHCS CLEAR ZINC	$1.09
2	ZCKG0001	GASKET BLEED SCREW FORK	$0.86
3	KCC60044L	FORK CAP BRAKE SIDE 37MM	$96.23
4	ZCC60011	O-RING 37MM FORK CAP	$2.76
5	KCC60037	FORK - OUTER TUBE 37MM	$232.44
6	KCC60043	RING CLIP - FORK OUTER WEAR 37MM	$5.43
7	KCC60041	FORK GLIDE RING BOTTOM 37MM	$14.33
8	KCC60047	SPACER - FORK SEAL - 37MM	$7.65
9	KKC60003	R/B KCC60039 - FORK SEAL & SWIPER KIT - 37MM - CX65	$49.94
10	KCC60066	RING CLIP - FORK SEAL RETAINER 37MM	$5.43
11	KCC60067	FORK - JOUNCE BUMPER	$8.32
12	KCC60064	GUIDE - FORK SPRING - 37MM	$22.24
13	KCC63726	SPRING - FORK .26 KG/MM (SINGLE)	$48.88
13	KCC63724	SPRING - FORK .24 KG/MM (SINGLE)	$48.88
13	KCC63728	SPRING - FORK .28 KG/MM (SINGLE)	$48.88
14	HCNL3824	3/8-24 JAM NUT CLASS 8	$3.32
15	KCC60068	FORK - RING CLIP - SPRING GUIDE RETAINER	$4.76
16	KAC60003	DAMPER ROD ASSEMBLY 37MM	$98.46
17	KCCS0018	FORK - MID VALVE GLIDE RING	$9.88
18	HCNJ0006	R/B HCNJ0601 M6-1.0 THIN HEX JAMNUT	$1.09
19	BCKG0003	O-RING 2mm ID	$0.00	Back Order
20	KCC60052	FORK ADJUSTMENT SCREW TOP - LONG	$51.72
21	KCC60049	FORK ADJUSTER PIN	$19.90
22	KCC60042	PERCH - FORK SPRING - HARDENED - 37MM	$9.43
23	KCCS0001	R/B KCMU0013 - FORK - CARTRIDGE CAP	$28.80
24	KCKG0050	FORK - TOP OUT SPRING	$8.77
25	KCKG0019	CARTRIDGE TUBE - JR KG 65 FORKS - ALUM	$49.94
26	KCMU0021	O-RING - FORK - BASE VALVE & COMP ADJ	$1.09
27	ZCKGB017	O-RING FORK BOTTOM PLUG	$2.20
28	KCC60038	R/B KCC60069 FORK BOTTOM PLUG 37MM CX65	$76.20
29	KCC60048	FORK BOTTOM PLUG ADJUSTMENT SCREW	$33.25
30	ZCMUOR03	O-RING 6.07X1.78 SILICONE	$1.09
31	KCC60065	RING CLIP - FORK ADJUSTMENT SCREW BOTTOM	$2.76
32	KCC60036	FORK GLIDE RING TOP 37MM	$14.33
33	KAC60001	FORK LOWER COMPLETE BRAKE SIDE - 37MM	$221.31
