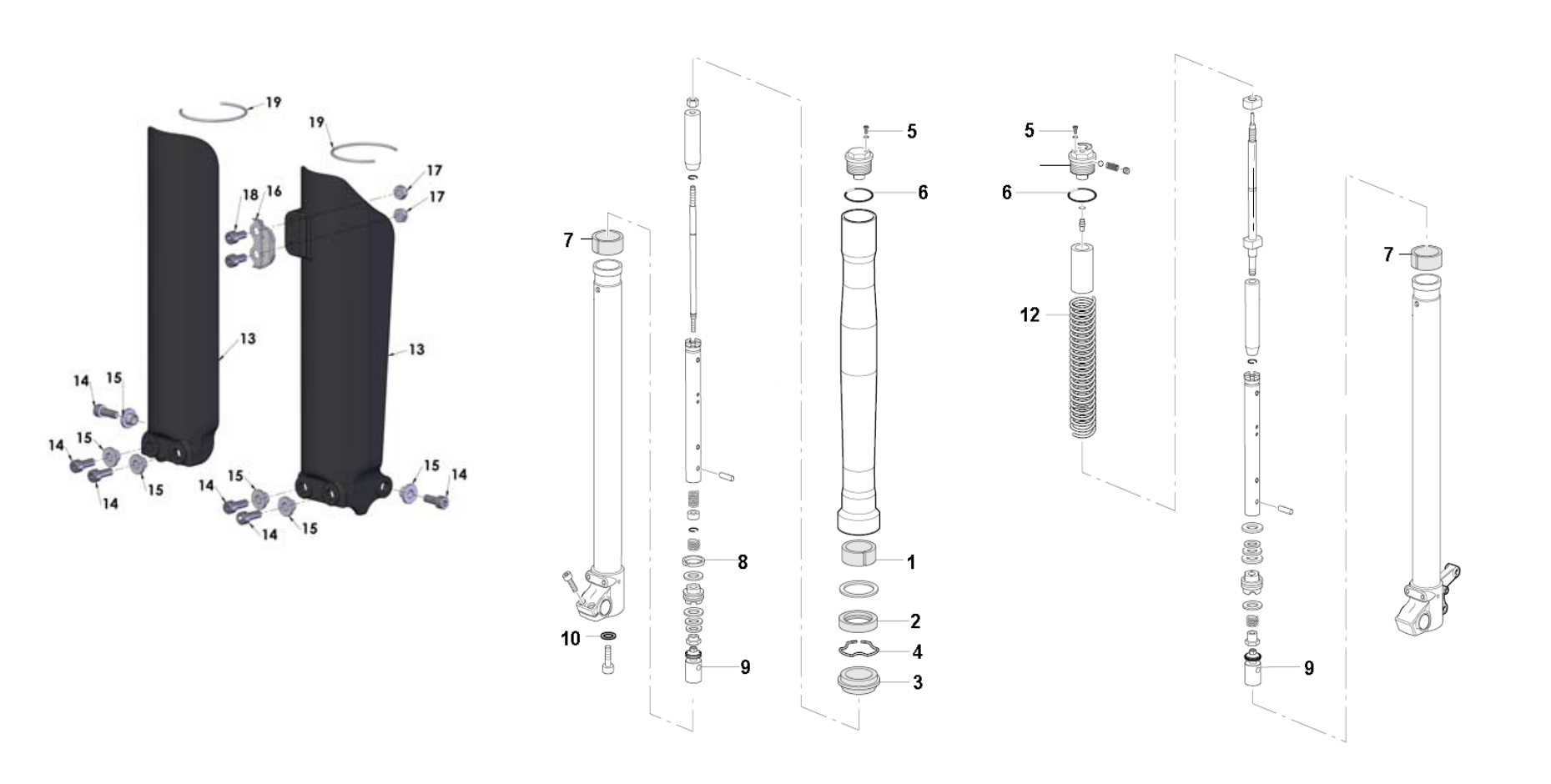

Cobra CX65 2012 Parts – Forks – Leg Assembly

Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.

Ref #	Part #	Product	Price	Quantity
	KACX6527	FORK ASSY 35MM USD 08*	$906.35
1	KCC60004	FORK BUSHING TOP 35MM - MARZ*	$26.57
2&3	KKC60002	FORK SEAL & SWIPER KIT - MARZ35 - SKF*	$49.94
4	KCC60011	FORK CLIP RING*	$4.32
5	KCC60012	BLEED SCREW WITH SEAL*	$0.00	Back Order
6	ZCMUOR16	OBSOLETE-O-RING 028 9452K115 BUNA-N*	$3.87
7	KCC60005	FORK BUSHING BOTTOM 35MM - MARZ*	$18.78
8	KCC60006	FORK PISTON SEAL CX65*	$10.99
9	KCC60009	BASE VALVE BODY*	$0.00	Back Order
10	KCC60008	FORK WASHER - BOTTOM SEAL*	$2.20
11	KCC60007	FORK CAP COMPRESSION ADJ CX65*	$125.61
12	KCC60026	FORK SPRING .26KG/MM (SINGLE)*	$43.26
12	KCC60024	FORK SPRING .24 KG/MM (SINGLE)*	$43.26
12	KCC60028	FORK SPRING .28KG/MM (SINGLE)*	$43.26
13	KCC60014	GUARD - FORK - SET CX65 - 2009 - 2021*	$29.91
14	HCBC0601	M6 X 16 SHCS ZINC	$1.09
15	TCC60019	WASHER - CHAIN SLIDER AND FORK GUARD	$2.76
16	BCC60015	BRAKELINE CLAMP	$5.54
17	HCNS0601	M6 NUT DIN 934 CLASS 8 ZINC CLEAR*	$0.53
18	HCBC0612	M6 X 12 SHCS ZINC	$1.09
19	KCC60023	RING CLIP - FORK OUTER WEAR*	$5.43
