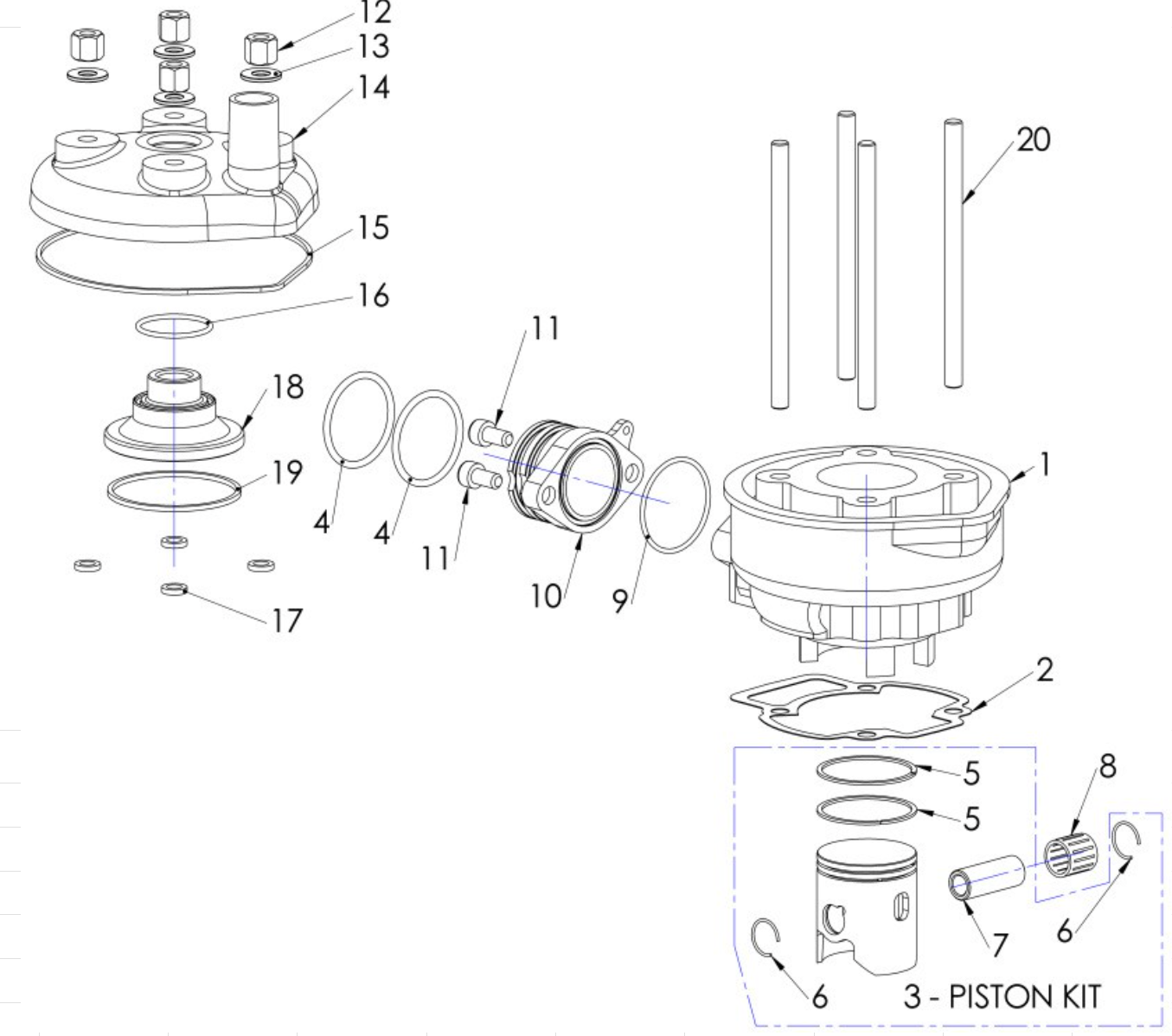

Cobra 50SR (King) 2016 Parts – Engine – Top End

Ref #	Part #	Product	Price
1	ECCS0016	CYLINDER KIT KING 2011-2016	$477.26
2	ZCMU0011	Obosolete - GASKET-BASE 50CC - 0.010`` thk	$8.77
2	ZCMU0703	GASKET - BASE 0.3MM	$8.77
2	ZCKG0501	GASKET - BASE 0.4MM	$8.77
2	ZCMU0705	GASKET - BASE 0.5MM	$8.77
2	ZCMU0706	GASKET - BASE 0.6MM	$8.77
2	ZCMU0708	GASKET - BASE 0.8MM	$8.77
3	ECMU0060A	PISTON KIT-39MM BRIDGED A	$104.47
3	ECMU0060B	PISTON KIT-39MM BRIDGED B	$104.47
3	ECMU0060C	PISTON KIT-39MM BRIDGED C	$104.47
3	ECMU0060D	PISTON KIT-39MM BRIDGED D	$104.47
4	ZCMOTE11	O-RING - EXHAUST FLANGE	$3.20
5	ECMU0155	RING SET 39MM 50CC	$32.14
6	ECMUSR00	CIRCLIP - PAIR - 39MM PISTON	$4.43
7	ECKG0012	WRIST PIN - 50CC	$17.22
8	ECMU0077	BEARING - WRIST PIN FOR 50CC	$16.67
9	ZCMUOR07	O-RING - EXHAUST FLANGE TO CYL & 65 WATER PUMP	$4.43
10	ECMU0086	EXHAUST FLANGE - 27MM	$42.82
11	HCBC0612	M6 X 12 SHCS ZINC	$1.09
12	HCNS0703	7MM NUT - TALL 4 CYLINDER STUD	$3.32
13	HCWS1401	1/4`` WASHER FLAT HARDENED CYLHD	$1.09
14	ECMU0530	CYLINDER HEAD - OUTER - 05-16	$99.02
15	ZCMUOR02	O-RING-GASKET LARGE COBRA ENG	$9.43
16	ZCMUV024	O-RING - CYLINDER INSERT-SMALL-05	$2.54
17	ZCMUOR10	O-RING - CYLINDER STUD - VITON - 05-16 50CC	$1.64
18	ECCS0017	CYLINDER HEAD INSERT	$88.89
19	ZCMUOR05	O-RING - HEAD - MEDIUM 50CC	$8.88
20	ECMU0147	STUD CYLINDER 7MM	$10.99
ACCESSORY	ZKMUOR11	ORING KIT 2011 2-PIECE HEAD	$22.12
ACCESSORY	ZKCSTE11	GASKET KIT - TOP END - 50CC	$31.20
