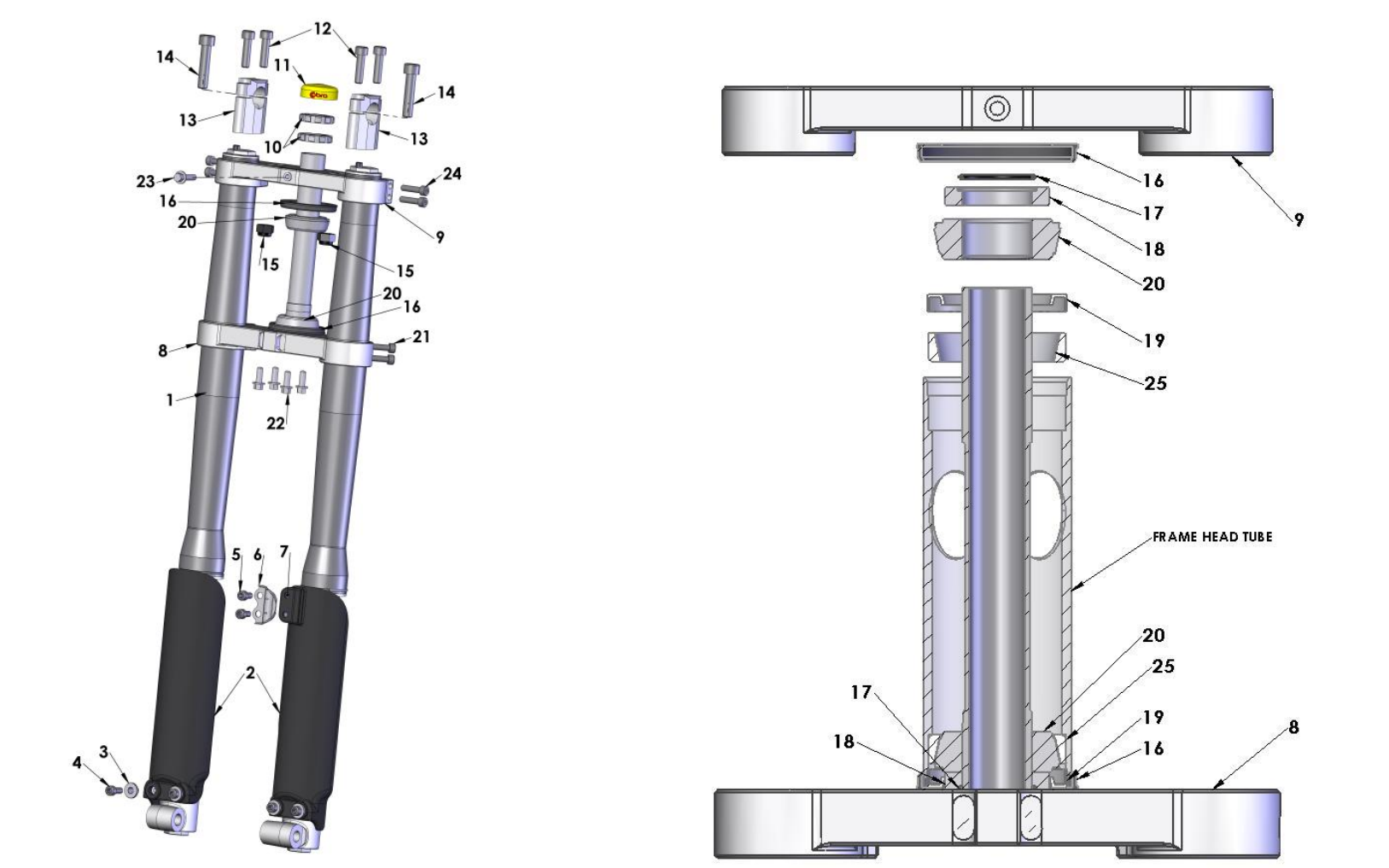

Cobra 50SR (King) 2013 Parts – Forks & Triple Clamps

Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.

Ref #	Part #	Product	Price	Quantity
1	KACS2012	FORK SET COMPLETE KING 2012*	$804.42
2	KCMU0011	GUARD - FORK - SET 50CC (NO HARDWARE)*	$29.91
3	HCBC0601	M6 X 16 SHCS ZINC*	$1.09
4	TCC60019	WASHER - CHAIN SLIDER AND FORK GUARD	$2.76
5	BCC60015	BRAKELINE CLAMP*	$5.54
6	HCBC0612	M6 X 12 SHCS ZINC*	$1.09
7	HCNL0601	M6 LOCKNUT*	$1.09
8	FACS0006	TRIPLE CLAMP BOTTOM ASSY KING 2012*	$193.49
9	FCCS0045	TRIPLE CLAMP TOP KING 2010*	$143.42
10	HCNJ0102	JAM NUT STEERING STEM*	$14.33
11	FCMU0151	STEERING STEM CAP	$5.54
12	HCBC0806	M8 X 30 SHCS ZINC*	$1.09
13	TCMU0404	BAR MOUNT KIT, SHORT (2 REQ’D)*	$0.00	Back Order
13A	TCMU0403	BAR MOUNT KIT, TALL (2 REQ’D)*	$0.00	Back Order
14	HCBC1001	10 X 45 SHCS ZINC WHEN OUT, USE HCBC1040	$2.98
15	HCNL1001	M10 LOCKNUT-1.5 THREAD PITCH	$1.64
16	FCMU1103	R/B FCMU0079 - DUST COVER STEER STEM, RUBBER*	$9.43
17	SCMU0036	R/B ZCMUOR35 - O-RING - 25.1X1.6BUNA-N*	$2.20
18	FCMU0023	SPACER STEERING STEM SD	$8.77
19	FCMU0024	SEAL - STEERING STEM - 6MM THK*	$18.78
20	FCMU0004	BEARING - STEERING TAPERED	$16.56
21	HCBC0603	M6 X 30 SHCS ZINC*	$1.09
22	HCBF0616	M6 X 16 FLANGED HD HEX 8MM ZINC*	$1.09
23	HCBF0612	R/B HCBF1612 - 6 X 12 FLANGED HD HEX 8MM ZINC*	$1.09
24	HCBC0625	M6 X 25 SHCS ZINC*	$1.09
25	FCMU0011	RACE FOR STEERING HEAD*	$8.77
