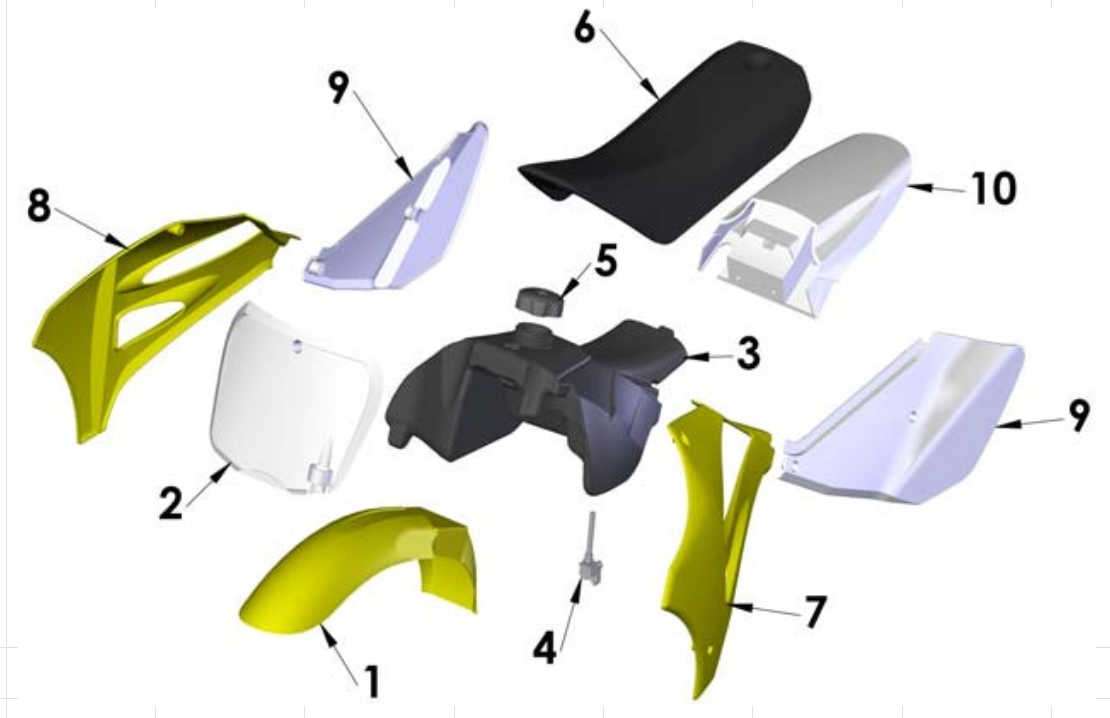

2012 Cobra 50SR (King) Parts – Plastic Bodywork & Seat

Ref #	Part #	Product	Price	Quantity
1	TCMU0016B	R/B TCHA0107B - FENDER - FRONT BLACK DRILLED - KING	$32.14
1	TCMU0016W	R/B TCHA0107W - FENDER - FRONT WHITE DRILLED - KING	$32.14
1A	HCBF0616	M6 X 16 FLANGED HD HEX 8MM ZINC'	$1.09	Back Order
2	TCC60002W	NUMBER PLATE FRONT- WHITE	$19.45
2	TCC60002B	NUMBER PLATE FRONT- BLACK	$19.45
2	TCC60002	NUMBER PLATE FRONT - YELLOW	$19.45
2A	HCBF0612	R/B HCBF1612 - 6 X 12 FLANGED HD HEX 8MM ZINC	$1.09
3	TCC60024	FUEL TANK - CX65/KING - 2010-2020	$165.67
3A	HCBC0503	R/B HCBC0530 - M5 X 30 SHCS ZINC	$1.09
3B	TCC60027	BUSHING TANK MOUNT - 5MM	$7.65

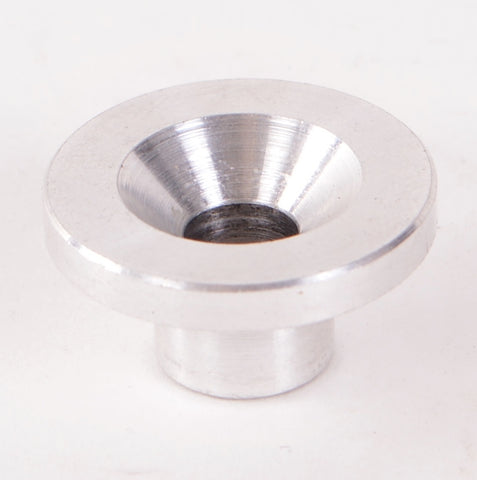

3C	TCC60029	SPACER - SEAT MOUNT	$14.33

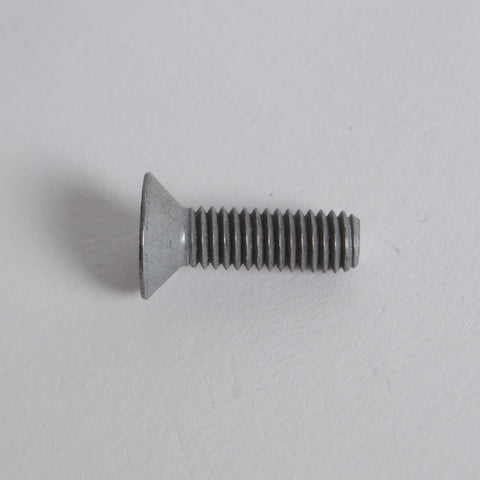

3D	HCFH0620	M6 X 20 FLAT HEAD W ZINC	$1.09
4	TCMU0151	PETCOCK - FUEL - NO RESERVE	$20.01
5	TCHA0002	CAP - FUEL TANK- 65/KING/JR/P3	$22.12
5A	TCHA0003	HOSE FUEL TANK CAP - 65/KING/JR/P3	$2.76
6	TACS0001	OBSOLETE - SEAT ASSEMBLY 2010-NEWER KING CX50	$143.42

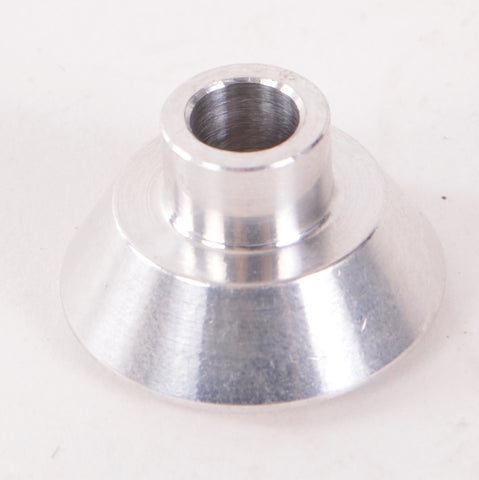

6A	TCC60018	SEAT MOUNT SPACER REAR 65/50	$13.33
6B	HCBC0625	M6 X 25 SHCS ZINC	$1.09
7	TCC60022BLK	SHROUD LEFT BLACK CX65/KING	$32.14
7	TCC60022WHT	SHROUD LEFT WHITE CX65/KING	$32.14

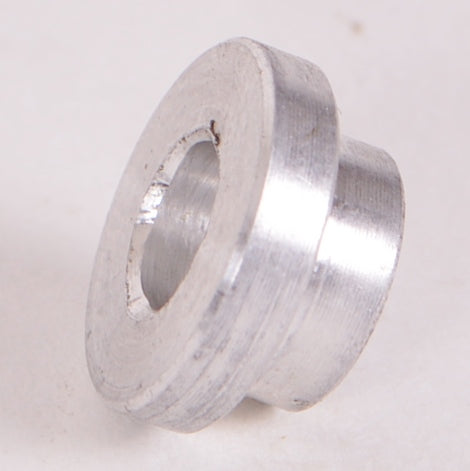

7A	TCC60017	WASHER - 5MM BODY PANEL	$4.32
7B	HCBC0514	M5 X 14 SHCS ZINC	$1.09
7C	HCCN0000	5MM EXTRUDED ``U`` NUT	$2.09
8	TCC60023	SHROUD RIGHT YELLOW CX65/KING	$25.46
8	TCC60023BLK	SHROUD RIGHT BLACK CX65/KING	$32.14
8	TCC60023WHT	SHROUD RIGHT WHITE CX65/KING	$32.14
9	TCCS0001WHT	NUMBER PLATES SIDE (SET) - WHITE KING	$41.15
9	TCCS0001BLK	NUMBER PLATES SIDE (SET) -BLACK KING	$41.15
10	TCCS0005WHT	FENDER - REAR KING WHITE	$32.80
10	TCCS0005BLK	FENDER - REAR KING BLACK	$32.80
10A	HCSP0003	SCREW - PLASCREW,	$0.98	Back Order
10C	HCWP0002	WASHER ID5MM THICK	$0.31
10D	HCHA0003	6MM CLIP NUT-PLASTIC/PIPE MNT.'	$2.20
ACCESSORY	TCMU2012	GRAPHIC KIT 2012 ALL BIKES	$15.44
ACCESSORY	TKCS0001B	BODYWORK KIT - 2010 - 2018 - KING - BLACK	$143.42
ACCESSORY	TKCS0001W	BODYWORK KIT - 2010 - 2018 - KING - WHITE	$143.42
ACCESSORY	TKCS0001Y	OBSOLETE - BODYWORK KIT - 2010 - 2018 - KING - YELLOW	$143.42
