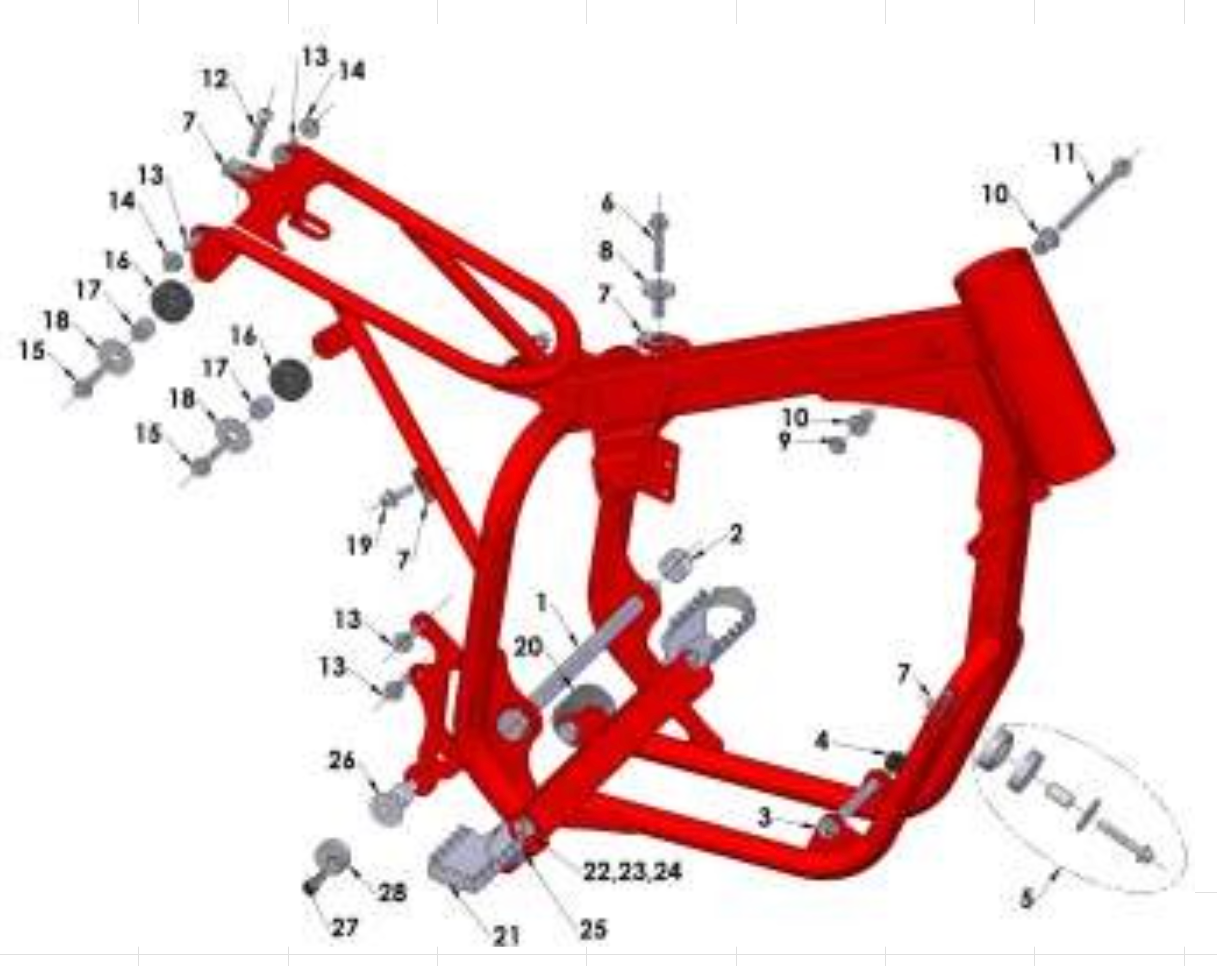

Cobra 50JR 2013 Parts – Frame – Mounting Hardware I

Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.

Ref #	Part #	Product	Price	Quantity
1	WCMU0016	M12 X 195MM AXLE / PIVOT BOLT*	$32.14
2	HCNL1201	M12-1.25 LOCKNUT FINE THREAD*	$3.20
3	HCBH0880	M8 X 80 HH ZINC*	$6.66
4	HCNL0801	R/B HCNL0803 - M8 LOCKNUT CLEAR ZINC 10MM TALL*	$1.09
5	MCMUGR02	GROMMET KIT PIPE & SPACER*	$9.88
6	HCBF0635	M6 X 35 FLANGE HD HEX 8MM ZINC 8.8*	$1.09
7	HCHA0003	6MM CLIP NUT-PLASTIC/PIPE MNT.*	$2.20
8	TCHA0004	BUSHING-REAR TANK MOUNTING	$9.88
9	HCNL0601	M6 LOCKNUT*	$1.09
10	TCHA0006	BUSHING-MOUNTING*	$7.65
11	HCBF0685	M6X85mm SOCKET HEAD CAP SCREW*	$0.00	Back Order
12	HCBB0635	M6 X 35 BUTTON HEAD ZINC*	$1.09
13	HCBF0620	M6 X 20 FLANGE HD HEX 8MM ZINC 8.8*	$1.09
14	HCNF0602	6MM NYLOC FLANGE NUT CLASS 10	$1.09
15	HCBF0625	M6 X 25 FLANGED HD HEX 8MM ZINC	$1.09
16	MCMUGR03	GROMMET FOR SILENCER & UPPER KING RADIATOR MOUNT*	$4.98
17	TCKG0001	SPACER GENERAL 1/2DIA 13.2 LG	$2.76
18	HCWF1478	1/4`` FLAT WASHER 7/8`` OD*	$0.53
19	HCBF0616	M6 X 16 FLANGED HD HEX 8MM ZINC*	$1.09
20	FCC60020	CHAIN ROLLER W BOLT BEARING & SEALS*	$18.34
21	TCMU0010	FOOTPEGS - PAIR KING*	$44.38
22	HCBH0840	M8 X 40 HH 30MM NO THRD ZINC FOOTPEG BOLT*	$2.09
23	HCNL0802	R/B HCNL0802 - M8 LOCKNUT CLEAR ZINC 10MM TALL	$1.09
24	HCWF0803	R/B HCWF0801 - 8MM FLAT WASHER CLEAR ZINC*	$0.53
25	TCMU0107	FOOTPEG SPRINGS (SINGLE PIECE) (2 REQ’D)*	$0.00	Back Order
26	BCDC0009	BRAKE PEDAL PIVOT BOLT*	$17.67
27	HCBC0601	M6 X 16 SHCS ZINC*	$1.09
28	FCEX0018	BRAKE ADJUST ECCENTRIC	$13.22
