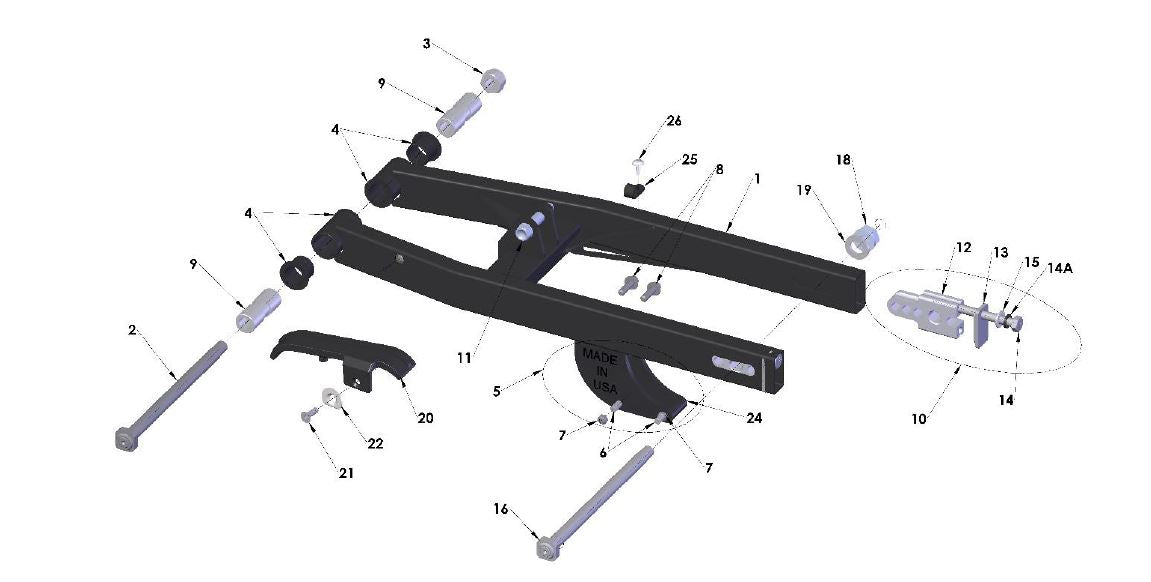

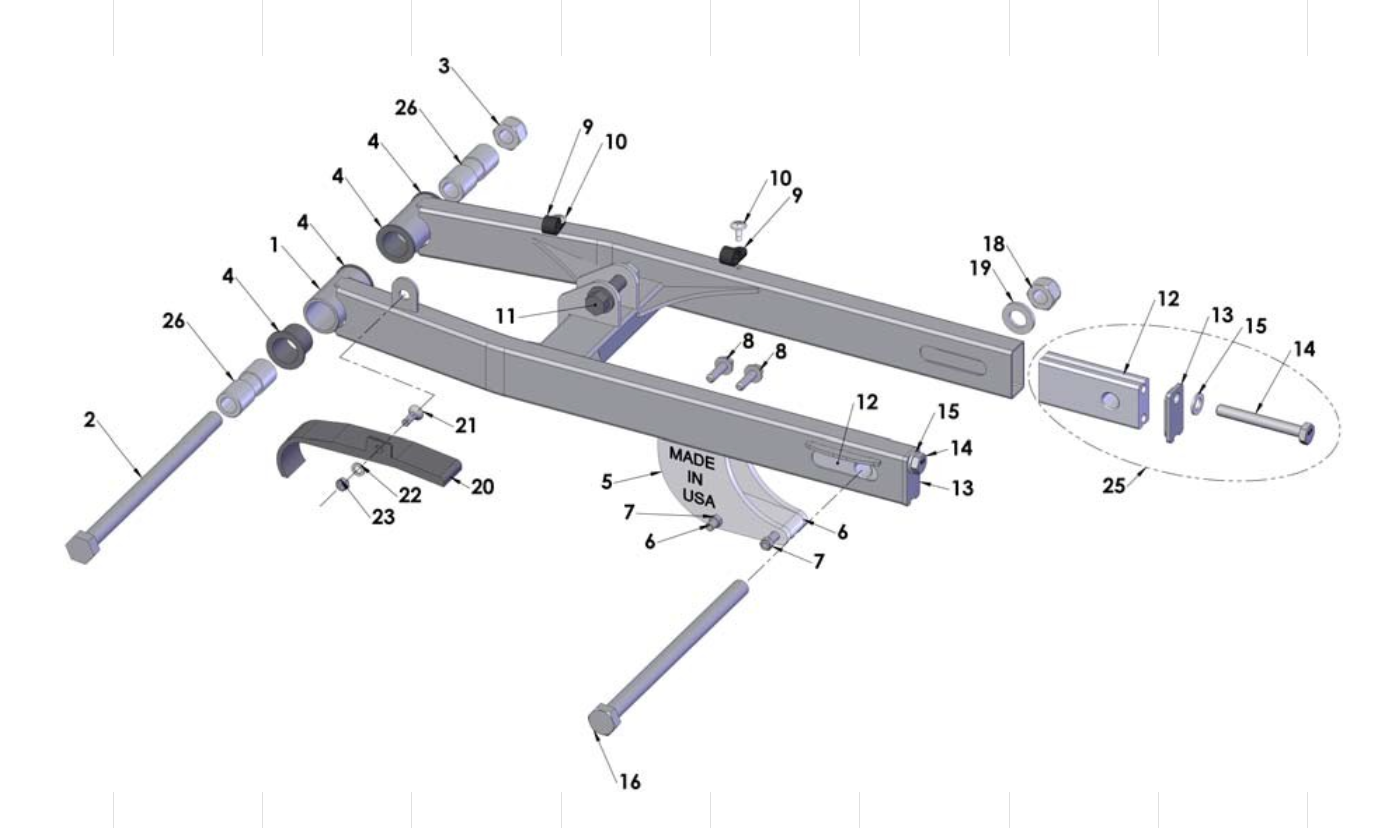

Cobra 50 Big Wheel 2012 Parts – Swingarm Assembly

Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.

Ref #	Part #	Product	Price	Quantity
1	GACSBW10	SWINGARM WELDED ASSY EXTENDED FWE*	$265.82

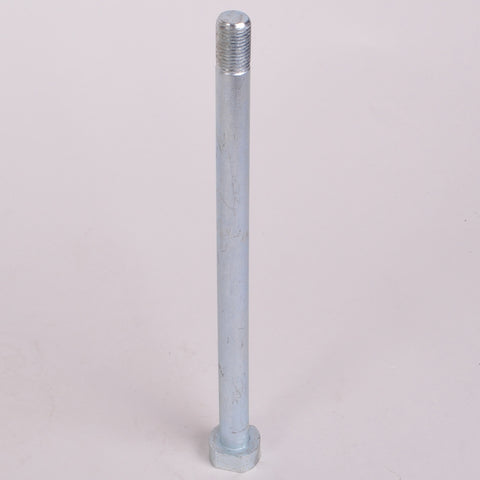

2	HCBH1203	M12 X 188.5 PIVOT BOLT*	$32.14

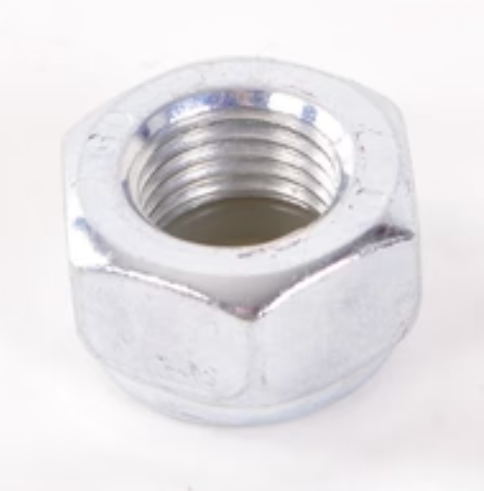

3	HCNL1201	M12-1.25 LOCKNUT FINE THREAD*	$3.20

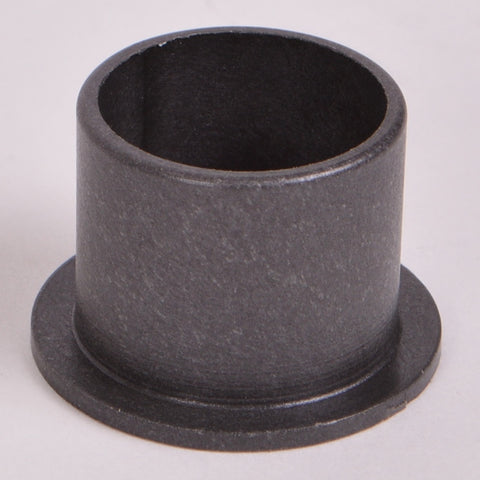

4	GCMU0001	SWINGARM BUSHING 1-INDIVIDUAL*	$10.55

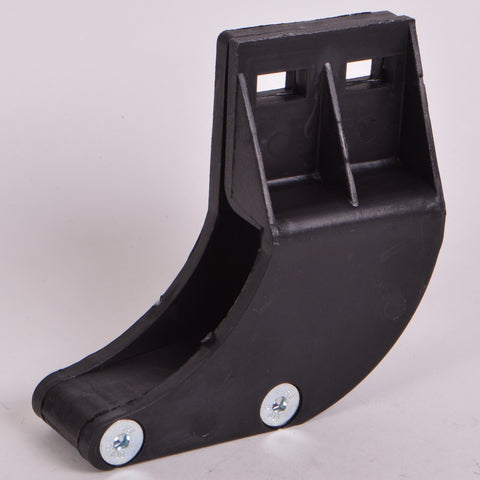

5	PAKG0001	CHAIN BLOCK ASSY*	$30.02
6	HCBFT640	R/B HCBFT635 M6 X 40 FLAT HEAD	$1.09
7	HCNL0601	M6 LOCKNUT*	$1.09
8	HCBF0620	M6 X 20 FLANGE HD HEX 8MM ZINC 8.8*	$1.09
9A	HCCC0000	CABLE CLAMP-3/8 INCH*	$1.09
9B	HCCC0006	CABLE CLAMP-7/16 INCH BLACK	$1.09
10	HCPP0832	#8X1/2 SELF TAPPING SCREW*	$1.09
11	HCBF1040	R/B HCBF1039 M10 X 44 FLANGE HEAD ENGINERED FASTENER*	$7.65
12	FCMU0203	WHEEL PULL*	$24.35

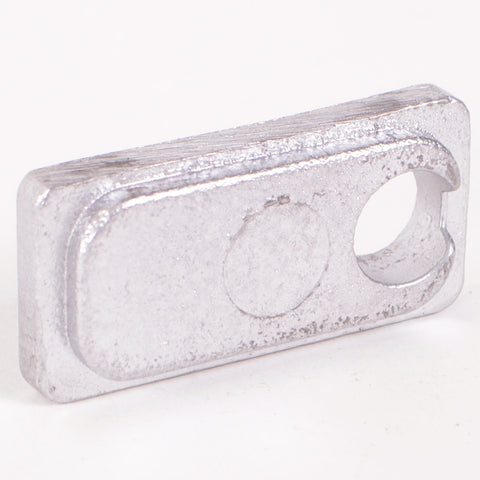

13	FCMU0202	ENDCAP - WHEEL PULL - KING & CM*	$8.77

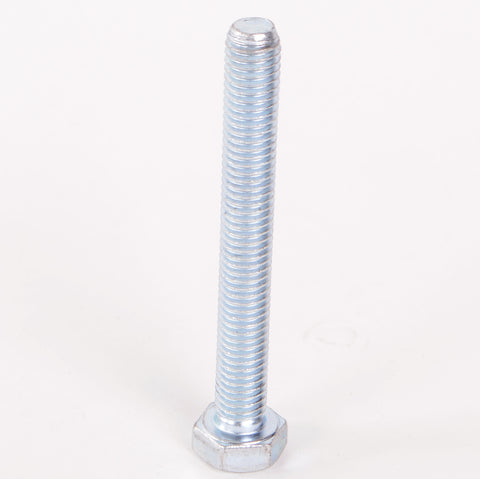

14	HCBH0810	M8 X 65 HH FULL THREADS ZINC*	$1.54
15	HCWF0801	R/B HCWF0802 8MM FLAT WASHER*	$0.53
16	WCMU0016	M12 X 195MM AXLE / PIVOT BOLT*	$32.14
18	HCNL1201	M12-1.25 LOCKNUT FINE THREAD'*	$3.20	Back Order
19	HCWF1202	12MM FLAT WASHER*	$0.53
20	GCMU0017	TOP SWINGARM GUARD - 50CC - PRE 2017*	$16.56

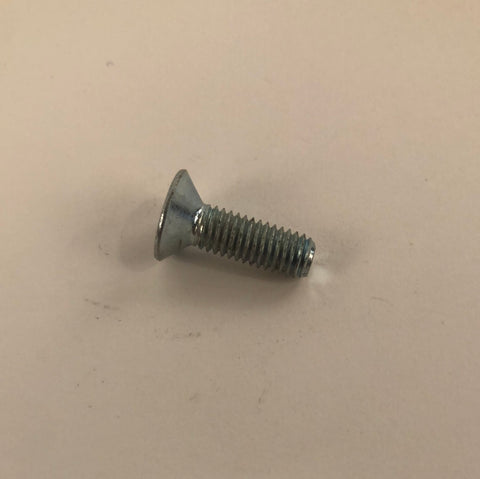

21	HCFH0516	M5 X 16 FLAT HEAD*	$1.09
22	HCWF0501	5MM FLAT WASHER*	$0.53
23	HCNL0501	M5 LOCKNUT	$1.09

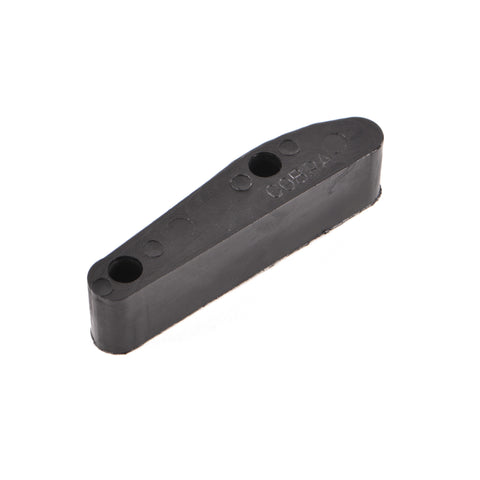

24	PCKG0004	CHAIN GUIDE - SLIDER BOTTOM*	$10.99
25	FAMU0005	WHEEL PULL ASSEMBLY*	$32.25

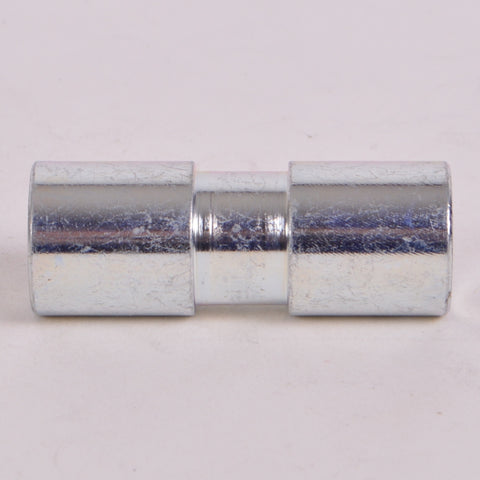

26	GCCS0001	SPACER - SWNGARM PIVOT TUBE KG 10-16 / ALL 50cc 2017- LATER*	$13.67
