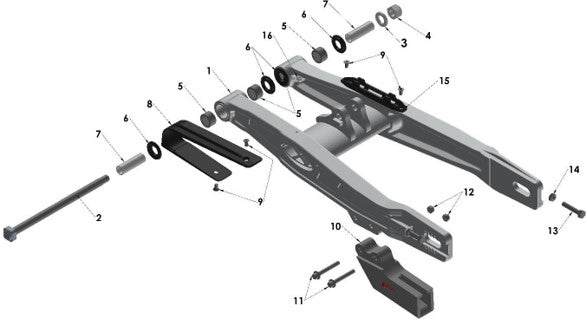

2025 CX65 Parts – Swingarm Assembly
Add to Cart
Add to Cart
Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.
| Ref # | Part # | Image | Product | Price | Quantity |
|---|---|---|---|---|---|
| 1 | GAC62025 | |
SWINGARM - NEEDLE BEARING - CX65 - FORGED ARMS - 2025* | $595.88 | |
| 2 | GCC60020 | |
BOLT - TITANIUM - SWINGARM PIVOT - CX65* | $143.42 | |
| 3 | HCWF1202 |  |

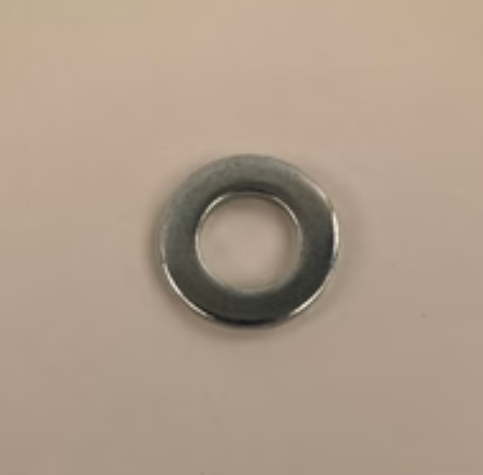

12MM FLAT WASHER' | $0.53 | |
| 4 | HCNL1201 |  |
M12-1.25 LOCKNUT FINE THREAD' | $3.20 | |
| 5 | GCC60017 | |
BEARING - DRAWN CUP CAGED NEEDLE - SWINGARM PIVOT - 15 22 12* | $18.78 | |
| 6 | GCMU0047M | |
SEAL THRUST BEARING - SWINGARM - ALL 2025* | $9.88 | |
| 7 | GCC60019 | |
SPACER TUBE - SWINGARM PIVOT* | $28.80 | |
| 8 | PCC60006 | |
SWING ARM GUARD - FRONT - 2025 CX65* | $25.57 | |
| 9 | HCFH0516 |  |
M5 X 16 FLAT HEAD | $1.09 | |
| 10 | PCC60004 | |
CHAIN GUIDE (BOTTOM) CX65* | $25.57 | |
| 11 | HCBC0645 | |
M6 X 45 SHCS ZINC* | $1.09 | |
| 12 | HCNF0602 |  |
6MM NYLOC FLANGE NUT CLASS 10´ | $1.09 | |
| 13 | HCBH0701 | |
M7 X 35 HH ZINC | $1.09 | |
| 14 | HCNS0701 | |
7MM NUT* | $0.64 | |
| 15 | GCC60051M | |
GUIDE - BRAKE HOSE - CX65 2025 - PRINTED* | $19.88 | |
| 16 | GCMU0012 | |
GREASE FITTING SMALL - ZERK | $1.73 |
