2025 CX65 Parts – Engine – Top End

2025 CX65 Parts – Engine – Top End
Add to Cart

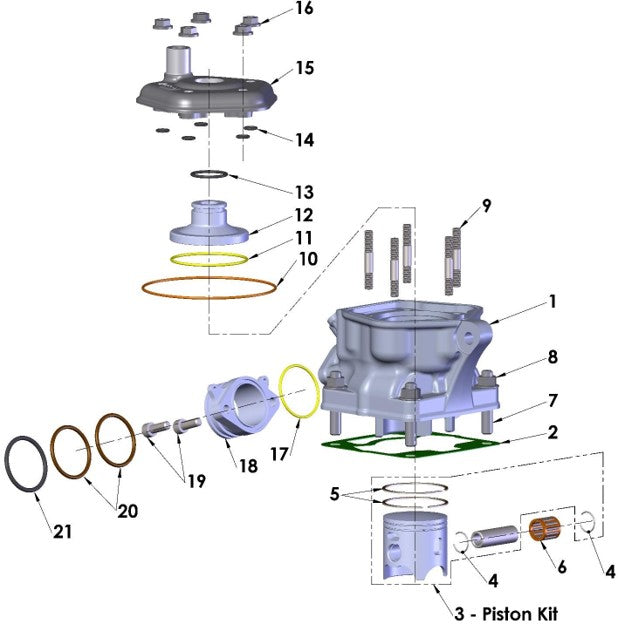

Ref # Part # Image Product Price Quantity
1 ECC60558 CYLINDER KIT - CX65 - 2024 $644.18
2 ZCC62402 GASKET - 0.2MM - CYLINDER BASE - CX65 $12.11
2 ZCC62403 GASKET - 0.3MM - CYLINDER BASE - CX65 $12.11
2 ZCC62404 GASKET - 0.4MM - CYLINDER BASE - CX65 $12.11
2 ZCC62405 GASKET - 0.5MM - CYLINDER BASE - CX65 $12.11
2 ZCC62406 GASKET - 0.6MM - CYLINDER BASE - CX65 $12.11
2 ZCC62407 IF 0.7MM GASKET IS NEEDED USE ZCC62403 AND ZCC62404 TOGETHER $12.11
2 ZCC62408 GASKET - 0.8MM - CYLINDER BASE - CX65 $14.33
3 ECC60208A PISTON KIT 65 44.5MM BORE SIZE A- NON BRIDGED $110.03
3 ECC60208B PISTON KIT 65 44.5MM BORE SIZE B- NON BRIDGED $110.03
3 ECC60208C PISTON KIT 65 44.5MM BORE SIZE C- NON BRIDGED $110.03
ECC60208WP WRIST PIN - PISTON - CAST 44.5MM 65 $18.88
4 ECC60222 CIRCLIP - PAIR - CAST PISTON - 44.5MM $4.43
5 ECC60221 RINGS - FOR CAST PISTON - 44.5 $32.14
6 ECDC0061 BEARING - WRISTPIN 65CC $14.11
7 ECC60109 STUD - CYLINDER 8MM X 44.5MM $7.21
8 HCNF0801 8MM FLANGE NUT-ZINC - CLASS 10 - NO SERRATIONS $1.09
9 ECC60107 STUD - CYLINDER HEAD 6MM X 41MM $5.43
10 ZCC60009 O-RING - CYL HEAD LARGE - 65CC & VENOM $7.65
11 ZCMUOR05 O-RING - HEAD - MEDIUM 50CC $8.88
12 ECC60207 CYLINDER HEAD INSERT - 2015 & LATER $105.58
13 ZCMUOR23 ORING - HEAD INSERT - VITON $4.98
14 ZCMUOR03 O-RING 6.07X1.78 SILICONE $1.09
15 ECC60149 CYLINDER HEAD OUTER - 65CC & VENOM $98.90
16 HCNF0601 6MM FLANGE NUT-ZINC - CLASS 10 $0.64
17 ZCMUOR07 O-RING - EXHAUST FLANGE TO CYL & 65 WATER PUMP $4.43
18 ECMU0262 FLANGE - EXHAUST CX50 VENOM $49.94
19 HCBC0612 M6 X 12 SHCS ZINC $1.09
20 ZCMOTE11 O-RING - EXHAUST FLANGE $3.20
21 ZCMUOR11 O`RING - EXHAUST PIPE CUSHION - CX65 $2.54
NOT SHOWN ZKMUOR14 ORING KIT - TOP END - FANG VALVE 65 $16.81
NOT SHOWN ZKC62024 GASKET KIT COMPLETE - CX65 PV 2024 $86.68
NOT SHOWN EAC62024 ENGINE - 2024 CX65 PV $2,920.88
