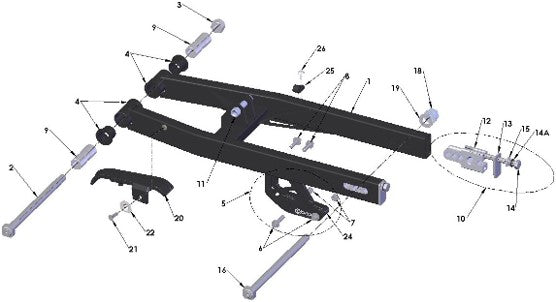

2025 CX5E Parts – Swingarm Assembly

Ref #	Part #	Product	Price	Quantity
1	GACS2021	SWINGARM WELDED ASSY- 2021 KING	$205.73
2	GCMU0021	BOLT - TITANIUM - SWINGARM PIVOT - 2021 CX50 SHORTER	$143.42
3	HCNL1201	M12-1.25 LOCKNUT FINE THREAD'	$3.20
4	GCMU0001	SWINGARM BUSHING 1-INDIVIDUAL	$10.55
5	PAMU0001	CHAIN GUIDE ASSY - 50s AND MICRO e	$49.98
5a	PCCEMU001	ROLLER - BOTTOM CHAIN GUIDE	$8.98
5b	PCCEMU002	SHAFT - BOTTOM CHAIN ROLLER	$6.48
6	HCBF0625	M6 X 25 FLANGED HD HEX 8MM ZINC	$1.09
7	HCNL0601	M6 LOCKNUT	$1.09
8	HCBF0620	M6 X 20 FLANGE HD HEX 8MM ZINC 8.8´	$1.09	Back Order
9	GCCS0015	SPACER -SWINGARM PIVOT TUBE - 2021 KING	$13.67
10	FAMU0005	WHEEL PULL ASSEMBLY	$32.25
11	HCBF1039	M10 X 39 FLANGE HEAD - SHOCK BOLT	$12.11
12	FCMU0203	WHEEL PULL	$24.35
13	FCMU0202	ENDCAP - WHEEL PULL - KING & CM	$8.77
14	HCBH1865	M8 X 65 HH FULL THREADS ZINC	$1.54
14A	HCWL0801	8MM LOCK WASHER STANDARD	$0.53
15	HCWF0801	R/B HCWF0802 8MM FLAT WASHER'	$0.53	Back Order
16	GCMU0020	BOLT - TITANIUM - SWINGARM PIVOT and AXLE - CX50	$143.42
18	WCMU0038	NUT - 12MM ACORN - ALUM	$20.79
19	HCWF1202	12MM FLAT WASHER'	$0.53
20	GCMU0041	SWINGARM CHAIN GUARD - CX50 - WITH MOHAWK AND FOOT	$16.56
21	HCFH0516	M5 X 16 FLAT HEAD	$1.09
22	GCMU0038	WASHER - RETAINING - SWINGARM GUARD	$4.32
23	HCNL0501	M5 LOCKNUT	$1.09
24	PCMU0060MP	CHAIN GUIDE - COMBINED SLIDER BOTTOM AND INSIDE	$10.99
25	HCCC0006	CABLE CLAMP-7/16 INCH BLACK	$1.09
26	HCPP0832	#8X1/2 SELF TAPPING SCREW	$1.09
