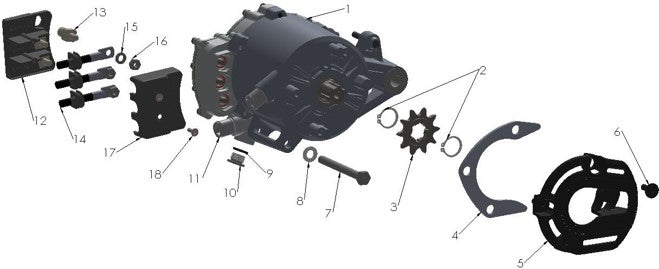

2025 CX5E Parts – Motor System – Sprocket Side

Ref #	Part #	Product	Price	Quantity
1	JACEMU002	MOTOR ASSEMBLY - COBRA - SMALL VEHICLE - 2024 - 12mm SHAFT	$2,500.00
2	ECKGSR03	SNAP RING-OUTPUT- ext 20mm - FOR OUTPUT SHAFT	$2.54
3	PCMU0010	SPROCKET - FRONT - 10T - 415 CHAIN	$22.12
4	JCCEMU005	CASE SAVER - ELECTRIC MOTOR	$22.88
5	JCCEMU023	SPROCKET GUARD - CASE SAVER - 2025	$24.88
6	HCSP0610BLK	BOLT - SHOULDER - 6MM ALUMINUM - BLACK	$3.20
7	HCBH0880	M8 X 80 HH ZINC	$6.66
8	HCWF0801	R/B HCWF0802 8MM FLAT WASHER'	$0.53	Back Order
9	ZCMUB014	O-RING - KICK SHAFT & OIL FILL PLUG.	$1.42	Back Order
10	ECMU0272	Anodized Oil Fill Plugs	$12.18
11	ECMU0132	FITTING-COOLANT	$27.68
12	JCCE50036	SPACER - INSULATING - PHASE LEAD	$16.00
13	JCCE50035	STUD - PHASE - RING LUG STYLE	$18.98
15	HCWF0601	M6 FLAT WASHER DIN 125A ZINC CLEAR	$0.53
16	HCNS0601	M6 NUT DIN 934 CLASS 8 ZINC CLEAR	$0.53
17	JCCE50044	CAP - SPACER - INSULATING - PHASE LEAD	$14.00
18	HCFH0412	M4 X 12 - FLAT HEAD - ZINC	$2.20
ACCY	MCMUMF32	ELECTRIC MOTOR FLUID - 32 OZ BOTTLE	$28.88
