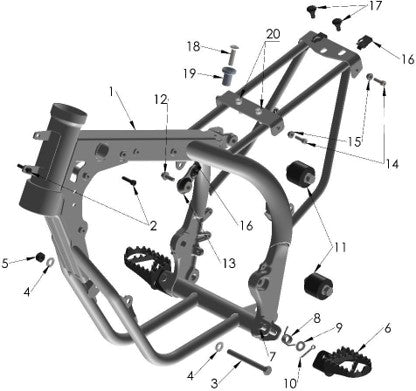

2025 CX50JR Parts – Frame – Mounting Hardware I

Ref #	Part #	Product	Price	Quantity
1	FACJ2025	FRAME - JR/P3 2024 - NEW BODY STYLE	$641.96
2	HCBC0502	R/B HCBC0520 - M5 x 0.8 - 20 - SHCS - DIN 912 - ISO 4762,	$1.09
3	HCBH0880	M8 X 80 HH ZINC	$6.66
4 and 9	HCWF0802	8MM FLAT WASHER - DIN - YELLOW ZINC - HARDENED 15.6mm O.D.	$0.53
5	HCNL0801	R/B HCNL0803 - M8 LOCKNUT CLEAR ZINC 10MM TALL'	$1.09	Back Order
6	TAMU0005	FOOTPEG SET (LEFT & RIGHT)	$63.41
7	FCMU0031	CLEVIS PIN - FOOTPEG	$4.32
8	TCMU0106	SPRING - FOOTPEG STD KING/JR PEG	$5.43
10	HCCP0008	COTTERPIN - 1/8` X 3/4` 316 STAINLESS	$0.53
11	FCC60020	CHAIN ROLLER W BOLT BEARING & SEALS	$18.34
12	HCBF0616	M6 X 16 FLANGED HD HEX 8MM ZINC	$1.09
13	XCMU0033	ISOLATION MOUNT	$18.34
14	HCBC0516	M5 X 16 SHCS ZINC	$1.09
15	TCC60017	WASHER - 5MM BODY PANEL'	$4.32
16	HCHA0003	6MM CLIP NUT-PLASTIC/PIPE MNT.'	$2.20
17	HCSP0610	BOLT - SHOULDER - 6MM ALUMINUM - ANODIZED CLEAR	$3.20
18	HCSP0701	7MM SPROCKET BOLT - 2018	$2.76
19	TCMU0068	BUSHING – REAR TANK MOUNTING	$0.00
20	HCBC0620	M6 X 20 SHCS ZINC	$1.09
