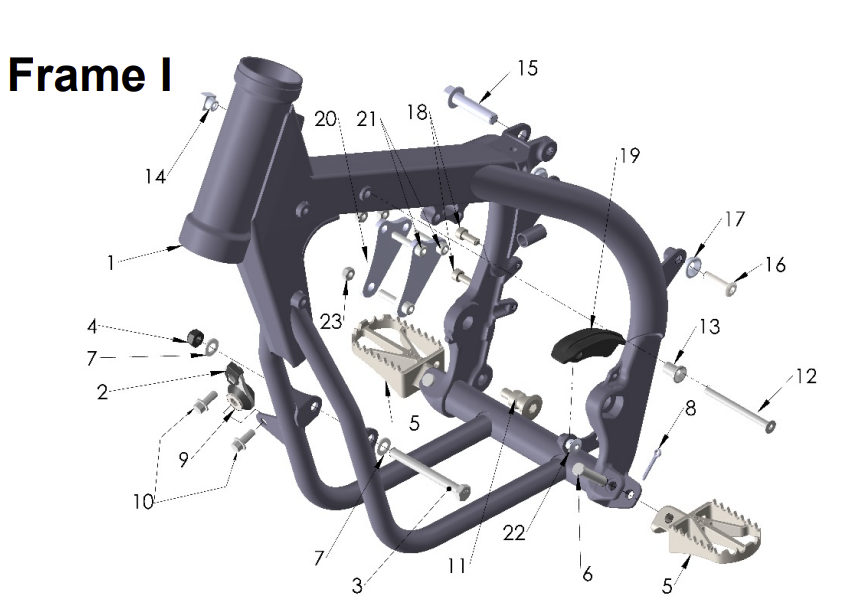

2025 CX50FWE Parts – Frame I

2025 CX50FWE Parts – Frame I
Add to Cart
Ref # Part # Image Product Price Quantity
1 FACS2024 FRAME - 2024 - CX50 FWE KING VENOM $664.21
2 HCHA0003 6MM CLIP NUT-PLASTIC/PIPE MNT.' $2.20
3 MCMUGR12 GROMMET - RADIATOR MOUNT - 50SR/65 $4.98
4 GCMU0021 BOLT - TITANIUM - SWINGARM PIVOT - 2021 CX50 SHORTER $143.42
5 HCNL1201 M12-1.25 LOCKNUT FINE THREAD' $3.20
3 HCBH0880 M8 X 80 HH ZINC $6.66
4 HCNL0803 M8 LOCKNUT 8MM TALL $2.20
5 TCMU0139 ULTRAWIDE FOOTPEG KIT 50cc / 65cc $77.76
6 FCMU0031 CLEVIS PIN - FOOTPEG $4.32
7 HCWF0802 8MM FLAT WASHER - DIN - YELLOW ZINC - HARDENED 15.6mm O.D. $0.53
8 HCCP0008 COTTERPIN - 1/8` X 3/4` 316 STAINLESS $0.53
9 XCMU0033 ISOLATION MOUNT $18.34
10 HCBF0616 M6 X 16 FLANGED HD HEX 8MM ZINC' $1.09 Back Order
11 BCMU0027 PIVOT BOLT - ALUM BRAKE PEDAL $22.12
15 HCBC0616 M6 X 16 SHCS ZINC $1.09
TCC60019 WASHER - CHAIN SLIDER AND FORK GUARD $2.76
12 HCFH0675 M6 X 75 FLAT HEAD W ZINC $1.09
13 TCMU0047 BUSHING-MOUNTING - FLAT HEAD FASTENER $7.65
14 TCMU0017 BUSHING - TANK MOUNT - SQUARE THREADED NUT $9.88
15 HCBF1040 R/B HCBF1039 M10 X 44 FLANGE HEAD ENGINERED FASTENER $7.65
16 HCSP0701 7MM SPROCKET BOLT - 2018 $2.76
17 FCMU0109 COMPRESSION LIMITER - SUB FRAME - LOWER MOUNT-SR&65 2021 $10.55
22 HCNL0601 M6 LOCKNUT $1.09
23 HCBC0625 M6 X 25 SHCS ZINC $1.09
19 TCMU0044 CHAIN SLIDE - LOWER - 65/KING 2021 $16.56
20 FCCS0075 HEAD STAY - FW DUAL - 2024 $26.23
21 HCBF0630 M6 X 30 FLANGE HD HEX 8MM ZINC $1.09
22 HCSP0610BLK BOLT - SHOULDER - 6MM ALUMINUM - BLACK $3.20
ACCESSORY TCC60012 SPRING - FOOTPEG ULTRA WIDE $5.43
