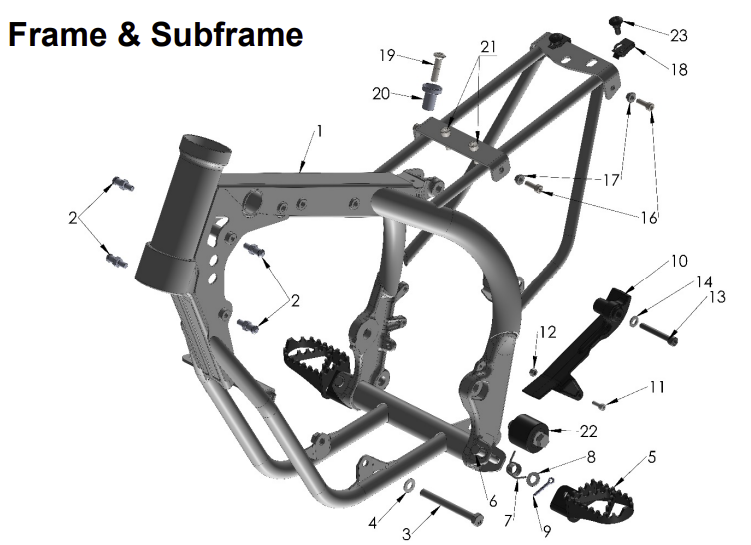

2025 CX3E Parts – Frame & Subframe

Ref #	Part #	Product	Price	Quantity
1	FACE32025	FRAME – CX3E - 2025	$0.00
2	FCCE50015	POST - SIDE LOUVER	$14.88
3	HCBH0880	M8 X 80 HH ZINC	$6.66
4	HCWF0801	R/B HCWF0802 8MM FLAT WASHER'	$0.53	Back Order
5	TCMU0139	ULTRAWIDE FOOTPEG KIT 50cc / 65cc	$77.76
6	FCMU0031	CLEVIS PIN - FOOTPEG	$4.32
7	TCC60012	SPRING - FOOTPEG ULTRA WIDE	$5.43
9	HCCP0008	COTTERPIN - 1/8` X 3/4` 316 STAINLESS	$0.53
10	FCCEMU001	CHAIN SLIDE - MOLDED - UPPER - EMOTO 1.0KW	$15.88
11	HCBC0412	M4 X 12 - SHCS - ZINC	$1.09
12	HCNL0401	4MM LOCK NUT	$1.09
13	HCBC0606	R/B HCBC0645 - M6 X 45 SHCS ZINC	$1.09
14	HCWF0601	M6 FLAT WASHER DIN 125A ZINC CLEAR	$0.53
16	HCBC0516	M5 X 16 SHCS ZINC	$1.09
17	TCC60017	WASHER - 5MM BODY PANEL'	$4.32
18	HCHA0003	6MM CLIP NUT-PLASTIC/PIPE MNT.'	$2.20
19	HCSP0701	7MM SPROCKET BOLT - 2018	$2.76
20	TCMU0068	BUSHING – REAR TANK MOUNTING	$0.00
21	HCBC0620	M6 X 20 SHCS ZINC	$1.09
22	FCC60020	CHAIN ROLLER W BOLT BEARING & SEALS	$18.34
23	HCSP0610	BOLT - SHOULDER - 6MM ALUMINUM - ANODIZED CLEAR	$3.20
