2024 CX65 Parts – Frame – King Cobra of Florida

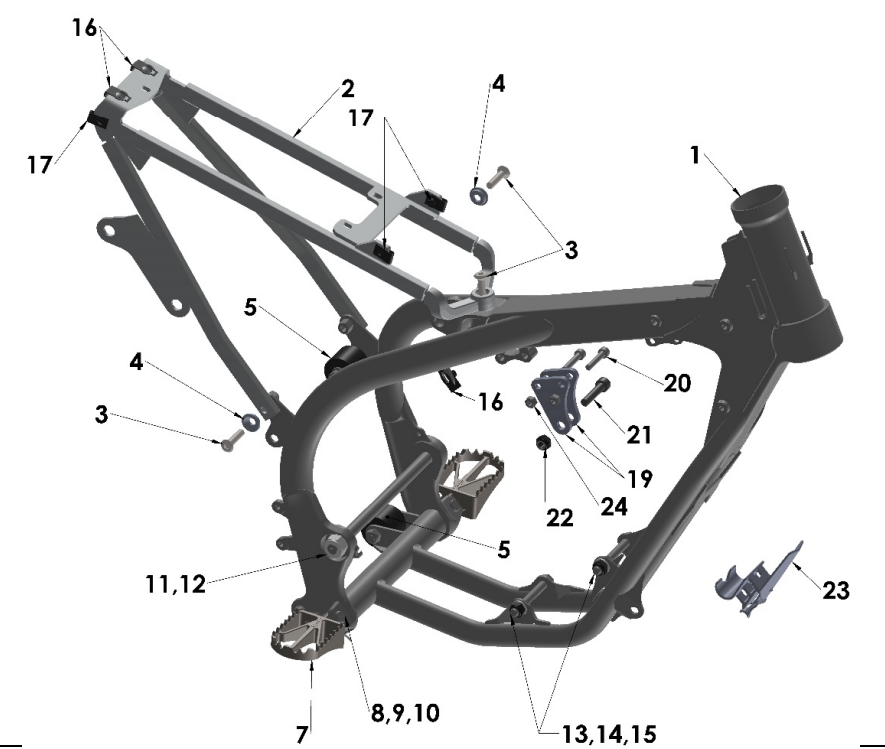

2024 CX65 Parts – Frame

Ref #	Part #	Product	Price
1	FAC62024	FRAME - 2024 CX65	$777.78
2	FAC60027	SUBFRAME CX65 2022	$165.67
3	HCSP0701	7MM SPROCKET BOLT - 2018	$2.76
4	FCMU0109	COMPRESSION LIMITER - SUB FRAME - LOWER MOUNT-SR&65 2021	$10.55
5	FCC60020	CHAIN ROLLER W BOLT BEARING & SEALS	$18.34
6	HCSP0610	BOLT - SHOULDER - 6MM ALUMINUM - ANODIZED CLEAR	$3.20
7	TCMU0139	ULTRAWIDE FOOTPEG KIT 50cc / 65cc	$77.76
8	TCC60012	SPRING - FOOTPEG ULTRA WIDE	$5.43
9	FCMU0031	CLEVIS PIN - FOOTPEG	$4.32
10	HCCP0008	COTTERPIN - 1/8` X 3/4` 316 STAINLESS	$0.53
11	GCC60020	BOLT - TITANIUM - SWINGARM PIVOT - CX65	$143.42
12	HCNL1201	M12-1.25 LOCKNUT FINE THREAD	$3.20
13	HCBH0865	M8 X 65 HH ZINC	$1.54
16	HCHA0003	6MM CLIP NUT-PLASTIC/PIPE MNT	$2.20
17	HCCN0001	5MM CLIP-ON NUT	$2.09
19	FCC60117	HEAD STAY - CX65 2024	$19.88
20	HCBC0603	M6 X 30 SHCS ZINC	$1.09
21	HCBF0835	M8 X 35 FLANGE HEAD HEX 10MM ZINC	$1.88
23	TCC60041	GUARD - PV - FRAME MOUNTED	$34.88
24	HCNL0601	M6 LOCKNUT	$1.09
NOT SHOWN	MCMUZT28	ZIP TIP 8` FRAME MOUNTED	$1.40
