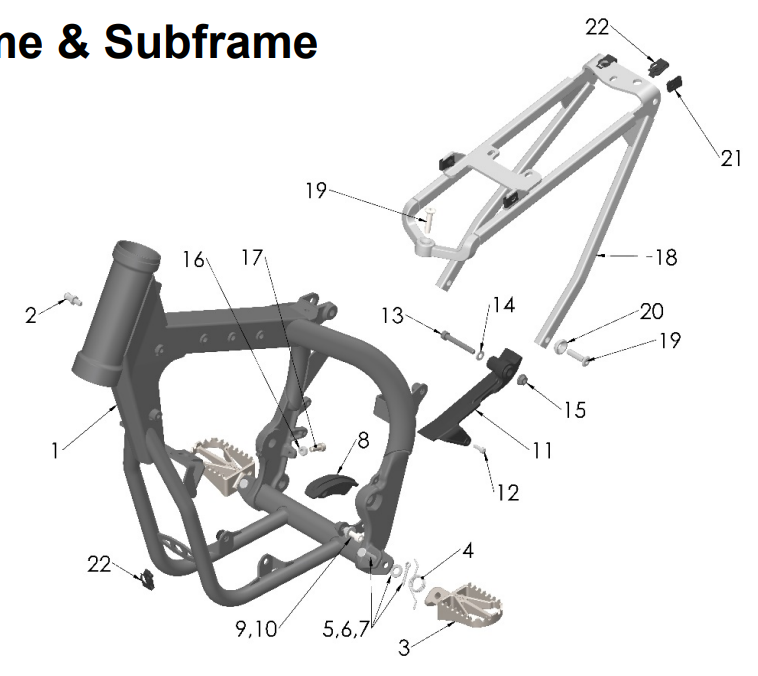

2024 CX5E Parts – Frame & Subframe

Ref #	Part #	Product	Price
1	FACE52024	FRAME – 2024 FWE	$0.00
2	FCCE50015	POST - SIDE LOUVER	$14.88
3	TCMU0139	ULTRAWIDE FOOTPEG KIT 50cc / 65cc	$77.76
4	TCC60012	SPRING - FOOTPEG ULTRA WIDE	$5.43
5	FCMU0031	CLEVIS PIN - FOOTPEG	$4.32
6	HCWF0801	R/B HCWF0802 8MM FLAT WASHER	$0.53
7	HCCP0008	COTTERPIN - 1/8` X 3/4` 316 STAINLESS	$0.53
8	TCMU0044	CHAIN SLIDE - LOWER - 65/KING 2021	$16.56
9	HCBC0601	M6 X 16 SHCS ZINC	$1.09
10	TCC60019	WASHER - CHAIN SLIDER AND FORK GUARD	$2.76
11	FACEMU002	R/B FCCEMU001 CHAIN SLIDE FINAL ASSY - UPPER - UHMW	$25.78
12	HCBC0412	M4 X 12 - SHCS - ZINC	$1.09
13	HCBC0606	M6 X 45 SHCS ZINC	$1.09
14	HCWF0601	M6 FLAT WASHER DIN 125A ZINC CLEAR	$0.53
15	HCNL0601	M6 LOCKNUT	$1.09
16	HCBC0625	M6 X 25 SHCS ZINC	$1.09
17	HCNS0601	M6 NUT DIN 934 CLASS 8 ZINC CLEAR	$0.53
18	FACE5001	SUBFRAME - CX5E - 2021	$161.22
19	HCSP0701	7MM SPROCKET BOLT - 2018	$2.76
20	FCMU0109	COMPRESSION LIMITER - SUB FRAME - LOWER MOUNT-SR&65 2021	$10.55
21	HCCN0001	5MM CLIP-ON NUT	$2.09
22	HCHA0003	6MM CLIP NUT-PLASTIC/PIPE MNT	$2.20
