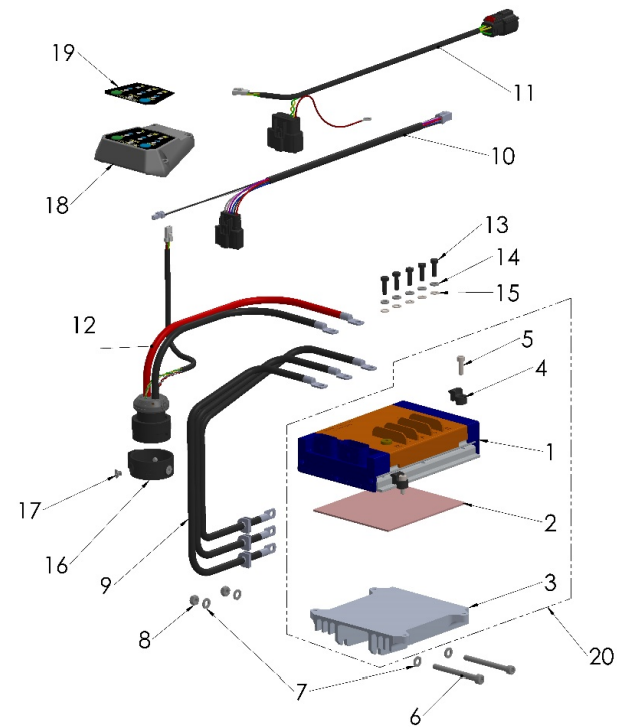

2024 CX5E Parts – Electrical System
Add to Cart
Add to Cart
| Ref # | Part # | Image | Product | Price | Quantity |
|---|---|---|---|---|---|
| 1 | JCCE50003 | |
CONTROLLER - BAC 4000W | $726.88 | |
| 2 | NCMU0001 | |
THERMAL PAD – HEAT SINK TO CONTROLLER | $0.00 | |
| 3 | FCCE50016C | |
CAST MOUNT - ASI CONTROLLER - SINGLE PIECE | $34.00 | |
| 4 | FCCE50019 | |
CLAMP - ASI CONTROLLER - SINGLE PIECE | $6.88 | |
| 5 | HCBC0516 |  |
M5 X 16 SHCS ZINC | $1.09 | |
| 6 | HCBC0665 |  |
M6 X 65 SHCS ZINC | $1.54 | |
| 7 | HCWF0601 |  |
M6 FLAT WASHER DIN 125A ZINC CLEAR | $0.53 | |
| 8 | HCNL0601 |  |
M6 LOCKNUT | $1.09 | |
| 9 | JCCE50058MP | |
MDU PHASE WIRES 8 AWG X3 WITH RING TERMINATIONS - CX5E | $140.00 | |
| 10 | JCCEMU006 | |
HARNESS - HALL SENSORS - CX5E | $118.88 | |
| 11 | JCCE10003 | |
R/B JKCE5001 - HARNESS - COMM - MDU RDU CAN & KEY - MOLEX | $128.00 | |
| 12 | JCCE10001MP | |
POWER LEADS FOR MDU | $0.00 | |
| 13 | HCBH0501 | |
M5 X 12 HH ZINC | $1.09 | |
| 14 | HCWF0501 |  |
5MM FLAT WASHER | $0.53 | |
| 15 | HCWL0501 | |
5MM STAR LOCK WASHER | $0.53 | |
| 16 | TCCE50005 | |
HELPER - BATTERY CONNECTOR | $9.88 | |
| 18 | VACEMU001MP | |
RDU ASSEMBLY - POPULATED - PRODUCTION | $480.00 | |
| 19 | VCCEMU004 | |
R/B VCCEMU010 - OVERLAY - RDU - PRODUCTION | $28.00 | |
| 20 | JACE50007 | |
CONTROLLER MDU ASSY - WITH PAD ON MOUNT | $1,400.00 |
