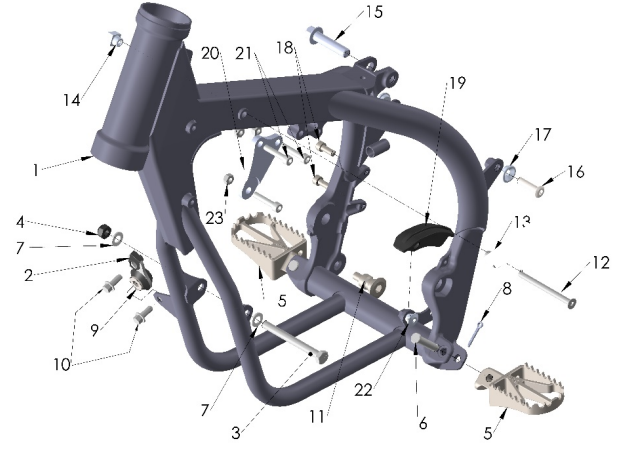

2024 CX50SR Parts – Frame I

2024 CX50SR Parts – Frame I
Add to Cart
Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.
Ref # Part # Image Product Price Quantity
1 FACS2024 FRAME - 2024 - CX50 FWE KING VENOM* $664.21
2 HCHA0003 6MM CLIP NUT-PLASTIC/PIPE MNT.* $2.20
3 HCBH0880 M8 X 80 HH ZINC $6.66
4 HCNL0801 R/B HCNL0803 - M8 LOCKNUT CLEAR ZINC 10MM TALL'* $1.09 Back Order
5 TCMU0139 ULTRAWIDE FOOTPEG KIT 50cc / 65cc* $77.76
6 FCMU0031 CLEVIS PIN - FOOTPEG $4.32
7 HCWF0801 R/B HCWF0802 8MM FLAT WASHER'* $0.53 Back Order
8 HCCP0008 COTTERPIN - 1/8` X 3/4` 316 STAINLESS* $0.53
9 XCMU0033 ISOLATION MOUNT $18.34
10 HCBF0616 M6 X 16 FLANGED HD HEX 8MM ZINC $1.09
11 BCMU0027 PIVOT BOLT - ALUM BRAKE PEDAL* $22.12
12 HCFH0675 M6 X 75 FLAT HEAD W ZINC* $1.09
13 TCMU0047 BUSHING-MOUNTING - FLAT HEAD FASTENER* $7.65
14 TCMU0017 BUSHING - TANK MOUNT - SQUARE THREADED NUT* $9.88
15 HCBF1040 R/B HCBF1039 M10 X 44 FLANGE HEAD ENGINERED FASTENER* $7.65
16 HCSP0701 7MM SPROCKET BOLT - 2018 $2.76
17 FCMU0109 COMPRESSION LIMITER - SUB FRAME - LOWER MOUNT-SR&65 2021* $10.55
18 HCBC0601 M6 X 16 SHCS ZINC $1.09
19 TCMU0044 CHAIN SLIDE - LOWER - 65/KING 2021* $16.56
20 FCCS0074 HEAD STAY - KING OFFSET - 2024* $24.23
FCCX0075 HEAD STAY BRACKET – 2X FOR DUAL BRACKET SETUP* $0.00
21 HCBC0625 M6 X 25 SHCS ZINC $1.09
HCBF0630 M6 X 30 FLANGE HD HEX 8MM ZINC* $1.09
22 HCSP0610 BOLT - SHOULDER - 6MM ALUMINUM - ANODIZED CLEAR $3.20
23 HCNL0601 M6 LOCKNUT $1.09
ACCESSORY TCMU0106 SPRING - FOOTPEG STD KING/JR PEG $5.43
