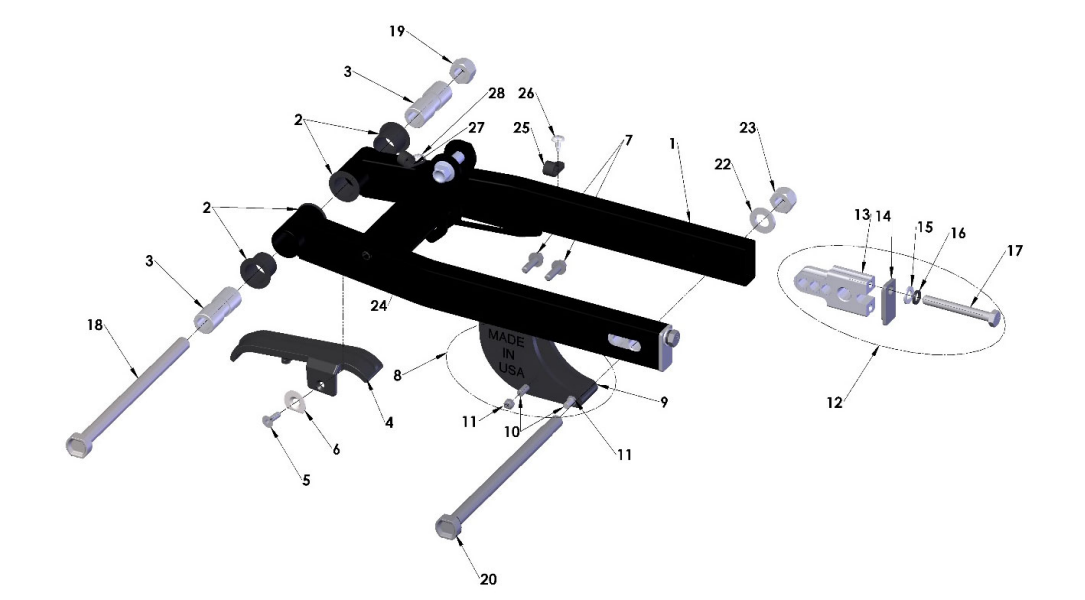

2024 CX50JR Parts – Swingarm Assembly
Add to Cart
Add to Cart
Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.
| Item # | Reference # | Image | Product | Price | Quantity |
|---|---|---|---|---|---|
| No part number available | GAMU2017B | |
SWINGARM - BLACK - WELDED ASSY - CM/P3 2017* | $194.60 | Back Order |
| No part number available | GCMU0001 | |
SWINGARM BUSHING 1-INDIVIDUAL* | $10.55 | Back Order |
| No part number available | GCCS0001 | |
SPACER - SWNGARM PIVOT TUBE KG 10-16 / ALL 50cc 2017- LATER* | $13.67 | Back Order |
| No part number available | GCMU0041 | |
SWINGARM CHAIN GUARD - CX50 - WITH MOHAWK AND FOOT* | $16.56 | Back Order |
| No part number available | HCFH0512 | |
M5 X 12 FLAT HEAD ZINC* | $1.09 | Back Order |
| No part number available | HCWF0501 | |
5MM FLAT WASHER* | $0.53 | Back Order |
| No part number available | HCBF0620 | |
M6 X 20 FLANGE HD HEX 8MM ZINC 8.8* | $1.09 | Back Order |
| No part number available | PAKG0001 | |
CHAIN BLOCK ASSY* | $30.02 | Back Order |
| No part number available | PCKG0004 | |
CHAIN GUIDE - SLIDER BOTTOM* | $10.99 | Back Order |
| No part number available | HCBF0635 | |
M6 X 35 FLANGE HD HEX 8MM ZINC 8.8* | $1.09 | Back Order |
| No part number available | HCNL0601 | |
M6 LOCKNUT* | $1.09 | Back Order |
| No part number available | FAMU0005 | |
WHEEL PULL ASSEMBLY* | $32.25 | Back Order |
| No part number available | FCMU0203 | |
WHEEL PULL* | $24.35 | Back Order |
| No part number available | FCMU0202 | |
ENDCAP - WHEEL PULL - KING & CM* | $8.77 | Back Order |
| No part number available | HCWF0802 | |
8MM FLAT WASHER - DIN - YELLOW ZINC - HARDENED 15.6mm O.D.* | $0.53 | Back Order |
| No part number available | HCBH0810 | |
M8 X 65 HH FULL THREADS ZINC* | $1.54 | Back Order |
| No part number available | HCBH1203 | |
M12 X 188.5 PIVOT BOLT* | $32.14 | Back Order |
| No part number available | HCNL1201 | |
M12-1.25 LOCKNUT FINE THREAD* | $3.20 | Back Order |
| No part number available | WCMU0016 | |
M12 X 195MM AXLE / PIVOT BOLT* | $32.14 | Back Order |
| No part number available | HCBF1039 | |
M10 X 39 FLANGE HEAD - SHOCK BOLT* | $12.11 | Back Order |
| No part number available | HCCC0006 | |
CABLE CLAMP-7/16 INCH BLACK* | $1.09 | Back Order |
| No part number available | HCPP0832 | |
#8X1/2 SELF TAPPING SCREW* | $1.09 | Back Order |
| No part number available | HCCC0005 | |
GUIDE - REAR BRAKE HOSE* | $5.88 | Back Order |
| No part number available | HCPP0834 | |
#8X3/4 SELF TAPPING SCREW* | $1.09 | Back Order |
