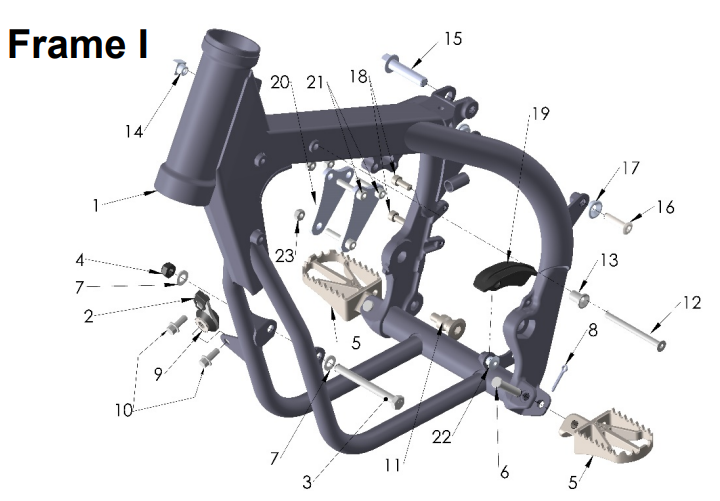

2024 CX50FWE Parts – Frame I
Add to Cart
Add to Cart
Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.
| Item # | Reference # | Image | Product | Price | Quantity |
|---|---|---|---|---|---|
| No part number available | FACS2024 | |
FRAME - 2024 - CX50 FWE KING VENOM* | $664.21 | Back Order |
| No part number available | HCHA0003 | |
6MM CLIP NUT-PLASTIC/PIPE MNT.* | $2.20 | Back Order |
| No part number available | MCMUGR12 | |
GROMMET - RADIATOR MOUNT - 50SR/65* | $4.98 | Back Order |
| No part number available | GCMU0021 | |
BOLT - TITANIUM - SWINGARM PIVOT - 2021 CX50 SHORTER* | $143.42 | Back Order |
| No part number available | HCNL1201 | |
M12-1.25 LOCKNUT FINE THREAD* | $3.20 | Back Order |
| No part number available | HCBH0880 | |
M8 X 80 HH ZINC* | $6.66 | Back Order |
| No part number available | HCNL0803 | |
M8 LOCKNUT 8MM TALL* | $2.20 | Back Order |
| No part number available | TCMU0139 | |
ULTRAWIDE FOOTPEG KIT 50cc / 65cc* | $77.76 | Back Order |
| No part number available | FCMU0031 | |
CLEVIS PIN - FOOTPEG* | $4.32 | Back Order |
| No part number available | HCWF0802 | |
8MM FLAT WASHER - DIN - YELLOW ZINC - HARDENED 15.6mm O.D.* | $0.53 | Back Order |
| No part number available | HCCP0008 | |
COTTERPIN - 1/8` X 3/4` 316 STAINLESS* | $0.53 | Back Order |
| No part number available | XCMU0033 | |
ISOLATION MOUNT* | $18.34 | Back Order |
| No part number available | HCBF0616 | |
M6 X 16 FLANGED HD HEX 8MM ZINC* | $1.09 | Back Order |
| No part number available | BCMU0027 | |
PIVOT BOLT - ALUM BRAKE PEDAL* | $22.12 | Back Order |
| No part number available | HCBC0601 | |
M6 X 16 SHCS ZINC* | $1.09 | Back Order |
| No part number available | TCC60019 | |
WASHER - CHAIN SLIDER AND FORK GUARD* | $2.76 | Back Order |
| No part number available | HCFH0675 | |
M6 X 75 FLAT HEAD W ZINC* | $1.09 | Back Order |
| No part number available | TCMU0047 | |
BUSHING-MOUNTING - FLAT HEAD FASTENER* | $7.65 | Back Order |
| No part number available | TCMU0017 | |
BUSHING - TANK MOUNT - SQUARE THREADED NUT* | $9.88 | Back Order |
| No part number available | HCSP0701 | |
7MM SPROCKET BOLT - 2018* | $2.76 | Back Order |
| No part number available | FCMU0109 | |
COMPRESSION LIMITER - SUB FRAME - LOWER MOUNT-SR&65 2021* | $10.55 | Back Order |
| No part number available | HCNL0601 | |
M6 LOCKNUT* | $1.09 | Back Order |
| No part number available | HCBC0625 | |
M6 X 25 SHCS ZINC* | $1.09 | Back Order |
| No part number available | TCMU0044 | |
CHAIN SLIDE - LOWER - 65/KING 2021* | $16.56 | Back Order |
| No part number available | FCCS0075 | |
HEAD STAY - FW DUAL - 2024* | $26.23 | Back Order |
| No part number available | HCBF0630 | |
M6 X 30 FLANGE HD HEX 8MM ZINC* | $1.09 | Back Order |
| No part number available | HCSP0610BLK | |
BOLT - SHOULDER - 6MM ALUMINUM - BLACK* | $3.20 | Back Order |
| No part number available | TCC60012 | |
SPRING - FOOTPEG ULTRA WIDE* | $5.43 | Back Order |
