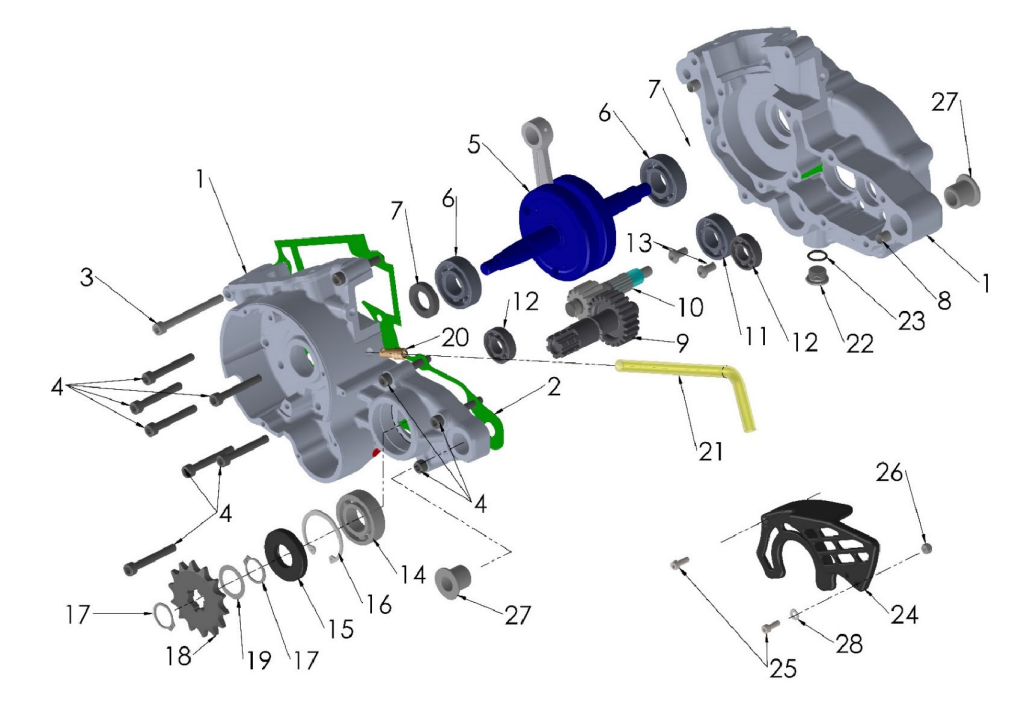

2024 CX50FWE ANNIVERSARY Parts – Engine – Bottom End and Transmission
Add to Cart
Add to Cart
Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.
| Item # | Reference # | Image | Product | Price | Quantity |
|---|---|---|---|---|---|
| No part number available | EKMU2024 | |
ENGINE CASE SET FOR CS ONLY- 2024 - W BEARINGS AND SEALS* | $598.88 | Back Order |
| No part number available | ZCMU0015 | |
GASKET - CENTERCASE - CX50 VENOM* | $14.33 | Back Order |
| No part number available | HCBC0665 | |
M6 X 65 SHCS ZINC* | $1.54 | Back Order |
| No part number available | HCBC0604 | |
M6 X 35 SHCS ZINC* | $1.09 | Back Order |
| No part number available | ECMU0284 | |
CRANKSHAFT ASSY - WIDE CHEEK* | $439.42 | Back Order |
| No part number available | ECMU0016 | |
BEARING - 50CC CRANKSHAFT & 65CC TRANS* | $22.12 | Back Order |
| No part number available | ECMU0118 | |
SEAL - CRANKSHAFT - 50CC STD* | $11.44 | Back Order |
| No part number available | ECMU0122 | |
DOWEL - HOLLOW - 8.4 x 14 x 7 - AISI 1215* | $2.20 | Back Order |
| No part number available | ECMU0999 | |
GEAR OUTPUT WIDE TOOTH 50* | $165.67 | Back Order |
| No part number available | ECMU0268 | |
GEAR - INPUT TRANSMISSION - CX50 VENOM* | $133.40 | Back Order |
| No part number available | ECMU0001 | |
BEARING - TRANS. SEC. GEAR* | $22.12 | Back Order |
| No part number available | ECKG0031 | |
BEARING 6001 NO SEALS* | $9.88 | Back Order |
| No part number available | ECKGBR01 | |
BEARING OUTPUT- 50 & 65* | $29.91 | Back Order |
| No part number available | ECMU0236 | |
SEAL OUTPUT - CX50 VENOM* | $10.99 | Back Order |
| No part number available | ECMU0237 | |
SNAP RING - OUTPUT BEARING - CX50 VENOM* | $3.87 | Back Order |
| No part number available | ECKGSR03 | |
SNAP RING-OUTPUT- ext 20mm - FOR OUTPUT SHAFT* | $2.54 | Back Order |
| No part number available | PCKG0015 | |
SPROCKET 15T* | $18.78 | Back Order |
| No part number available | ECMU0176 | |
SHIM - SPROCKET - 0.2 THK 20/28 ID/OD* | $3.32 | Back Order |
| No part number available | ECMU0177 | |
SHIM - SPROCKET - 0.3 THK 20/28 ID/OD* | $3.32 | Back Order |
| No part number available | ECMU0178 | |
SHIM - SPROCKET - 0.5 THK 20/28 ID/OD* | $3.32 | Back Order |
| No part number available | ECMU0557 | |
HOSE CRANKCASE VENT 2010 - CURRENT 50cc* | $8.88 | Back Order |
| No part number available | ECMU0272BLK | |
PLUG - OIL FILL OIL DRAIN COOLANT VENOM BLACK* | $12.11 | Back Order |
| No part number available | ZCMUB014 | |
O-RING - KICK SHAFT & OIL FILL PLUG* | $1.42 | Back Order |
| No part number available | ECMU0289 | |
GUARD - COUNTERSHAFT SPROCKET - CX50SRX* | $33.25 | Back Order |
| No part number available | HCBC0412 | |
M4 X 12 - SHCS - ZINC* | $1.09 | Back Order |
| No part number available | HCNL0401 | |
4MM LOCK NUT* | $1.09 | Back Order |
| No part number available | ECC60028 | |
BUSHING - ENGINE PIVOT - 12MM* | $13.22 | Back Order |
| No part number available | HCWF0401 | |
4MM FLAT WASHER* | $0.53 | Back Order |
| No part number available | ZKMU2024 | |
GASKET KIT - COMPLETE - 2024 - 50CC VENOM* | $65.52 | Back Order |
