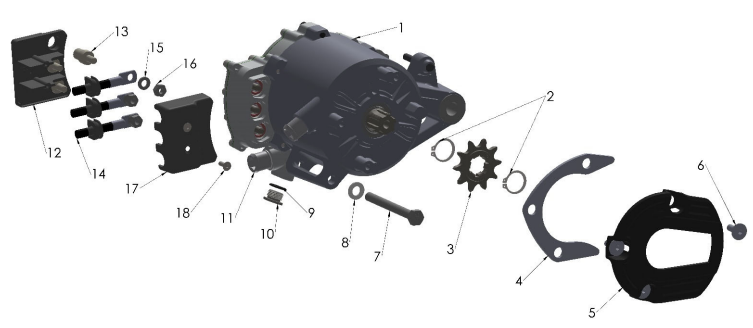

2023 CX5E Parts- Motor System- Sprocket Side

Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.

Ref #	Part #	Product	Price	Quantity
1	JACEMU001	R/B JACEMU002 MOTOR ASSEMBLY - BETTER CHAIN GUARD*	$2,500.00
2	ECKGSR03	SNAP RING-OUTPUT- ext 20mm - FOR OUTPUT SHAFT	$2.54
3	PCMU0010	SPROCKET - FRONT - 10T - 415 CHAIN*	$22.12
4	JCCEMU008	SPROCKET GUARD - CASE SAVER - 2024*	$24.88
5	JCCE50040	GUARD - SPROCKET - COBRA MOTOR*	$26.76
6	HCSP0610BLK	BOLT - SHOULDER - 6MM ALUMINUM - BLACK*	$3.20
7	HCBH0880	M8 X 80 HH ZINC	$6.66
8	HCWF0801	R/B HCWF0802 8MM FLAT WASHER'*	$0.53	Back Order
9	ZCMUB014	O-RING - KICK SHAFT & OIL FILL PLUG	$1.42
10	ECMU0272	PLUG - OIL FILL OIL DRAIN COOLANT VENOM*	$12.11
11	ECMU0132	FITTING-COOLANT	$27.68
12	JCCE50036	SPACER - INSULATING - PHASE LEAD*	$16.00
13	JCCE50035	STUD - PHASE - RING LUG STYLE*	$18.98
15	HCWF0601	M6 FLAT WASHER DIN 125A ZINC CLEAR	$0.53
16	HCNS0601	M6 NUT DIN 934 CLASS 8 ZINC CLEAR*	$0.53
17	JCCE50044	CAP - SPACER - INSULATING - PHASE LEAD*	$14.00
18	HCFH0412	M4 X 12 - FLAT HEAD - ZINC*	$2.20
ACCY	MCMUMF32	ELECTRIC MOTOR FLUID - 32 OZ BOTTLE*	$28.88
