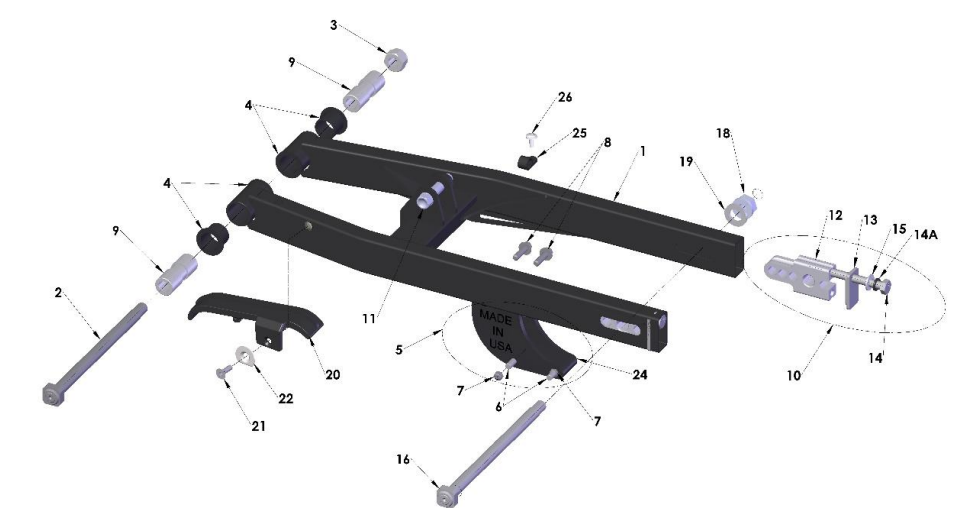

2023 CX50SR KING Parts- Swingarm Assembly

2023 CX50SR KING Parts- Swingarm Assembly
Add to Cart
Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.
Ref # Part # Image Product Price Quantity
1 GACS2020 R/B GACS2021 SWINGARM WELDED ASSY- 2021 KING* $194.60
2 GCMU0022 BOLT - STEEL - SWINGARM PIVOT - 2021 CX50 SHORTER* $32.14
3 HCNL1201 M12-1.25 LOCKNUT FINE THREAD $3.20
4 GCMU0001 SWINGARM BUSHING 1-INDIVIDUAL $10.55
5 PAKG0001 CHAIN BLOCK ASSY* $30.02
6 HCBFT640 R/B HCBFT635 M6 X 40 FLAT HEAD $1.09
7 HCNL0601 M6 LOCKNUT $1.09
8 HCBF0620 M6 X 20 FLANGE HD HEX 8MM ZINC 8.8 $1.09
9 GCCS0015 SPACER -SWINGARM PIVOT TUBE - 2021 KING* $13.67
10 FAMU0005 WHEEL PULL ASSEMBLY $32.25
11 HCBF1040 R/B HCBF1039 M10 X 44 FLANGE HEAD ENGINERED FASTENER* $7.65
12 FCMU0203 WHEEL PULL $24.35
13 FCMU0202 ENDCAP - WHEEL PULL - KING & CM $8.77
14 HCBH0810 M8 X 65 HH FULL THREADS ZINC $1.54
14A HCWL0801 8MM LOCK WASHER STANDARD $0.53
15 HCWF0801 R/B HCWF0802 8MM FLAT WASHER'* $0.53 Back Order
16 WCMU0016 M12 X 195MM AXLE / PIVOT BOLT* $32.14
18 WCMU0038 NUT - 12MM ACORN - ALUM $20.79
20 GCMU0041 SWINGARM CHAIN GUARD - CX50 - WITH MOHAWK AND FOOT* $16.56
21 HCFH0516 M5 X 16 FLAT HEAD $1.09
22 GCMU0038 WASHER - RETAINING - SWINGARM GUARD* $4.32
23 HCNL0501 M5 LOCKNUT $1.09
24 PCKG0004 CHAIN GUIDE - SLIDER BOTTOM $10.99
25 HCCC0006 CABLE CLAMP-7/16 INCH BLACK $1.09
26 HCPP0832 #8X1/2 SELF TAPPING SCREW $1.09
