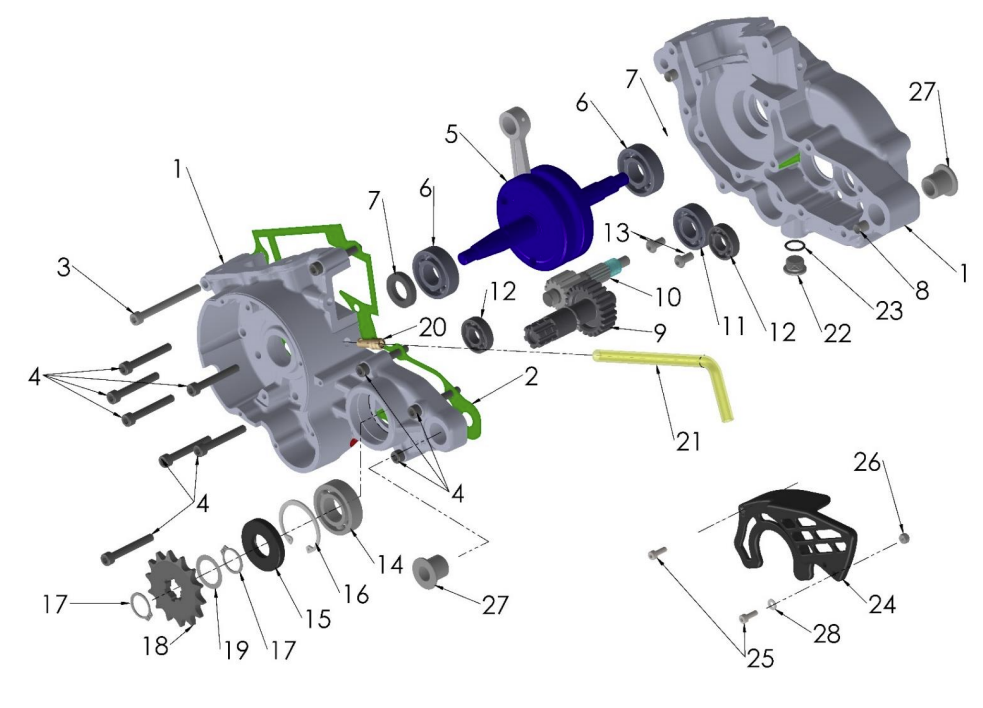

2023 CX50SR KING Parts- Engine- Bottom End and Transmission

Ref #	Part #	Product	Price
1	EKMU2023	ENGINE CASE SET - 2023 VENOM - WITH BEARINGS AND SEALS	$598.88
2	ZCMU0015	GASKET - CENTERCASE - CX50 VENOM	$14.33
3	HCBC0665	M6 X 65 SHCS ZINC	$1.54
4	HCBC0604	M6 X 35 SHCS ZINC	$1.09
5	ECMU0258	CRANKSHAFT - CX50 - VENOM	$261.37
6	ECMU0016	BEARING - 50CC CRANKSHAFT & 65CC TRANS	$22.12
7	ECMU0118	SEAL - CRANKSHAFT - 50CC STD	$11.44
8	ECMU0122	DOWEL - HOLLOW - 8.4 x 14 x 7 - AISI 1215	$2.20
9	ECMU0999	GEAR OUTPUT WIDE TOOTH 50	$165.67
10	ECMU0268	GEAR - INPUT TRANSMISSION - CX50 VENOM	$133.40
11	ECMU0001	BEARING - TRANS. SEC. GEAR	$22.12
12	ECKG0031	BEARING 6001 NO SEALS	$9.88
14	ECKGBR01	BEARING OUTPUT- 50 & 65	$29.91
15	ECMU0236	SEAL OUTPUT - CX50 VENOM	$10.99
16	ECMU0237	SNAP RING - OUTPUT BEARING - CX50 VENOM	$3.87
17	ECKGSR03	SNAP RING-OUTPUT- ext 20mm - FOR OUTPUT SHAFT	$2.54
18	PCKG0015	SPROCKET 15T	$18.78
19A	ECMU0176	SHIM - SPROCKET - 0.2 THK 20/28 ID/OD	$3.32
19B	ECMU0177	SHIM - SPROCKET - 0.3 THK 20/28 ID/OD	$3.32
19C	ECMU0178	SHIM - SPROCKET - 0.5 THK 20/28 ID/OD	$3.32
20	ECMU0233	R/B ECMU0233P - VENT HOSE NIPPLE (LARGE)	$9.88
21	ECMU0557	HOSE CRANKCASE VENT 2010 - CURRENT 50cc	$8.88
22	ECMU0272BLK	PLUG - OIL FILL OIL DRAIN COOLANT VENOM BLACK	$12.11
23	ZCMUB014	O-RING - KICK SHAFT & OIL FILL PLUG	$1.42
24	ECMU0289	GUARD - COUNTERSHAFT SPROCKET - CX50SRX	$33.25
25	HCBC0412	M4 X 12 - SHCS - ZINC	$1.09
26	HCNL0401	4MM LOCK NUT	$1.09
27	ECC60028	BUSHING - ENGINE PIVOT - 12MM	$13.22
28	HCWF0401	4MM FLAT WASHER	$0.53
	ZKMU2016	GASKET KIT - COMPLETE - 50CC VENOM	$65.52
	EACS2021SR	ENGINE - CX50SR 2021 - LATER VENOM	$1,889.53
