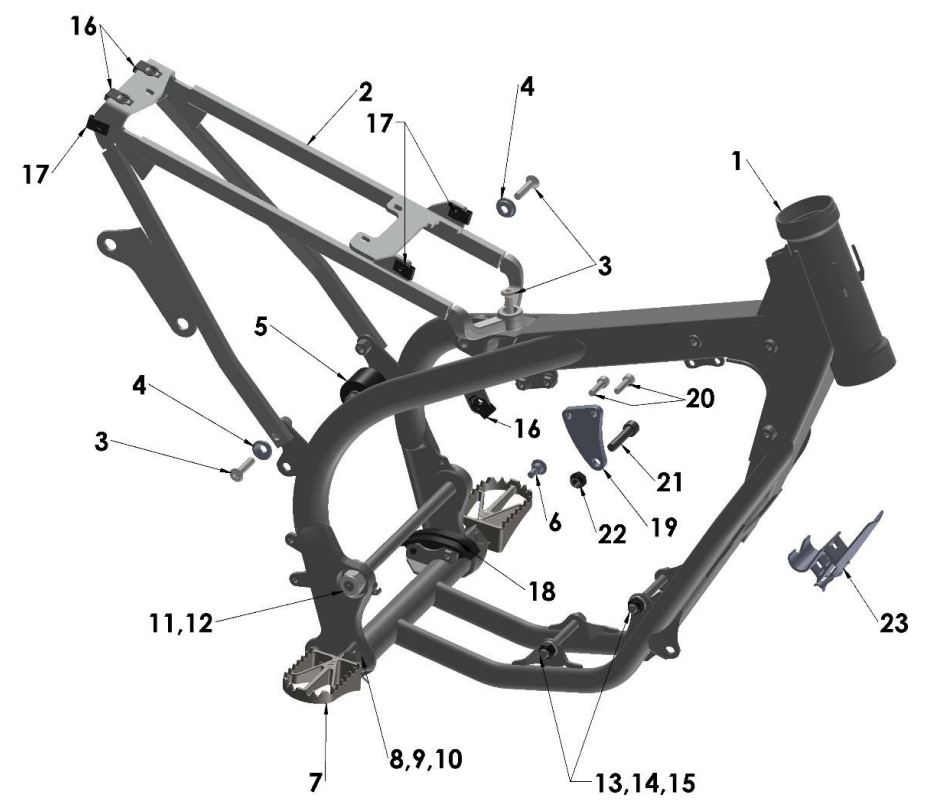

2022-CX65 Parts- Frame

Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.

Ref #	Part #	Product	Price	Quantity
1	FAC62022	FRAME - CX65 - 2022 2023 ONLY*	$777.78
2	FAC60027	SUBFRAME CX65 2022*	$165.67
3	HCSP0701	7MM SPROCKET BOLT - 2018	$2.76
4	FCMU0109	COMPRESSION LIMITER - SUB FRAME - LOWER MOUNT-SR&65 2021*	$10.55
5	FCC60020	CHAIN ROLLER W BOLT BEARING & SEALS*	$18.34
6	HCSP0610	BOLT - SHOULDER - 6MM ALUMINUM - ANODIZED CLEAR	$3.20
7	TCMU0139	ULTRAWIDE FOOTPEG KIT 50cc / 65cc*	$77.76

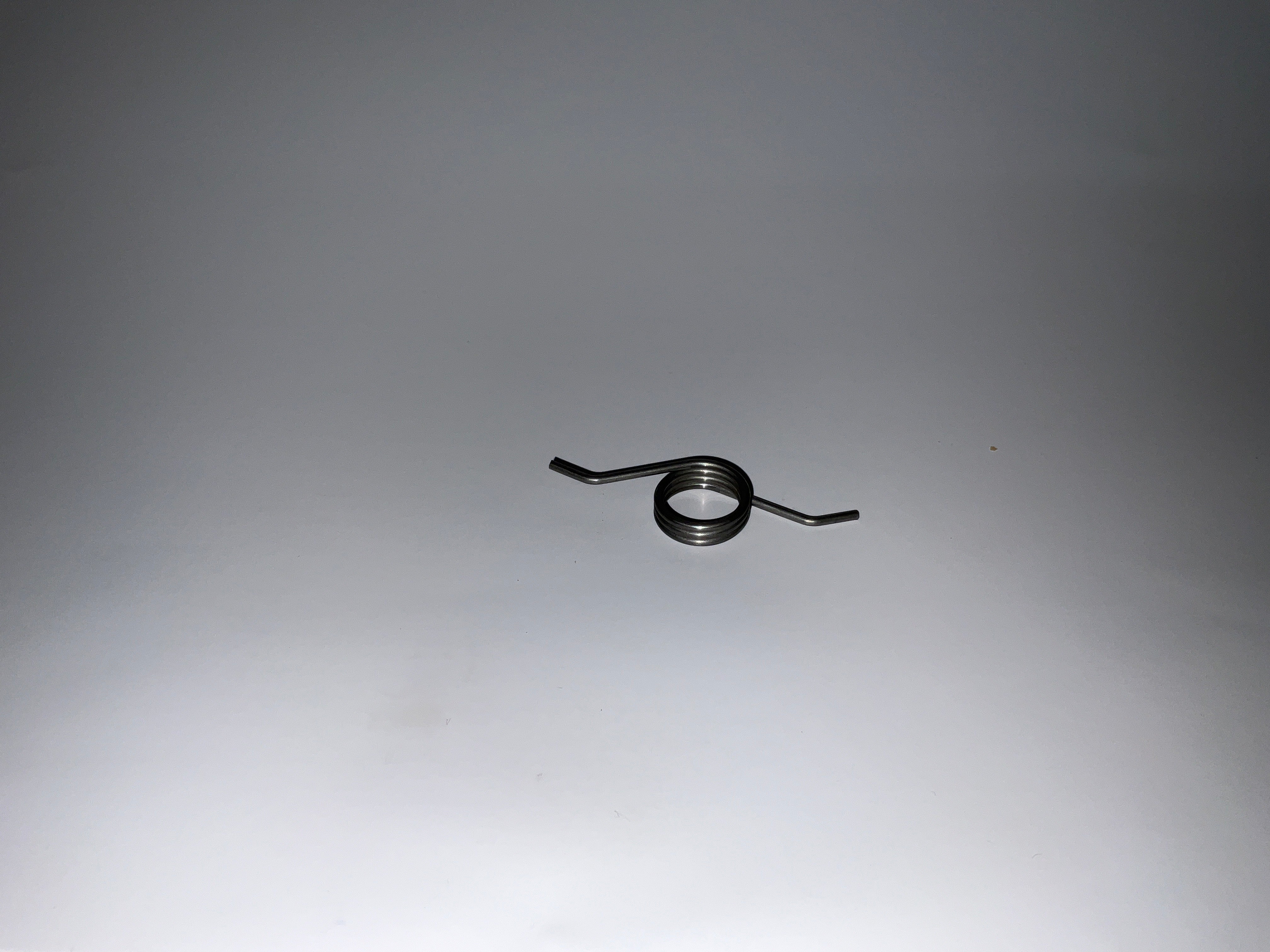

8	TCC60012	SPRING - FOOTPEG ULTRA WIDE	$5.43
9	FCMU0031	CLEVIS PIN - FOOTPEG	$4.32
10	HCCP0008	COTTERPIN - 1/8` X 3/4` 316 STAINLESS*	$0.53
11	GCC60020	BOLT - TITANIUM - SWINGARM PIVOT - CX65*	$143.42
12	HCNL1201	M12-1.25 LOCKNUT FINE THREAD	$3.20
13	HCBH0865	M8 X 65 HH ZINC	$1.54
14	HCWF0801	R/B HCWF0802 8MM FLAT WASHER'*	$0.53	Back Order
15	HCNL0801	R/B HCNL0803 - M8 LOCKNUT CLEAR ZINC 10MM TALL'*	$1.09	Back Order
16	HCHA0003	6MM CLIP NUT-PLASTIC/PIPE MNT.*	$2.20
17	HCCN0001	5MM CLIP-ON NUT*	$2.09
18	TCMU0044	CHAIN SLIDE - LOWER - 65/KING 2021*	$16.56
19	FCC60098	HEAD STAY - CX65 2022*	$19.88
20	HCBC0601	M6 X 16 SHCS ZINC	$1.09
21	HCBC0803	OBSOLETE - M8 X 35 SHCS ZINC*	$1.09
23	TCC60041	GUARD - PV - FRAME MOUNTED*	$34.88
NOT SHOWN	MCMUZT28	ZIP TIP 8` FRAME MOUNTED*	$1.40
