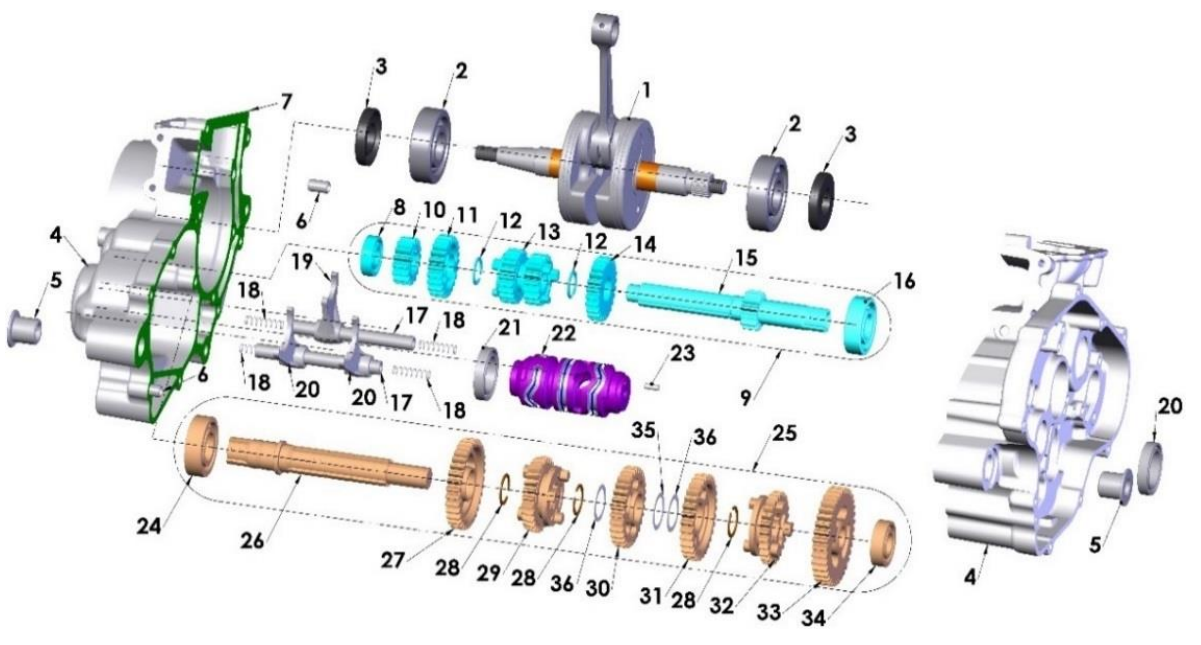

2022-CX65 Parts- Engine- Transmission

Ref #	Part #	Product	Price
1	ECC60219	R/B ECC60188 CRANKSHAFT 65 2017	$372.65
2	ECR60007	BEARING - CRANKSHAFT - C4	$38.81
3	ECDC0024	SEAL CRANKSHAFT	$10.33
ACCESSORY	EKEX0001	R/B EKC60007 - CONNECTING ROD KIT 90mm MANUAL ENG	$92.23
4	EKC62015	ENGINE CASE SET W/B&S CX65 – 2015 AND NEWER	$609.81
5	ECC60028	BUSHING - ENGINE PIVOT - 12MM	$13.22
6	ECWX0025	R/B ECMU0122 - HOLLOW DOWEL - 8.4 x 14 x 7	$2.20
Case Screws - Short	HCBC0603	M6 X 30 SHCS ZINC	$1.09
Case Screws - Long	HCBC0604	M6 X 35 SHCS ZINC	$1.09
7	ZCC60014	GASKET - CENTERCASE PV 2015 CX65	$15.56
8	ECKG0031	BEARING 6001 NO SEALS	$9.88
9	EAC60041	PRIMARY SHAFT SUB-ASSY - 2016	$277.42
10	ECC60306	GEAR,2ND INPUT, 16T INVOLUTE	$51.05
11	ECDC0005	GEAR 5TH INPUT 23T	$51.05
12	ECDC0003	SNAP RING EXT. 17MM	$2.20
13	ECC60304	GEAR, 3/4TH INPUT,18/21T - INVOLUTE	$71.53
14	ECDC0002	GEAR 6TH INPUT, 24T	$55.50
15	ECC60301	SHAFT, TRANS.INPUT - INVOLUTE	$110.03
16	ECMU0216	R/B ECMU0016 - BEARING, PRIMARY CLUTCH SIDE	$17.67
17	ECC60070	ROD - SHIFTER - HOLLOW (USE WITH ECC60071 SPRING)	$16.56
18	ECC60071	SPRING - SHIFTER ROD	$5.43
19	ECDC0048	SHIFT FORK INPUT	$54.39
20	ECDC0049	R/B ECC60256 - SHIFT FORK,OUTPUT	$61.07
21	ECDC0022	BEARING SHIFT DRUM	$22.12
22	ECC60186	SHIFT DRUM - MACHINED - 2015 & NEWER	$143.42
23	ECDC0051	DOWEL PIN 4X16.0	$2.20
24	ECKGBR01	BEARING OUTPUT- 50 & 65	$29.91
25	EAC60042	OUTPUT SHAFT SUB-ASSY - 2016	$356.38
26	ECC60307	SHAFT,TRANS.OUTPUT - INVOLUTE	$83.32
27	ECC60114	GEAR,2ND OUTPUT,34T, 4 DOG SQUARE	$58.40
28	ECDC0017	SNAP RING EXT.18MM HEAVY DUTY	$2.76
29	ECC60323	GEAR, 5TH OUTPUT, 28T, INVOLUTE 4LD - POLISHED	$74.88
30	ECC60111	R/B ECC60111M - GEAR,4TH OUTPUT,30T, 4 DOG SQUARE	$58.40
31	ECC60110	GEAR, 3RD OUTPUT, 31T, 4 DOG SQUARE	$58.40
32	ECC60325	GEAR,6TH OUTPUT,26T, INVOLUTE - 4LD	$74.88
33	ECC60116	GEAR,1ST OUTPUT,37T, 4 DOG SQUARE - POLISHED	$58.40
34	ECDC0021	BEARING OUTPUT	$27.68
35	ECC60160	SHIM – TRANSMISSION .2mm THK	$4.32
36	ECC60161	SHIM - TRANSMISSION - 25 x 0.5 x 20	$1.91
ACCESSORY	ECMU0040	SHIM - CLUTCH TO HUB SPACER 22 x 0.76 x 15	$2.76
ACCESSORY	ECMU0040T	SHIM - CLUTCH TO HUB SPACER 22 x 0.38 x 15	$2.76
	EAC62021	obsolete ENGINE - 2021 CX65 PV	$2,724.13
