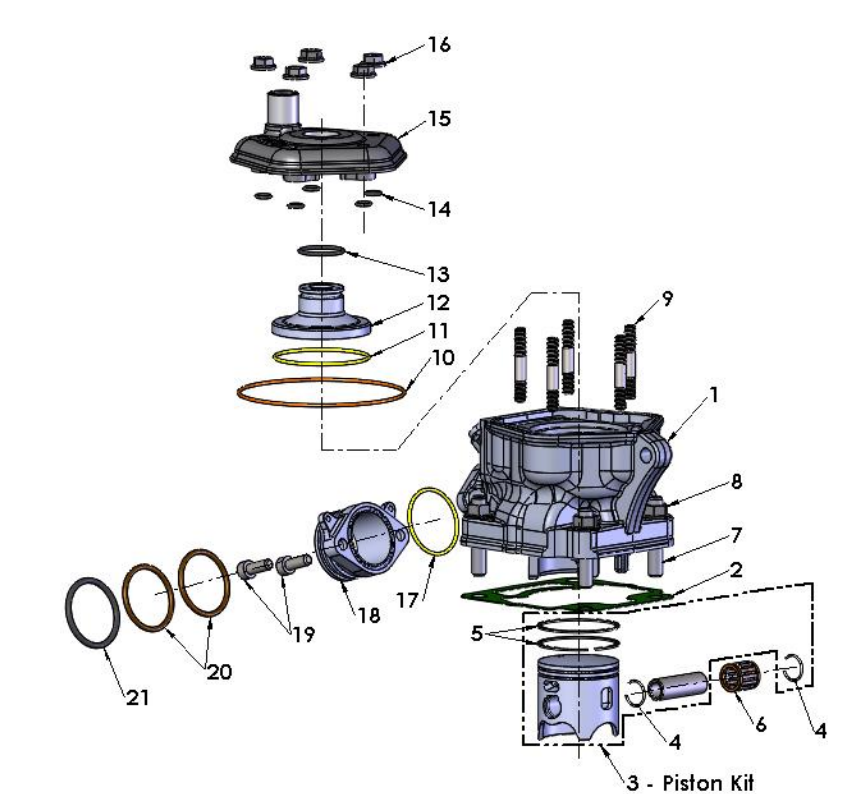

2022-CX65 Parts- Engine- Top End

Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.

Ref #	Part #	Product	Price
1	ECC60557	CYLINDER KIT - CX65 - 2022*	$644.18
2	ZCC60302	GASKET - 0.2MM - CYLINDER BASE - 65CC 2013 - 2023*	$12.11
2	ZCC60303	GASKET - 0.3MM - CYLINDER BASE - 65CC 2013 - 2023*	$12.11
2	ZCC60304	GASKET - 0.4MM - CYLINDER BASE - 65CC 2013 - 2023*	$12.11
2	ZCC60305	GASKET - 0.5MM - CYLINDER BASE - 65CC 2013 - 2023*	$12.11
2	ZCC60306	GASKET - 0.6MM - CYLINDER BASE - 65CC 2013 - 2023*	$12.11
2	ZCC60307	IF 0.7MM GASKET IS NEEDED USE ZCC60303 AND ZCC60304 TOGETHER*	$12.11
2	ZCC60308	GASKET - 0.8MM - CYLINDER BASE - 65CC 2013 - 2023*	$12.11
	ECC60208WP	WRIST PIN - PISTON - CAST 44.5MM 65*	$18.88
4	ECC60222	CIRCLIP - PAIR - CAST PISTON - 44.5MM*	$4.43
5	ECC60221	RINGS - FOR CAST PISTON - 44.5	$32.14
6	ECDC0061	BEARING - WRISTPIN 65CC*	$14.11
7	ECC60109	STUD - CYLINDER 8MM X 44.5MM*	$7.21
8	HCNF0801	8MM FLANGE NUT-ZINC - CLASS 10 - NO SERRATIONS	$1.09
9	ECC60107	STUD - CYLINDER HEAD 6MM X 41MM	$5.43
10	ZCC60009	O-RING - CYL HEAD LARGE - 65CC & VENOM	$7.65
11	ZCMUOR05	O-RING - HEAD - MEDIUM 50CC	$8.88
12	ECC60207	CYLINDER HEAD INSERT - 2015 & LATER*	$105.58
13	ZCMUOR23	ORING - HEAD INSERT - VITON	$4.98
14	ZCMUOR03	O-RING 6.07X1.78 SILICONE*	$1.09
15	ECC60149	CYLINDER HEAD OUTER - 65CC & VENOM*	$98.90
16	HCNF0601	6MM FLANGE NUT-ZINC - CLASS 10	$0.64
17	ZCMUOR07	O-RING - EXHAUST FLANGE TO CYL & 65 WATER PUMP	$4.43
18	ECMU0262	FLANGE - EXHAUST CX50 VENOM*	$49.94
19	HCBC0601	M6 X 16 SHCS ZINC	$1.09
20	ZCMOTE11	O-RING - EXHAUST FLANGE	$3.20
21	ZCMUOR11	O`RING - EXHAUST PIPE CUSHION - CX65	$2.54
NOT SHOWN	ZKMUOR14	ORING KIT - TOP END - FANG VALVE 65*	$16.81
NOT SHOWN	EAC62022	ENGINE - 2022 CX65 PV*	$2,920.88
