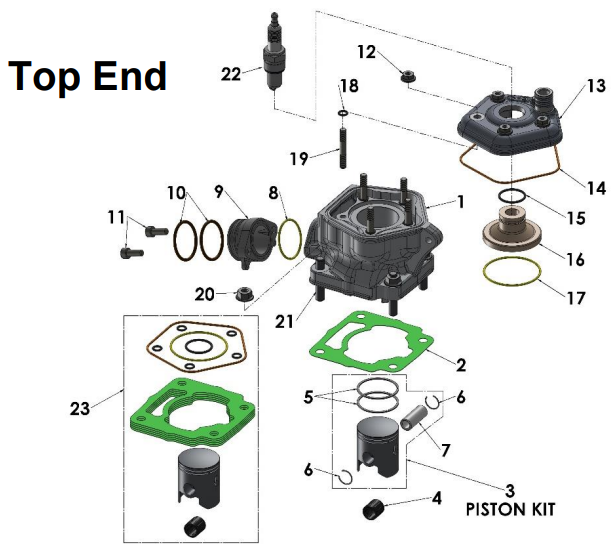

2022-CX50SRx-FWE Parts- Engine- Top End

Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.

Ref #	Part #	Product	Price
1	EKMU0761	CYLINDER KIT - FWE 2022*	$510.64
2	ZCMU0102	BASE GASKET - 0.2MM - CX50 VENOM*	$9.21
2	ZCMU0103	BASE GASKET - 0.3MM - CX50 VENOM*	$9.21
2	ZCMU0104	BASE GASKET - 0.4MM - CX50 VENOM*	$9.21
2	ZCMU0105	BASE GASKET - 0.5MM - CX50 VENOM*	$9.21
2	ZCMU0106	BASE GASKET - 0.6MM - CX50 VENOM*	$9.21
3	ECMU0276A	PISTON KIT-39MM NON-BRIDGED A*	$104.47
4	ECMU0077	BEARING - WRIST PIN FOR 50CC	$16.67
5	ECMU0155	RING SET 39MM 50CC	$32.14
6	ECMUSR00	CIRCLIP - PAIR - 39MM PISTON	$4.43
7	ECKG0012	WRIST PIN - 50CC*	$17.22
8	ZCMUOR07	O-RING - EXHAUST FLANGE TO CYL & 65 WATER PUMP	$4.43
9	ECMU0262	FLANGE - EXHAUST CX50 VENOM*	$49.94
10	ZCMOTE11	O-RING - EXHAUST FLANGE	$3.20
11	HCBC0612	M6 X 12 SHCS ZINC	$1.09
12	HCNF0601	6MM FLANGE NUT-ZINC - CLASS 10	$0.64
13	ECC60149	CYLINDER HEAD OUTER - 65CC & VENOM*	$98.90
14	ZCC60009	O-RING - CYL HEAD LARGE - 65CC & VENOM	$7.65
15	ZCMUOR23	ORING - HEAD INSERT - VITON	$4.98
16	ECMU0208	INSERT - CYLINDER HEAD - 2018 FWE*	$98.90
17	ZCMUOR05	O-RING - HEAD - MEDIUM 50CC	$8.88
18	ZCMUOR03	O-RING 6.07X1.78 SILICONE*	$1.09
19	ECC60107	STUD - CYLINDER HEAD 6MM X 41MM	$5.43
20	HCNF0801	8MM FLANGE NUT-ZINC - CLASS 10 - NO SERRATIONS	$1.09
21	ECC60109	STUD - CYLINDER 8MM X 44.5MM*	$7.21
22	ECMU0010I	R/B ECMU0151 SPARK PLUG AUTOLITE XS61 IRIDIUM	$12.77
23	EKMU0036	REBUILD KIT - TOP END - VENOM ENGINE - A PISTON*	$165.67
23	EKMU0037	REBUILD KIT - TOP END - VENOM ENGINE - B PISTON*	$165.67
23	EKMU0038	REBUILD KIT - TOP END - VENOM ENGINE - C PISTON*	$165.67
23	EKMU0039	REBUILD KIT - TOP END - VENOM ENGINE - D PISTON*	$165.67
ACCESSORY	ZKMUOR13	ORING KIT - TOP END - CX65 2013 TO CURRENT & ALL VENOM*	$16.11
	EACS2022FWE	ENGINE - 2022 FACTORY WORKS*	$2,279.68
