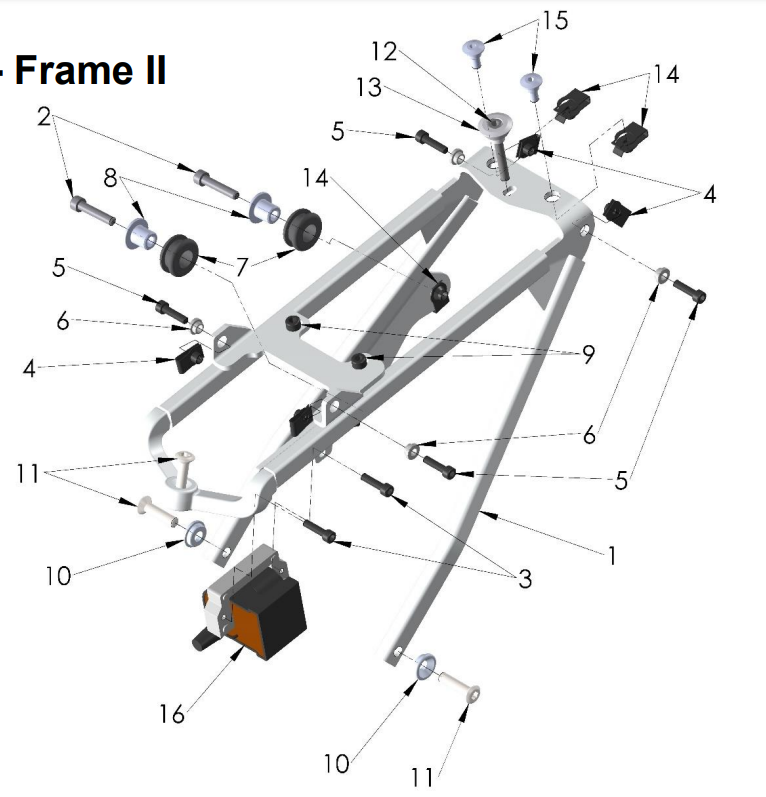

2022-CX50SR-KING Parts- Frame II
Add to Cart
Add to Cart

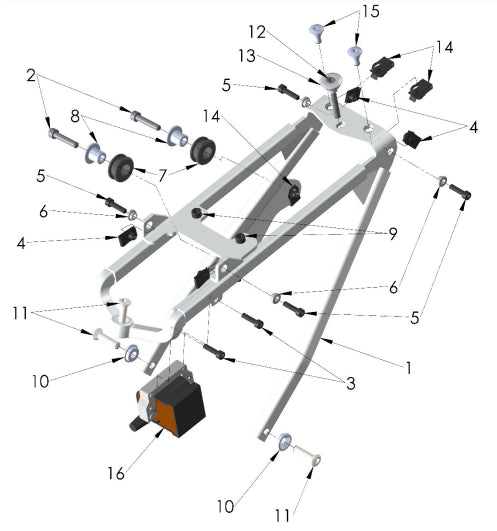

| Ref # | Part # | Image | Product | Price | Quantity |
|---|---|---|---|---|---|
| 1 | FACS0010 |  |
SUBFRAME - 2021 KING | $161.22 | |
| 2 | HCBC0603 |  |
M6 X 30 SHCS ZINC | $1.09 | |
| 3 | HCBC0502 |  |
M5 x 0.8 - 20 - SHCS - DIN 912 ISO 4762 CL12.9 - ZINC | $1.09 | |
| 4 | HCCN0001 |  |

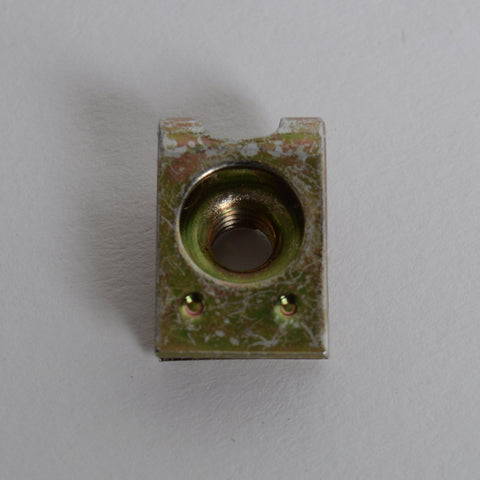

5MM CLIP-ON NUT | $2.09 | |
| 5 | HCBC0520 | |
M5 x 0.8 - 20 - SHCS - DIN 912, ISO 4762 - CL12.9 - ZINC | $1.09 | |
| 6 | TCC60017 |  |
WASHER - 5MM BODY PANEL | $4.32 | |
| 7 | MCMUGR03 |  |
GROMMET FOR SILENCER & UPPER KING RADIATOR MOUNT | $4.98 | |
| 8 | XCMU0051 |  |
WASHER SPACER - SILENCER BODY | $6.12 | |
| 9 | HCBC0602 |  |
M6 X 20 SHCS ZINC | $1.09 | |
| 10 | FCMU0109 |  |
COMPRESSION LIMITER - SUB FRAME - LOWER MOUNT-SR&65 2021 | $10.55 | |
| 11 | HCSP0701 |  |
7MM SPROCKET BOLT - 2018 | $2.76 | |
| 12 | HCFH0650 | |
M6 X 50 FLAT HEAD W ZINC | $1.09 | |
| 13 | TCMU0046 | |
SEAT WASHER | $3.88 | |
| 14 | HCHA0003 |  |
6MM CLIP NUT-PLASTIC/PIPE MNT | $2.20 | |
| 15 | HCSP0610 |  |
BOLT - SHOULDER - 6MM ALUMINUM - ANODIZED CLEAR | $3.20 | |
| 16 | ICMU0044 |  |

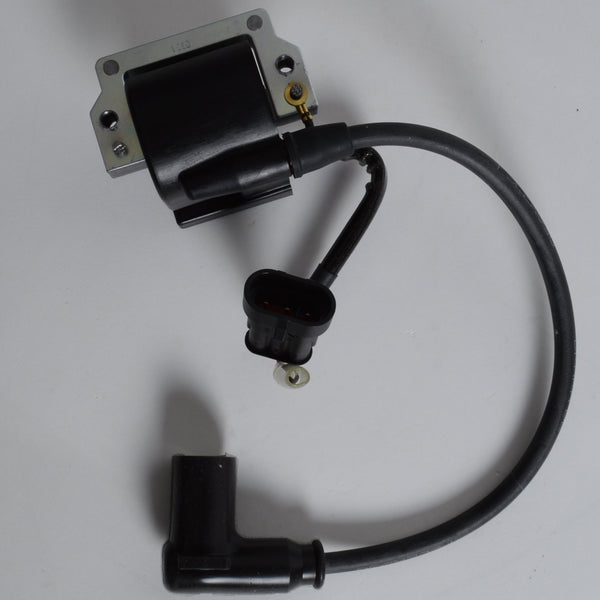

COIL/CDI - ANALOG - PVL - 2021 | $199.06 |
