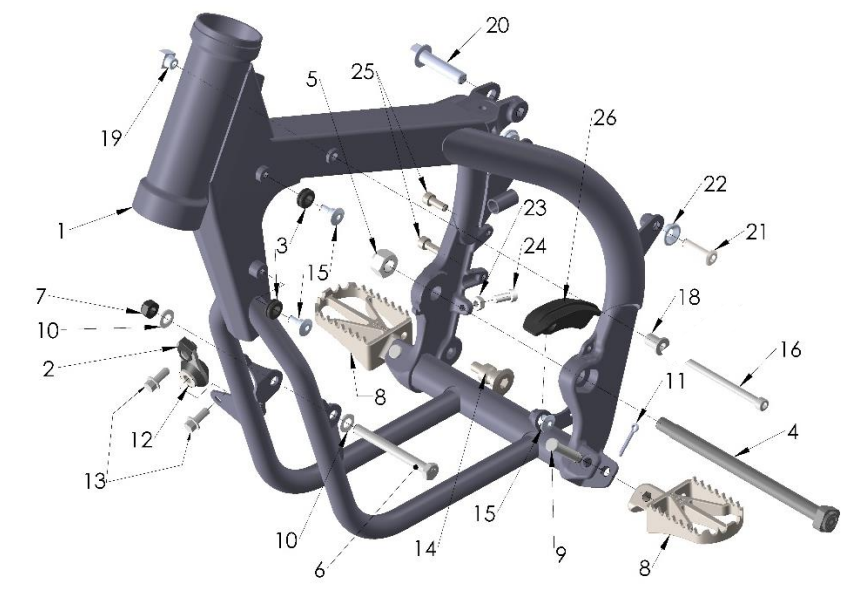

2022-CX50SR-KING Parts- Frame I

2022-CX50SR-KING Parts- Frame I
Add to Cart
Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.
Ref # Part # Image Product Price Quantity
1 FACS2021 R/B FACS2022 - FRAME - 2021 CX50 SR KING VENOM* $664.21
2 HCHA0003 6MM CLIP NUT-PLASTIC/PIPE MNT.* $2.20

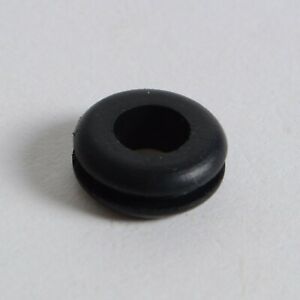

3 MCMUGR12 GROMMET - RADIATOR MOUNT - 50SR/65* $4.98
4 HCBH1203 M12 X 188.5 PIVOT BOLT* $32.14
5 HCNL1201 M12-1.25 LOCKNUT FINE THREAD $3.20
6 HCBH0880 M8 X 80 HH ZINC $6.66
7 HCNL0801 R/B HCNL0803 - M8 LOCKNUT CLEAR ZINC 10MM TALL'* $1.09 Back Order
8 TCMU0139 ULTRAWIDE FOOTPEG KIT 50cc / 65cc* $77.76
9 FCMU0031 CLEVIS PIN - FOOTPEG $4.32
10 HCWF0801 R/B HCWF0802 8MM FLAT WASHER'* $0.53 Back Order
11 HCCP0008 COTTERPIN - 1/8` X 3/4` 316 STAINLESS* $0.53
12 XCMU0033 ISOLATION MOUNT $18.34
13 HCBF0616 M6 X 16 FLANGED HD HEX 8MM ZINC $1.09
14 BCMU0027 PIVOT BOLT - ALUM BRAKE PEDAL* $22.12
15 HCSP0610 BOLT - SHOULDER - 6MM ALUMINUM - ANODIZED CLEAR $3.20
16 HCFH0675 M6 X 75 FLAT HEAD W ZINC* $1.09
18 TCMU0047 BUSHING-MOUNTING - FLAT HEAD FASTENER* $7.65
19 TCMU0017 BUSHING - TANK MOUNT - SQUARE THREADED NUT* $9.88
20 HCBF1040 R/B HCBF1039 M10 X 44 FLANGE HEAD ENGINERED FASTENER* $7.65
21 HCSP0701 7MM SPROCKET BOLT - 2018 $2.76

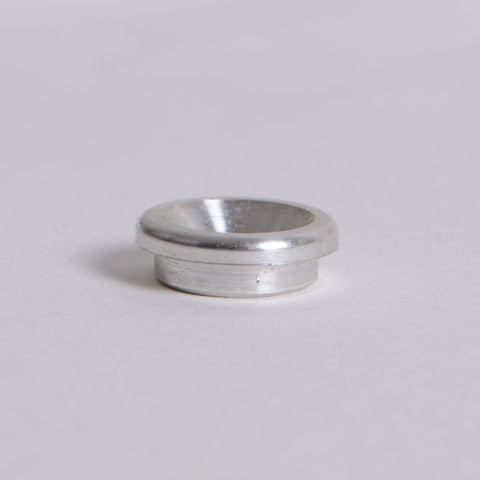

22 FCMU0109 COMPRESSION LIMITER - SUB FRAME - LOWER MOUNT-SR&65 2021* $10.55
23 HCNK0601 M6 LOCKNUT* $1.05
24 HCBC0602 M6 X 20 SHCS ZINC $1.09
25 HCBC0601 M6 X 16 SHCS ZINC $1.09

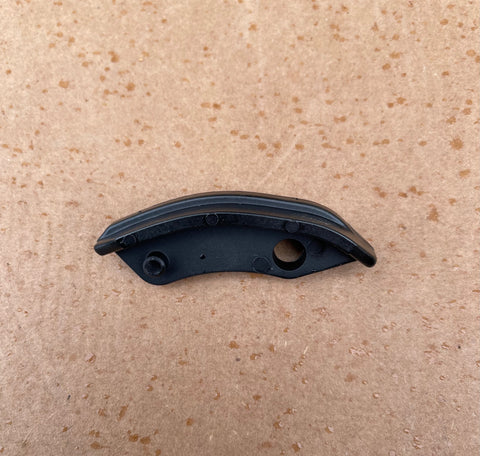

26 TCMU0044 CHAIN SLIDE - LOWER - 65/KING 2021* $16.56
ACCESSORY TCMU0106 SPRING - FOOTPEG STD KING/JR PEG $5.43
