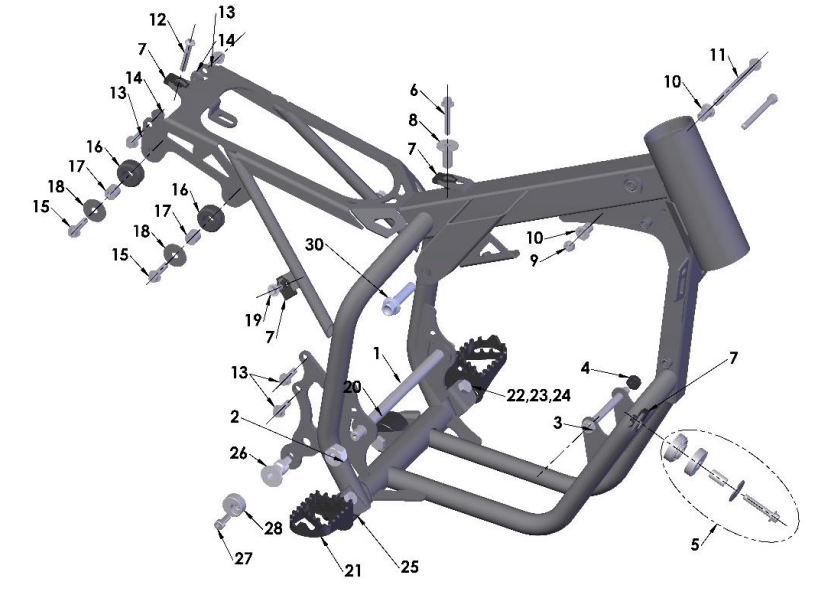

2022 CX50JR Parts – Frame – Mounting Hardware I
2022 CX50JR Parts – Frame – Mounting Hardware I
Item |
Refrence # |
Title |
price |
Quantity |
| 1 | HCBH1203 | Swingarm Bolt | $32.18 |
Out of stock |
| 2 | HCNL1201 | M12 Swingarm Lock Nut | $3.18 |
Out of stock |
| 3 | HCBH0880 | M8x80mm Socket Head Cap Screw | $6.68 |
Out of stock |
| 4 | HCNL0801 | M8 Locknut | $1.08 |
Out of stock |
| 5 | MCMUGR02 | Grommet Kit Pipe & Spacer | $9.88 |
Out of stock |
| 6 | HCBF0635 | M6x35mm Flange Head Bolt 5F | $1.08 |
Out of stock |
| 7 | HCHA0003 | 6mm Clipnut | $2.18 |
Out of stock |
| 8 | TCHA0004 | Bushing – Rear Tank Mounting M6x35mm Flange Head Bolt 5G | $9.88 |
Out of stock |
| 9 | HCNL0601 | M6 Locknut | $1.08 |
Out of stock |
| 10 | TCHA0006 | Bushing – Front Tank Mount (2 Req’d) | $7.68 |
Out of stock |
| 11 | HCBC0685 | M6x85mm Socket Head Cap Screw | $1.58 |
Out of stock |
| 12 | HCBB0635 | M6x35mm Button Head Cap Screw | $1.08 |
Out of stock |
| 13 | HCBF0620 | M6x20mm Flange Head Bolt | $1.08 |
Out of stock |
| 14 | HCNF0602 | M6 Nyloc Flange Nut 10C | $1.08 |
Out of stock |
| 15 | HCBF0625 | M6x25mm Flange Head Bolt | $1.08 |
Out of stock |
| 16 | MCMUGR03 | Grommet – Silencer (2 Req’d) | $4.89 |
Out of stock |
| 17 | TCKG0001 | Spacer For Exhaust Grommets | $2.78 |
Out of stock |
| 18 | HCWF1478 | Washer – Exhaust Grommet | $0.29 |
Out of stock |
| 19 | HCBF0616 | M6x16mm Flange Head Bolt | $1.08 |
Out of stock |
| 20 | FCC60020 | Chain Roller | $18.38 |
Out of stock |
| 21 | TAMU0005 | Footpegs (Pair) (Standard) | $63.48 |
Out of stock |
| 22 | FCMU0031 | Clevis pin - footpeg | $4.38 |
Out of stock |
| 23 | HCWF0803 | 8mm Flat Washer New Part number HCWF0801 | $1.06 |
Out of stock |
| 24 | HCCP0008 | Cotter pin 1/8 x 3/4 | $0.58 |
Out of stock |
| 25 | TCMU0106 | Footpeg Springs (Single Piece) (2 Req’d) | $5.48 |
Out of stock |
| 26 | BCMU0027 | Brake pivot bolt | $22.18 |
Out of stock |
| 27 | HCBC0601 | M6x16mm Socket Head Cap Screw | $1.08 |
Out of stock |
| 28 | FCEX0018 | Brake Adjust Eccentric | $13.28 |
Out of stock |
| 29 | HCBF1040 | M10x44 Flange Head Bolt 30 | $7.68 |
Out of stock |
