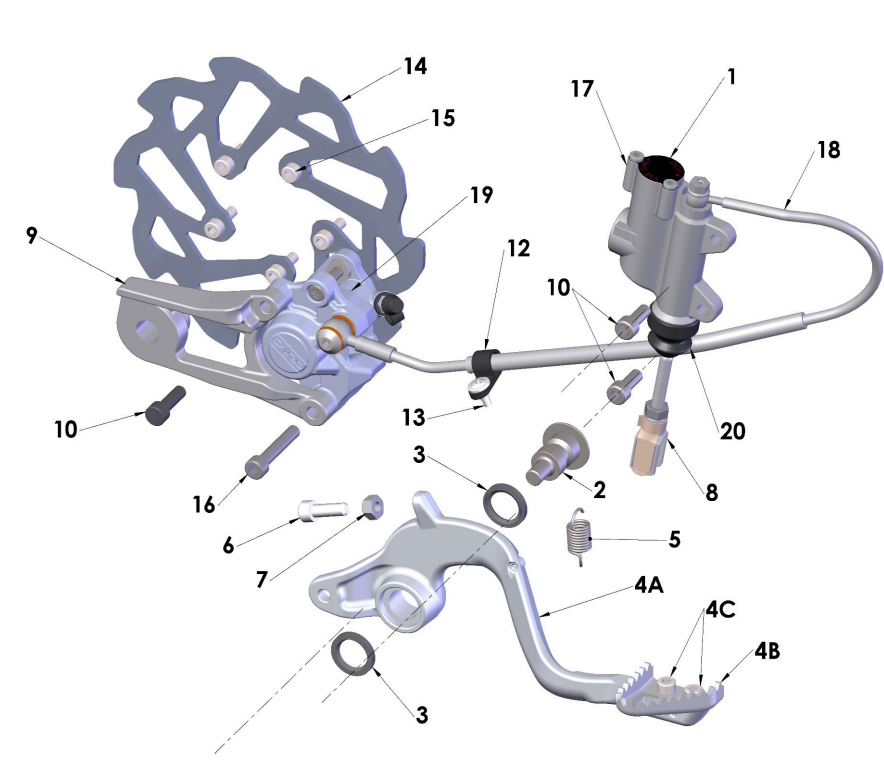

2021-CX50SRX Parts- Rear Brake

Ref #	Part #	Product	Price
1	BAMU0003	SEE NOTES BELOW - BRAKE ASSEMBLY - KING REAR - CARD 2 PISTON	$265.82
2	BCMU0027	PIVOT BOLT - ALUM BRAKE PEDAL	$22.12
3	BCMU0501	SEAL-BRAKE PEDAL	$3.20
4A	BCMU0062	PEDAL ASSEMBLY - REAR BRAKE - 2021 KG & 65	$83.32
4B	BCMU0023T	TOE PIECE - REAR BRAKE PEDAL	$18.90
4C	HCBC0501	M5 X 12 SHCS ZINC	$1.09
5	BCMUSP01	SPRING-BRAKE PEDAL	$5.43
6	HCBC0625	M6 X 25 SHCS ZINC	$1.09
7	HCNS0601	M6 NUT DIN 934 CLASS 8 ZINC CLEAR	$0.53
8	BAC60004	BRAKE PUSH ROD ASSEMBLY WITH CLEVIS	$14.33

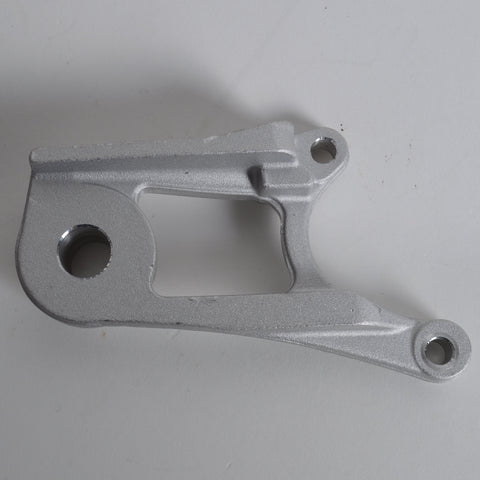

9	BCMU0045BLK	BRAKE CARRIER - 10IN REAR - CARD 2 PISTON - BLACK	$76.65
10	HCBC0602	M6 X 20 SHCS ZINC	$1.09
12	HCCC0000	CABLE CLAMP-3/8 INCH	$1.09
13	HCPP0832	#8X1/2 SELF TAPPING SCREW	$1.09
14	BCMU0222	ROTOR - BRAKE - FRONT/REAR - 50CC CARD	$65.52
15	HCBC0514	M5 X 14 SHCS ZINC	$1.09
16	HCBC0604	M6 X 35 SHCS ZINC	$1.09
17	BAC60015	R/B BAMU0013 - MASTER CYLINDER - REAR BRAKE - FORMULA	$154.54
18	BCMU0047	R/B BCMU0047B - REAR BRAKE - UNBENT - CARD KING	$54.39
19	BAMU0010A	CALIPER ASSY - 50 REAR - CARD 2 PISTON - ALUMINUM ORG	$143.42
20	BCMU0022	BOOT - REAR BRAKE - MASTER CYLINDER BOTTOM	$14.33
ACCESSORY	BKMU0009	PAD KIT - ORGANIC 505 - CARD 2 PISTON - PADS BOLT AND CLIP	$32.80
ACCESSORY	BCMU0038	SPRING - BRAKE PAD SEPARATING - CARD 2 PISTON	$9.88
ACCESSORY	BKMU0006A	KIT - PISTON AND SEALS - CARD 2 PISTON - ALUMINUM	$32.14
ACCESSORY	BKMU0008	BLEED SCREW W / CAP - CARD 2 PISTON	$13.67
ACCESSORY	BCC60034	CAP - BRAKE/CLUTCH BLEED SCREW	$5.08
ACCESSORY	BCKG0016	BRAKE-MSTR CYL RES. & CAP KIT-FORMULA	$22.12
ACCESSORY	BCKG0015	REBUILD KIT - MSTR CYL Ø11 - FORMULA REAR	$36.59
ACCESSORY	BKMU0007	KIT - BANJO BOLT AND WASHERS - CARD 2 PISTON	$13.22
ACCESSORY	MCMUBF03	BRAKE FLUID - BEL-RAY - RACING - 355ml	$18.00
ACCESSORY	BCMU0014	SHIM BRAKE CALIPER MOUNT 12 x 0.2 x 6	$1.09
TOOL	BKMU0003	TOOL - BLEEDING KIT - FORMULA CARD AJP	$43.26
