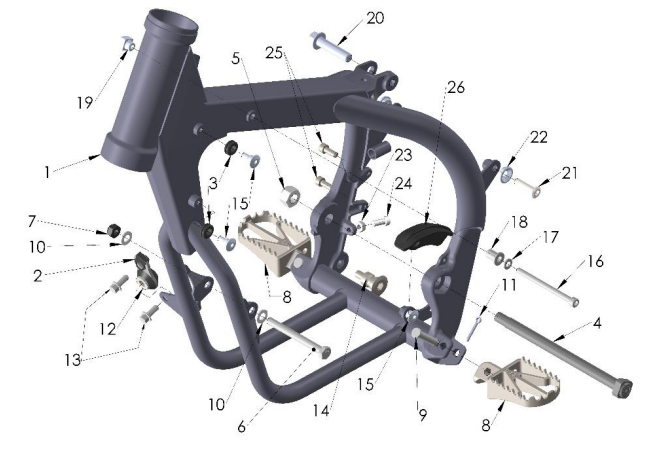

2021-CX50SRX Parts- Frame I

2021-CX50SRX Parts- Frame I
Add to Cart
Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.
Ref # Part # Image Product Price Quantity
1 FACS2021 R/B FACS2022 - FRAME - 2021 CX50 SR KING VENOM* $664.21
2 HCHA0003 6MM CLIP NUT-PLASTIC/PIPE MNT.* $2.20
3 MCMUGR12 GROMMET - RADIATOR MOUNT - 50SR/65* $4.98
4 GCMU0022 BOLT - STEEL - SWINGARM PIVOT - 2021 CX50 SHORTER* $32.14
5 HCNL1201 M12-1.25 LOCKNUT FINE THREAD* $3.20
6 HCBH0880 M8 X 80 HH ZINC* $6.66
7 HCNL0801 R/B HCNL0803 - M8 LOCKNUT CLEAR ZINC 10MM TALL* $1.09
8 TAMU0139 FOOTPEGS (PAIR)* $0.00
9 FCMU0031 CLEVIS PIN - FOOTPEG* $4.32
10 HCWF0801 R/B HCWF0802 8MM FLAT WASHER* $0.53
11 HCCP0008 COTTERPIN - 1/8` X 3/4` 316 STAINLESS* $0.53
12 XCMU0033 ISOLATION MOUNT $18.34
13 HCBF0616 M6 X 16 FLANGED HD HEX 8MM ZINC* $1.09
14 BCMU0027 PIVOT BOLT - ALUM BRAKE PEDAL* $22.12
15 HCSP0610 BOLT - SHOULDER - 6MM ALUMINUM - ANODIZED CLEAR* $3.20
16 HCBC0675 M6 X 75 SHCS ZINC* $1.75
17 HCWF0601 M6 FLAT WASHER DIN 125A ZINC CLEAR* $0.53
18 TCHA0006 BUSHING-MOUNTING* $7.65
19 TCMU0017 BUSHING - TANK MOUNT - SQUARE THREADED NUT* $9.88
20 HCBF1040 R/B HCBF1039 M10 X 44 FLANGE HEAD ENGINERED FASTENER* $7.65
21 HCSP0701 7MM SPROCKET BOLT - 2018* $2.76
22 FCMU0109 COMPRESSION LIMITER - SUB FRAME - LOWER MOUNT-SR&65 2021* $10.55
23 HCNK0601 M6 LOCKNUT* $0.00
24 HCBC06SP BRAKE ADJUSTER BOLT* $0.00
25 HCBC0601 M6 X 16 SHCS ZINC* $1.09
26 TCMU0044 CHAIN SLIDE - LOWER - 65/KING 2021* $16.56
ACCESSORY TCMU0106 SPRING - FOOTPEG STD KING/JR PEG* $5.43
