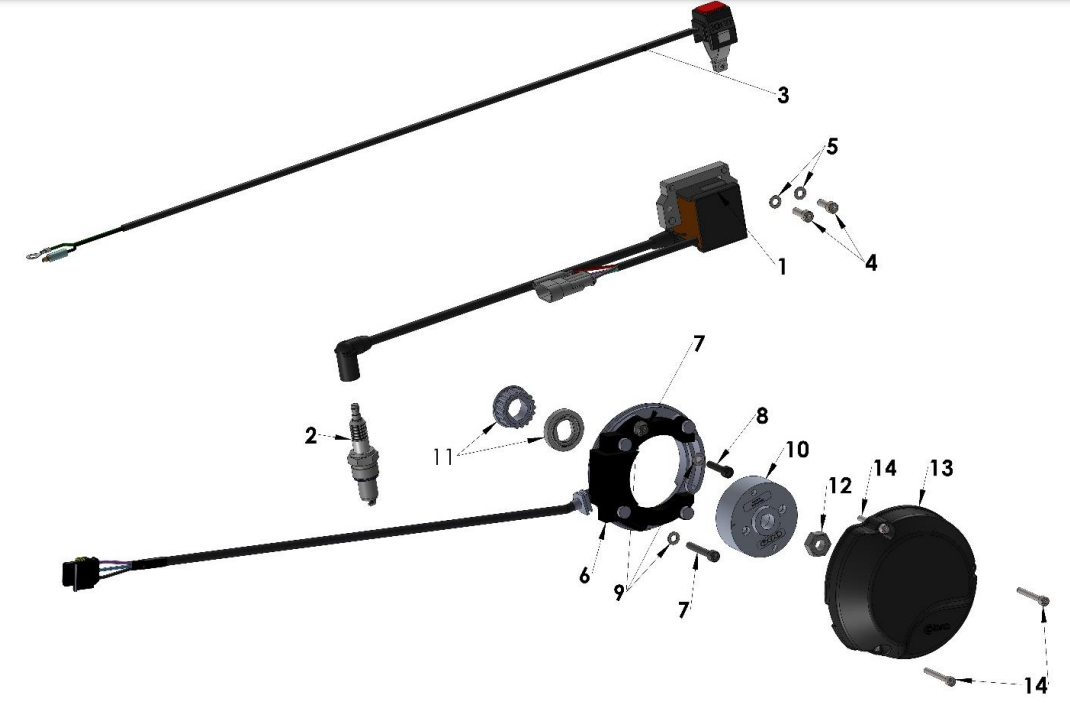

2021-CX50SRX Parts- Electrical System
Add to Cart
Add to Cart
Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.
| Ref # | Part # | Image | Product | Price | Quantity |
|---|---|---|---|---|---|
| 1 | ICMU0044 |  |
COIL/CDI - ANALOG - PVL - 2021* | $199.06 | |
| 2 | ECMU0010I |  |
R/B ECMU0151 SPARK PLUG AUTOLITE XS61 IRIDIUM | $12.77 | |
| 3 | FCMU0171 |  |
KILL SWITCH - 2021 KG & FWE* | $22.24 | |
| 4 | HCBC0514 |  |
M5 X 14 SHCS ZINC* | $1.09 | |
| 5 | HCWF0501 |  |
5MM FLAT WASHER* | $0.53 | |
| 6 | ICMU0023 |  |
STATOR - ANALOG 50 - W/NOTCH FOR BELT* | $159.00 | |
| 7 | HCBC0535 |  |
M5 X 35 SHCS ZINC | $1.09 | |
| 8 | HCBC0525 |  |
M5 X 25 SHCS ZINC | $1.09 | |
| 9 | HCWF0601 |  |
M6 FLAT WASHER DIN 125A ZINC CLEAR* | $0.53 | |
| 10 | ICMU0042 |  |
ROTOR - PVL - CX50 VENOM | $163.45 | |
| 11 | EKMU0035 | |
R/B EKMU0035P PLASTIC PARTS - WATERPUMP* | $25.46 | |
| 12 | HCNS1001 |  |
10MM X 1.25 NUT | $1.09 | |
| 13 | ECC60166 |  |
COVER - IGNITION - CX65 & VENOM* | $36.59 | |
| 14 | HCBC0401 |  |
M4 X 25 SHCS ZINC | $1.09 | |
| NOT SHOWN | ICMU0012 |  |
KEY FOR ROTOR* | $1.09 | |
| NOT SHOWN | FCMU0030 | |
COVER - KILL SWITCH SCREW* | $0.27 | |
| ACCESSORY | ICMU0017 |  |
SPARK PLUG CAP PVL 0 OHM* | $17.67 | |
| TOOL | MCMUTL70 |  |
FLYWHEEL & CLUTCH PULLER – CX50 | $27.68 | |
| TOOL | ECMU0079 |  |
TOOL - DIAL INDICATOR-SPARK TIMING* | $87.89 |
