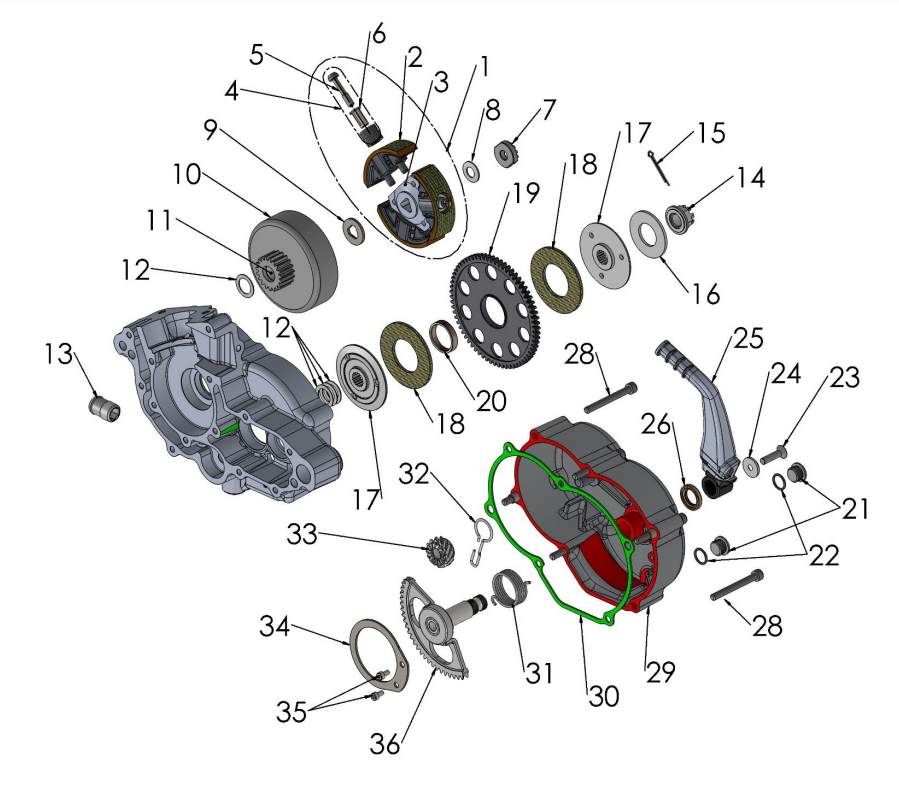

2020-CX50-King Parts- Engine Clutch and Kick Lever

Ref #	Part #	Product	Price
1	CAFW0500	CLUTCH - KING/FW - COMPLETE ASSY - 5GX	$321.46
2	CAFW0050	3 SHOES & STACKS W BOLTS - KING/FW - 5GX	$205.73
3	CCMU0005	CLUTCH ARBOR - TRI-SIDE	$127.84
4	CAFW0005	WASHER STACKS - KING/FW - SET OF 3 - CLUTCH - 5GX	$41.04
5	HCBT0001	BOLT - TORX - 5GX CLUTCH - M6 X 29 - SPECIAL	$8.77
6	CCMU0008	SLEEVE - CLUTCH STACK 5GX	$4.32
7	ECMU0018	CRANKSHAFT START NUT - CLUTCH NUT	$31.02
8	ECDC0030	BELLVILLE - LOCK WASHER - 10MM	$3.20
9	CCMU0007	SHIM - CLUTCH BACKING SPACER - 3 SPLINE	$14.33
10	ECMU0120	CLUTCH BASKET NEDL BRNG - V4	$99.57
11	ECMU0119	BEARING - NEEDLE - CLUTCH 3 SHOE	$14.33
12	ECMU0040	SHIM - CLUTCH TO HUB SPACER 22 x 0.76 x 15	$2.76
13	ECMU0132	FITTING-COOLANT	$27.68
14	ECMU0307	NUT V3 CFD	$20.56
15	HCCP0002	R/B HCCP0010 COTTERPIN 3/32 X 1 1/2\"	$0.53
16	ECMU0308	BELLEVILLE SPRING V3 CFD	$10.99
17	ECMU0306	SLIP HUB V3 CFD	$42.82
18	ECMU0249	FRICTION MATERIAL V3 CFD THICK	$18.78
19	ECMU0301	GEAR V3 CFD	$176.80
20	ECMU0305	BUSHING V3 CFD 7MM	$16.22
21	ECMU0272	PLUG - OIL FILL OIL DRAIN COOLANT VENOM	$12.11
22	ZCMUB014	O-RING - KICK SHAFT & OIL FILL PLUG	$1.42
23	HCFH0616	M6 X 16 FLAT HEAD W ZINC	$1.09
24	ECMU0250	WASHER - KICK ARM	$9.88
25	EAMU0011	LEVER KICK START ASSEMBLY	$83.32
26	ECDC0078	SEAL - KICKSTARTER	$4.32
28	HCBC0608	M6 X 55 SHCS ZINC	$1.09
29	ECMU0263	COVER -CLUTCH MACHINED W SEAL AND PIN - CX50 VENOM	$154.54
30	ZCMU0017	GASKET - CLUTCH COVER - CX50 VENOM	$14.78
31	ECMU0273	SPRING - KICKSTART RETURN - CX50 VENOM	$15.56
32	ECMUSP01	SPRING - KICK START DOG-SM.SPRING	$8.88
33	ECMU0207	KICKSTARTER SMALL GEAR	$37.70
34	ECMU0278	BRACKET - KICK SHAFT - CX50 VENOM	$7.21
35	HCBC0508	M5 X 8mm SHCS CLEAR ZINC	$4.43
36	ECMU0269	GEAR - KICKSTART - CX50 VENOM	$110.03
KIT	HKCP0001	COTTERPIN PACK OF 10 1/8\" X 1 1/4\"	$4.43
KIT	EKMU0002	KICKSTART PIVOT KIT SPRING-BALL-SCREW	$7.65
KIT	HKAM0022	HARDWARE KIT - CLUTCH SHIM	$29.50
KIT	EKMU0033	V3 CFD REFRESH KIT FOR 2011 & LATER	$50.61
TOOL	MCMUTL40	TOOL - CFD - CHECK STOP PIN - VENOM	$27.68
TOOL	MCMUTL18	TOOL - SPROCKET SOCKET - HIGH TORQUE	$43.26
TOOL	ECMU0078	TOOL - SOCKET - CLUTCH NUT - CX50	$35.59
TOOL	MCMUTL03	TOOL - PISTON STOP	$14.45
TOOL	MCMUTL70	FLYWHEEL & CLUTCH PULLER – CX50	$27.68
