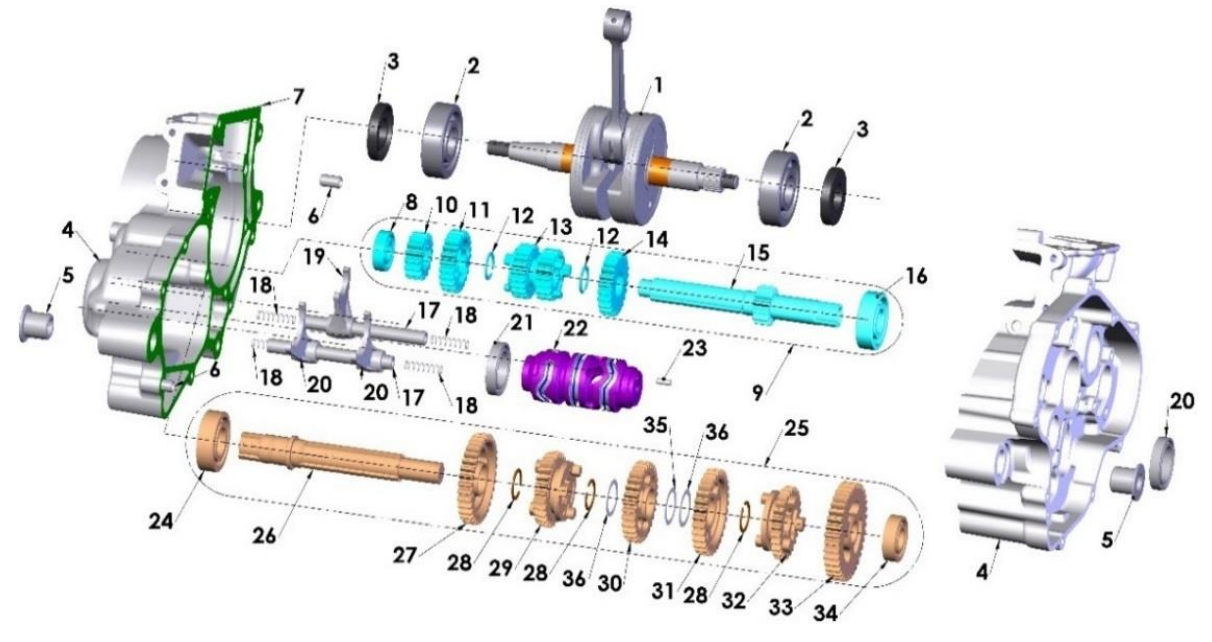

2019 Cobra CX65 Parts - Engine - Transmission

Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.

Ref #	Part #	Product	Price
1	ECC60219	R/B ECC60188 CRANKSHAFT 65 2017*	$372.65
2	ECR60007	BEARING - CRANKSHAFT - C4*	$38.81
3	ECDC0024	SEAL CRANKSHAFT	$10.33
ACCESSORY	EKEX0001	R/B EKC60007 - CONNECTING ROD KIT 90mm MANUAL ENG*	$92.23
4	EKC62015	ENGINE CASE SET W/B&S CX65 – 2015 AND NEWER*	$609.81
5	ECC60028	BUSHING - ENGINE PIVOT - 12MM	$13.22
6	ECWX0025	R/B ECMU0122 - HOLLOW DOWEL - 8.4 x 14 x 7*	$2.20
Case Screws - Short	HCBC0603	M6 X 30 SHCS ZINC	$1.09
Case Screws - Long	HCBC0604	M6 X 35 SHCS ZINC	$1.09
7	ZCC60014	GASKET - CENTERCASE PV 2015 CX65*	$15.56
8	ECKG0031	BEARING 6001 NO SEALS*	$9.88
9	EAC60041	PRIMARY SHAFT SUB-ASSY - 2016*	$277.42
10	ECC60306	GEAR,2ND INPUT, 16T INVOLUTE*	$51.05
11	ECDC0005	GEAR 5TH INPUT 23T*	$51.05
12	ECDC0003	SNAP RING EXT. 17MM*	$2.20
13	ECC60304	GEAR, 3/4TH INPUT,18/21T - INVOLUTE*	$71.53
14	ECDC0002	GEAR 6TH INPUT, 24T*	$55.50
15	ECC60301	SHAFT, TRANS.INPUT - INVOLUTE*	$110.03
16	ECMU0016	BEARING - 50CC CRANKSHAFT & 65CC TRANS	$22.12
17	ECC60070	ROD - SHIFTER - HOLLOW (USE WITH ECC60071 SPRING)*	$16.56
18	ECC60071	SPRING - SHIFTER ROD*	$5.43
19	ECDC0048	SHIFT FORK INPUT*	$54.39
20	ECDC0049	R/B ECC60256 - SHIFT FORK,OUTPUT*	$61.07
21	ECDC0022	BEARING SHIFT DRUM	$22.12
22	ECC60186	SHIFT DRUM - MACHINED - 2015 & NEWER*	$143.42
23	ECDC0051	DOWEL PIN 4X16.0	$2.20
24	ECKGBR01	BEARING OUTPUT- 50 & 65	$29.91
25	EAC60042	OUTPUT SHAFT SUB-ASSY - 2016*	$356.38
26	ECDC0307	SHAFT – TRANSMISSION OUTPUT – INVOLUTE 4 DOG SQUARE*	$110.03
27	ECC60114	GEAR,2ND OUTPUT,34T, 4 DOG SQUARE*	$58.40
28	ECDC0017	SNAP RING EXT.18MM HEAVY DUTY*	$2.76
29	ECC60323	GEAR, 5TH OUTPUT, 28T, INVOLUTE 4LD - POLISHED*	$74.88
30	ECC60111	R/B ECC60111M - GEAR,4TH OUTPUT,30T, 4 DOG SQUARE*	$58.40
31	ECC60110	GEAR, 3RD OUTPUT, 31T, 4 DOG SQUARE*	$58.40
32	ECC60325	GEAR,6TH OUTPUT,26T, INVOLUTE - 4LD*	$74.88
33	ECC60116	GEAR,1ST OUTPUT,37T, 4 DOG SQUARE - POLISHED*	$58.40
34	ECDC0021	BEARING OUTPUT	$27.68
35	ECC60160	SHIM – TRANSMISSION .2mm THK*	$4.32
36	ECC60161	SHIM - TRANSMISSION - 25 x 0.5 x 20*	$1.91
ACCESSORY	ECMU0040	SHIM - CLUTCH TO HUB SPACER 22 x 0.76 x 15	$2.76
ACCESSORY	ECMU0040T	SHIM - CLUTCH TO HUB SPACER 22 x 0.38 x 15	$2.76
	EAC62017	ENGINE - 2017 CX65 PV*	$2,724.13
