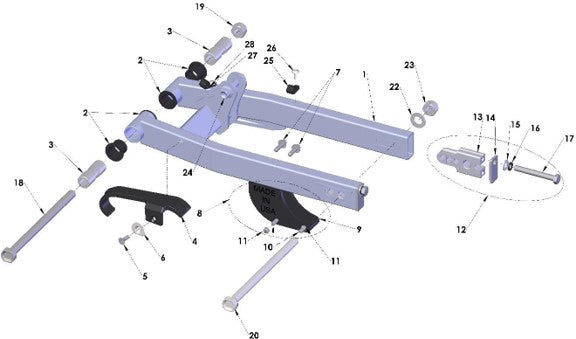

2018 Cobra 50P3 Parts – Swingarm Assembly

Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.

Ref #	Part #	Product	Price	Quantity
1	GAMU2017	SWINGARM - WELDED ASSY - CM/P3 2017*	$194.60
2	GCCS0001	SPACER - SWNGARM PIVOT TUBE KG 10-16 / ALL 50cc 2017- LATER*	$13.67
3	GCCJ0001	SPACER - SWINGARM PIVOT TUBE - P3/JR THRU 2016*	$13.67
4	GCMU0040	SWINGARM CHAIN GUARD - CX50 - WITH MOHAWK*	$16.56
5	HCFH0512	M5 X 12 FLAT HEAD ZINC*	$1.09
6	HCWF0501	5MM FLAT WASHER*	$0.53
7	HCBF0620	M6 X 20 FLANGE HD HEX 8MM ZINC 8.8´*	$1.09	Back Order
8	PAKG0001	CHAIN BLOCK ASSY*	$30.02
9	PCKG0004	CHAIN GUIDE - SLIDER BOTTOM*	$10.99
10	HCBFT640	R/B HCBFT635 M6 X 40 FLAT HEAD	$1.09
11	HCNL0601	M6 LOCKNUT*	$1.09
12	FAMU0005	WHEEL PULL ASSEMBLY*	$32.25
13	FCMU0203	WHEEL PULL*	$24.35
14	FCMU0202	ENDCAP - WHEEL PULL - KING & CM*	$8.77
15	HCWF0801	R/B HCWF0802 8MM FLAT WASHER'*	$0.53	Back Order
16	HCWL0801	8MM LOCK WASHER STANDARD*	$0.53
17	HCBH0810	M8 X 65 HH FULL THREADS ZINC*	$1.54
18	HCBH1203	M12 X 188.5 PIVOT BOLT*	$32.14
19	HCNL1201	M12-1.25 LOCKNUT FINE THREAD'*	$3.20	Back Order
20	WCMU0016	M12 X 195MM AXLE / PIVOT BOLT*	$32.14
22	HCWF1202	12MM FLAT WASHER'*	$0.53	Back Order
23	HCNS1201	R/B HCNL1201 - 12MM NUT*	$1.09
24	HCBF1040	R/B HCBF1039 M10 X 44 FLANGE HEAD ENGINERED FASTENER*	$7.65
25	HCCC0006	CABLE CLAMP-7/16 INCH BLACK	$1.09
26	HCPP0832	#8X1/2 SELF TAPPING SCREW*	$1.09
27	HCCC0005	GUIDE - REAR BRAKE HOSE*	$5.88
28	HCPP0834	#8X3/4 SELF TAPPING SCREW*	$1.09
