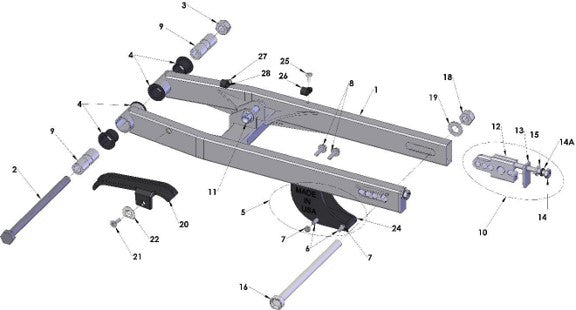

2018 Cobra 50FWE Parts – Swingarm Assembly

Ref #	Part #	Product	Price	Quantity
1	GACSBW10	SWINGARM WELDED ASSY EXTENDED FWE	$265.82
2	HCBH1203	M12 X 188.5 PIVOT BOLT	$32.14
3	HCNL1201	M12-1.25 LOCKNUT FINE THREAD	$3.20
4	GCMU0001	SWINGARM BUSHING 1-INDIVIDUAL	$10.55
5	PAFW0001	CHAIN BLOCK ASSY - FACTORY WORKS EDITION - FWE	$49.94
6	HCBFT640	R/B HCBFT635 M6 X 40 FLAT HEAD	$1.09
7	HCNL0601	M6 LOCKNUT	$1.09
8	HCBF0620	M6 X 20 FLANGE HD HEX 8MM ZINC 8.8´	$1.09	Back Order
9	GCCS0001	SPACER - SWNGARM PIVOT TUBE KG 10-16 / ALL 50cc 2017- LATER	$13.67
10	FAMU0005	WHEEL PULL ASSEMBLY	$32.25
11	HCBF1040	R/B HCBF1039 M10 X 44 FLANGE HEAD ENGINERED FASTENER	$7.65
12	FCMU0203	WHEEL PULL	$24.35
13	FCMU0202	ENDCAP - WHEEL PULL - KING & CM	$8.77
14	HCBH0810	M8 X 65 HH FULL THREADS ZINC	$1.54
14A	HCWL0801	8MM LOCK WASHER STANDARD	$0.53
15	HCWF0801	R/B HCWF0802 8MM FLAT WASHER'	$0.53	Back Order
16	WCMU0016	M12 X 195MM AXLE / PIVOT BOLT	$32.14
19	HCWF1202	12MM FLAT WASHER	$0.53
20	GCMU0040	SWINGARM CHAIN GUARD - CX50 - WITH MOHAWK	$16.56
21	HCFH0516	M5 X 16 FLAT HEAD	$1.09
22	GCMU0038	WASHER - RETAINING - SWINGARM GUARD	$4.32
23	HCNL0501	M5 LOCKNUT	$1.09
24	PCKG0004	CHAIN GUIDE - SLIDER BOTTOM	$10.99
25	HCCC0006	CABLE CLAMP-7/16 INCH BLACK	$1.09
26	HCPP0832	#8X1/2 SELF TAPPING SCREW	$1.09
27	HCCC0005	GUIDE - REAR BRAKE HOSE	$5.88
28	HCPP0834	#8X3/4 SELF TAPPING SCREW	$1.09
