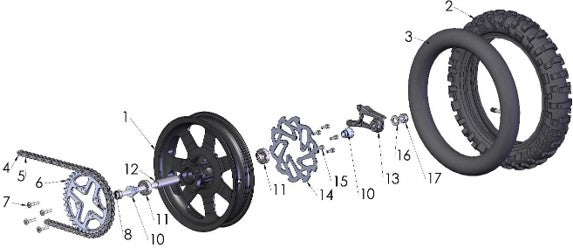

2018 Cobra 50FWE Parts – Rear Wheel

Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.

Ref #	Part #	Product	Price	Quantity
1	WAMUR018BLK	WHEEL ASSEMBLY- REAR - CARD 2 PISTON BRAKES - BLK*	$360.41
2	WCMU1075D32	R/B WCMU1075D33 - TIRE - REAR - 70/100-10 - DUNLOP MX3S*	$42.27
3	WCMUTU10	TUBE - 250/275 - 10 INCH*	$9.43
4	PCMU0001	CHAIN - MASTER LINK*	$2.20
5	PCMU0100	R/B PCMU0102 - CHAIN - KING - 420H 100L*	$24.35
6	PCC50238	SPROCKET 38T - 415 - ALUM - PDM BOLTS*	$64.88
7	HCSP0701	7MM SPROCKET BOLT - 2018*	$2.76
7A	HCWF0701	7MM FLAT WASHER*	$0.53
7B	HCNL0701	M7 LOCKNUT*	$1.09
8	WCMU0016	M12 X 195MM AXLE / PIVOT BOLT´*	$32.14	Back Order
10	WCMU0101BLK	SPACER WHEEL FR & RR LH - BLACK*	$14.33
11	WCMU0120	BEARING - WHEEL-SEALED HD	$20.01
12	WCMU0041	SPACER - WHEEL BEARING - REAR 50CC - 2018 - CURRENT*	$14.33
13	BCMU0045	BRAKE CARRIER - 10IN REAR - CARD 2 PISTON*	$76.65
14	BCMU0222	ROTOR - BRAKE - FRONT/REAR - 50CC CARD*	$65.52
15	HCBC0514	M5 X 14 SHCS ZINC'*	$1.09	Back Order
16	HCWF1202	12MM FLAT WASHER'*	$0.53	Back Order
17	HCNL1201	M12-1.25 LOCKNUT FINE THREAD'*	$3.20	Back Order
ACCESSORY	HKMU0002	BOLT KIT - REAR SPROCKET - FLAT HEAD- CX50*	$16.67
