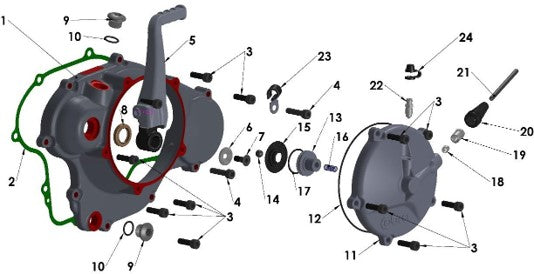

2017 Cobra CX65 Parts – Engine – Clutch / Kick Cover

Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.

Ref #	Part #	Product	Price	Quantity
1	ECC60178	R/B ECC60239 -CLUTCH COVER - CX65 2015 - W/O BEARING OR SEAL*	$199.06
2	ZCC60016	GASKET - CLUTCH COVER PV 2015 CX65*	$13.22
3	HCBC0602	R/B HCBC0620 - M6 X 20 SHCS ZINC*	$1.09
4	HCBC0625	M6 X 25 SHCS ZINC	$1.09
5	EAMU0011	LEVER KICK START ASSEMBLY*	$83.32
6	ECMU0250	WASHER - KICK ARM	$9.88
7	HCFH0616	M6 X 16 FLAT HEAD W ZINC	$1.09
8	ECDC0078	SEAL - KICKSTARTER	$4.32
9	ECMU0168	R/B ECMU0272 - OIL FILL PLUG, ALUMINUM, O-RING STYLE	$10.99
10	ZCMUB014	O-RING - KICK SHAFT & OIL FILL PLUG.*	$1.42	Back Order
11	ECC60179	CLUTCH COVER CAP - CX65 2015*	$87.88
12	ZCC60013	ORING - CLUTCH COVER CAP - 2015 CX65*	$2.76
13	CCC60005	PISTON - CLUTCH SLAVE - CX65	$22.12
14	CCEX0009	BALL 5/16`` CLUTCH PUSH	$2.20
15	CCC60007	BELLOWS - CLUTCH SLAVE - 2017 & NEWER*	$9.88
16	CCC60006	CLUTCH SLAVE PRELOAD SPRING*	$6.54
17	ZCMUOR35	O-RING - CLUTCH SLAVE (MINERAL OIL) & STEERING STEM SEAL	$2.20
18	BCMU0017	FERRULE- COMPRESSION - MAGURA	$1.09
19	BCMU0020	CLUTCH - SLEEVE NUT M10-1 - MAGURA	$4.43
20	BCMU0021	COVER - FOR SLEEVE NUT*	$6.54
21	CCC60040	R/B CCC60041 CLUTCH LINE - FORGED CLUTCH CAP - 2017 & UP*	$21.01
22	BCMU0018	BLEED SCREW 8MM x 1.00	$5.43
23	CCC60030	BRACKET - CLUTCH LINE HOLDER*	$6.66
24	BCC60034	CAP - BRAKE/CLUTCH BLEED SCREW	$5.08
ACCESSORY	EKMU0002	KICKSTART PIVOT KIT SPRING-BALL-SCREW*	$7.65
