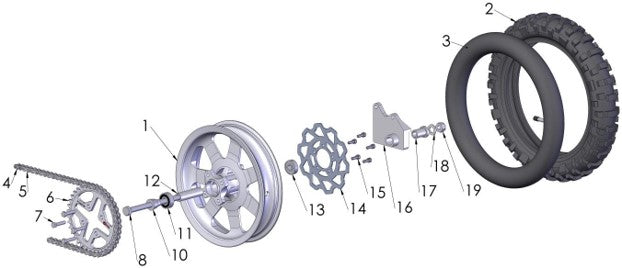

2017 Cobra 50SR (King) Parts – Rear Wheel

Ref #	Part #	Product	Price	Quantity
1	WCKG0016BLK	WHEEL MACHINED 10\" REAR DISC - BLACK	$360.41
2	WCMU1075D	R/B WCMU1075D32 - TIRE - REAR - 70/100-10 - DUNLOP MX52	$38.93
3	WCMUTU10	TUBE - 250/275 - 10 INCH	$9.43
4	PCMU0001	CHAIN - MASTER LINK	$2.20
5	PCMU0100	R/B PCMU0102 - CHAIN - KING - 420H 100L	$24.35
6	PCMU0238	R/B PCC50238 (WITH HKMU0002 BOLT KIT IF NEEDED)	$58.84
7	HCBH0702	M7 X 30 HH ZINC	$1.09
7A	HCWF0701	7MM FLAT WASHER	$0.53
7B	HCNL0701	M7 LOCKNUT	$1.09
8	WCMU0016	M12 X 195MM AXLE / PIVOT BOLT´	$32.14	Back Order
10	WCMU0101	SPACER WHEEL 50CC FR & RR LH	$14.33
11	WCMU0120	BEARING - WHEEL-SEALED HD	$20.01
12	WCMU0035	SPACER - WHEEL BEARING - REAR 50CC - THROUGH 2017	$14.33
13	WCMU0020	BEARING - WHEEL (SEALED)	$16.56
14	BCMU0502	BRAKE - ROTOR REAR - 160MM	$65.52
15	HCBC0601	R/B HCBC0616 - M6 X 16 SHCS ZINC	$1.09
16	BCKG0103	CARRIER - BRAKE CALIPER - REAR 50CC	$43.26
17	BCKG0006	SPACER - FLOATING CALIPER CARRIER - 50CC	$14.33
18	HCWF1202	12MM FLAT WASHER'	$0.53
19	HCNL1201	M12-1.25 LOCKNUT FINE THREAD'	$3.20
