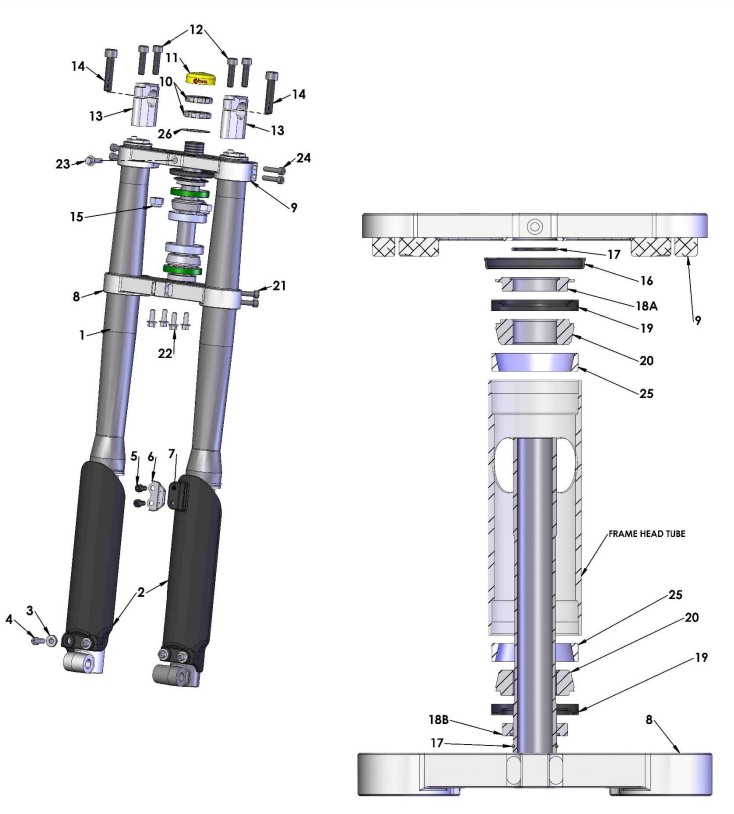

2017 Cobra 50SR (King) Parts – Forks & Triple Clamps

Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.

Ref #	Part #	Product	Price
1	KCMU0011	GUARD - FORK - SET 50CC (NO HARDWARE)*	$29.91
2	TCC60019	WASHER - CHAIN SLIDER AND FORK GUARD	$2.76
3	HCBC0601	M6 X 16 SHCS ZINC*	$1.09
4	BCC60015	BRAKELINE CLAMP*	$5.54
5	HCBC0612	M6 X 12 SHCS ZINC*	$1.09
6	HCNL0601	M6 LOCKNUT*	$1.09
7	FACS0007	TRIPLE CLAMP BOTTOM ASSY KING 2014 32MM*	$205.73
8	FCCS0053	TRIPLE CLAMP TOP KING 2014 32MM*	$143.42
9	HCNJ0102	JAM NUT STEERING STEM*	$14.33
10	FCMU0151	STEERING STEM CAP	$5.54
11	HCBC0806	M8 X 30 SHCS ZINC*	$1.09
12	TKMU0404	HANDLE BAR RISER KIT - SHORT (STOCK)	$48.83
13	HCNL1001	M10 LOCKNUT-1.5 THREAD PITCH	$1.64
13A	ZCMUOR35	O-RING - CLUTCH SLAVE (MINERAL OIL) & STEERING STEM SEAL*	$2.20
14	FCMU0038	SPACER STEERING STEM W DUST SHIELD PILOT*	$8.77
15	FCMU0037	SPACER STEERING STEM (THICK)*	$8.77
16	FCMU0039	SEAL - STEERING STEM - 8MM THK	$18.78
17	FCMU0004	BEARING - STEERING TAPERED	$16.56
18A	HCBC0603	M6 X 30 SHCS ZINC*	$1.09
18B	HCBF0616	M6 X 16 FLANGED HD HEX 8MM ZINC*	$1.09
19	HCBC0625	M6 X 25 SHCS ZINC*	$1.09
20	FCMU0011	RACE FOR STEERING HEAD*	$8.77
21	HCWS1015	SHIM - WASHER 1\" x 1.5\" x.020\" STEERING STEM*	$3.20
22	FKMU0006	KIT - STEERING STEM SEALS AND SPACERS 2016-2018	$99.02
23	MCMUTL11	TOOL - SOCKET JAM NUT STEERING HEAD	$43.26
24	MCMUTL44	TOOL - STEERING STEM BEARING AND SEAL INSTALLER AS*	$72.20
