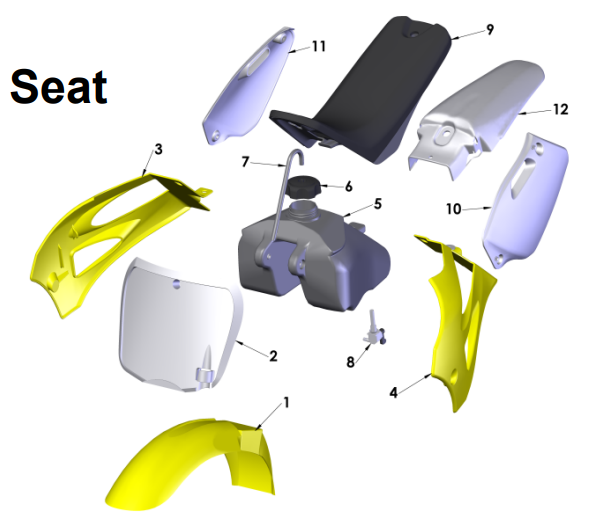

2017 Cobra 50P3 Parts – Plastic & Seat

Ref #	Part #	Product	Price
1	TCHA0107FLL	FENDER - FRONT DRILLED - FLO YELLOW JR/P3	$31.16
1A	HCBF0616	M6 X 16 FLANGED HD HEX 8MM ZINC	$1.09
2	TCC60002W	NUMBER PLATE FRONT- WHITE	$19.45
3 & 4	TCCJ0005FLL	SHROUD SET - FLO YELLOW JR/P3	$43.26
5	TCCJ0010	FUEL TANK - BLACK - JR/P3 - 2017 & NEWER	$150.09
5A	HCFH0625	M6 X 25 FLAT HEAD W ZINC	$1.09
5B	TCHA0005	SPACER-SEAT MOUNT	$7.65
5C	TCHA0006	BUSHING-MOUNTING	$7.65
5D	HCBC0685	M6 X 85 SHCS ZINC	$1.54
5E	HCNL0601	M6 LOCKNUT	$1.09
5F	HCBC0645	M6 X 45 SHCS ZINC	$1.09
5G	TCHA0004	BUSHING-REAR TANK MOUNTING	$9.88
6	TCHA0002	CAP - FUEL TANK- 65/KING/JR/P3	$22.12
7	TCHA0003	HOSE FUEL TANK CAP - 65/KING/JR/P3	$2.76
8	TCMU0151	PETCOCK - FUEL - NO RESERVE	$20.01
9	TCCM0007	SEAT - 50CC JR/P3 GRIPPER	$98.90
9A	TCCM0007C	SEAT - 50CC JR/P3 GRIPPER - COVER	$49.94
9B	HCBB0604	M6X35mm SHCS – SEAT HOLDING	$0.00
9C	MCMU0013	STRAP HANDLE JR/P3	$12.11
10 & 11	TCCJ0003W	NUMBER PLATES SIDE (SET) WHITE - JR/P3	$41.15
10B	HCBF0620	M6 X 20 FLANGE HD HEX 8MM ZINC 8.8	$1.09
10C	HCNF0602	6MM NYLOC FLANGE NUT CLASS 10	$1.09
12	TCHA0112FLL	FENDER - REAR - JR/P3 - FLO YELLOW	$27.82
ACCESSORY	TCMU2012	GRAPHIC KIT 2012 ALL BIKES	$15.44
ACCESSORY	TKCJ0002B	BODYWORK KIT - 2010 - 2018 JR/P3 - BLACK	$135.63
ACCESSORY	TKCJ0002W	BODYWORK KIT - 2010 - 2018 JR/P3 - WHITE	$135.63
ACCESSORY	TKCJ0002Y	BODYWORK KIT - 2010 - 2018 JR/P3 - YELLOW	$135.63
ACCESSORY	TKCJ0002FLO	R/B TKCJ0002FXX - BODYWORK KIT - 2010 - 2018 JR/P3 - FLO	$135.63
