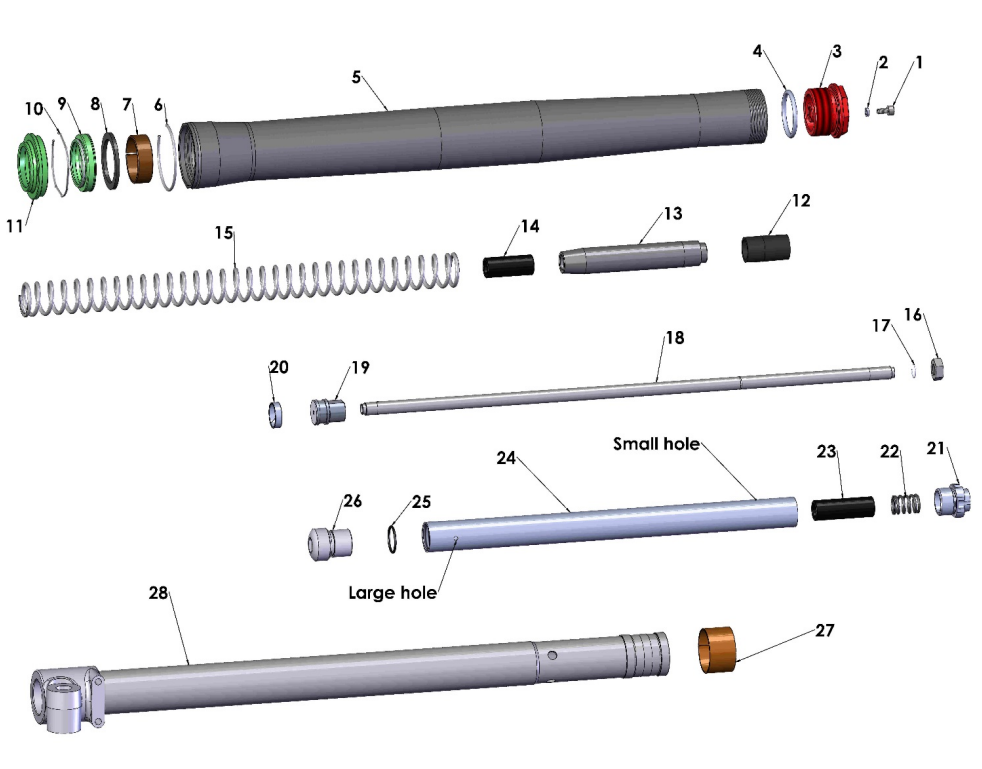

2017 Cobra 50P3 Parts – Forks – Leg Assembly

Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.

Ref #	Part #	Product	Price
1	HCBC0408	M4 X 8 SHCS CLEAR ZINC	$1.09
2	ZCKG0001	GASKET BLEED SCREW FORK	$0.86
3	KCCL0001	FORK CAP - NON ADJUSTABLE - 32MM USD*	$87.89
4	ZCMUOR18	O-RING - 3MM X 27MM ID	$2.20
5	KCCS0005	FORK - OUTER TUBE 32MM*	$220.86
6	KCCS0035	FORK - RING CLIP - OUTER WEAR 32MM	$5.43
7	KCCS0006	FORK - GLIDE RING BOTTOM 32MM	$14.33
8	KCCS0032	SPACER - FORK SEAL- 32MM	$7.65
9	KKCS0004	FORK - SEAL & SWIPER KIT - 32MM SKF (1 seal 1 swiper)*	$39.93
10	KCCS0002	FORK - SEAL RETAINER RING CLIP - 32MM	$6.54
12	KCC60067	FORK - JOUNCE BUMPER*	$8.32
13	KCCS0013	GUIDE - FORK SPRING - 32MM*	$22.12
14	KCCL0002	SPACER - SPRING GUIDE EXTEND*	$13.33
15	KCCJ3221	SPRING - FORK 0.21 KG/MM - 32MM JR/P3*	$48.88
15	KCCJ3218	SPRING - FORK 0.18 KG/MM - 32MM JR/P3*	$48.88
15	KCCJ3225	SPRING - FORK 0.25 KG/MM - 32MM JR/P3*	$48.88
16	HCNJ3824	NUT JAM 3/8-24 CLASS 8*	$3.32
17	KCC60068	FORK - RING CLIP - SPRING GUIDE RETAINER*	$4.76
18	KCMU0024	DAMPER TUBE - FORK - ADJUSTABLE*	$47.83
19	KCCL0003	FORK - DAMPER CAP W PISTON - P3*	$27.68
20	KCCS0018	FORK - MID VALVE GLIDE RING*	$9.88
21	KCMU0013	FORK - CARTRIDGE CAP*	$32.14
22	KCKG0050	FORK - TOP OUT SPRING	$8.77
23	KCCJ0002	FORK - TRAVEL LIMITER SPACER*	$15.44
24	KCCL0005	FORK - CARTRIDGE TUBE - P3*	$49.94
25	ZCKGB017	O-RING FORK BOTTOM PLUG	$2.20
26	KCC60057	FORK - BOTTOM PLUG - SMART LEG*	$32.14
27	KCCS0007	FORK - GLIDE RING TOP 32MM	$14.33
28	KAMU0001	FORK LOWER COMPLETE BRAKE SIDE - 32MM*	$216.86
28	KAMU0002	FORK LOWER COMPLETE NON-BRAKE SIDE - 32MM*	$216.86
