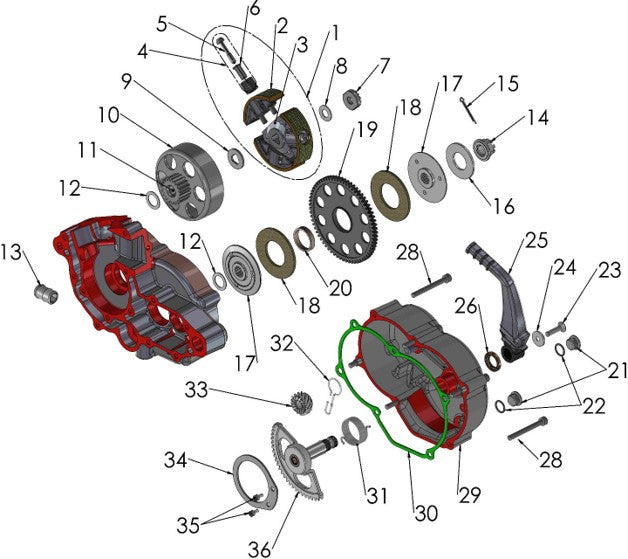

1
|
CACJ0100 |
 |
CLUTCH - JR/P3 - COMPLETE ASSY - 5GX* |
$317.01 |
|
|
2
|
CACJ0010 |
 |
3 SHOES & STACKS W BOLTS - JR/P3 - 5GX |
$205.73 |
|
|
3
|
CCMU0005 |
 |
CLUTCH ARBOR - TRI-SIDE |
$127.84 |
|
|
4
|
CACJ0001 |
 |
WASHER STACKS - JR/P3 - SET OF 3 - CLUTCH - 5GX |
$38.81 |
|
|
5
|
HCBT0001 |
 |
BOLT - TORX - 5GX CLUTCH - M6 X 29 - SPECIAL |
$8.77 |
|
|
6
|
CCMU0008 |
 |
SLEEVE - CLUTCH STACK 5GX |
$4.32 |
|
|
7
|
ECMU0018 |
 |
CRANKSHAFT START NUT - CLUTCH NUT |
$31.02 |
|
|
8
|
ECDC0030 |
 |
BELLVILLE - LOCK WASHER - 10MM |
$3.20 |
|
|
9
|
CCMU0007 |
 |
SHIM - CLUTCH BACKING SPACER - 3 SPLINE |
$14.33 |
|
|
10
|
ECMU0120 |
 |
CLUTCH BASKET NEDL BRNG - V4 |
$99.57 |
|
|
11
|
ECMU0119 |
 |
BEARING - NEEDLE - CLUTCH 3 SHOE |
$14.33 |
|
|
12
|
ECMU0040 |
 |
SHIM - CLUTCH TO HUB SPACER 22 x 0.76 x 15 |
$2.76 |
|
|
13
|
ECMU0132 |
 |
FITTING-COOLANT |
$27.68 |
|
|
14
|
ECMU0307 |
 |
NUT V3 CFD |
$20.56 |
|
|
15
|
HCCP0002 |
 |
R/B HCCP0010 COTTERPIN 3/32 X 1 1/2\"* |
$0.53 |
|
|
16
|
ECMU0308 |
 |
BELLEVILLE SPRING V3 CFD |
$10.99 |
|
|
17
|
ECMU0306 |
 |
SLIP HUB V3 CFD* |
$42.82 |
|
|
18
|
ECMU0249 |
 |
FRICTION MATERIAL V3 CFD THICK* |
$18.78 |
|
|
19
|
ECMU0301 |
 |
GEAR V3 CFD* |
$176.80 |
|
|
20
|
ECMU0305 |
 |
BUSHING V3 CFD 7MM* |
$16.22 |
|
|
21
|
ECMU0272 |
 |
Anodized Oil Fill Plugs |
$12.18 |
|
|
22
|
ZCMUB014 |
 |
O-RING - KICK SHAFT & OIL FILL PLUG |
$1.42 |
|
|
23
|
HCFH0616 |
|
M6 X 16 FLAT HEAD W ZINC |
$1.09 |
|
|
24
|
ECMU0250 |
 |
WASHER - KICK ARM |
$9.88 |
|
|
25
|
EAMU0011 |
 |
LEVER KICK START ASSEMBLY* |
$83.32 |
|
|
26
|
ECDC0078 |
 |
SEAL - KICKSTARTER |
$4.32 |
|
|
28
|
HCBC0608 |
|
R/B HCBC0655 - M6 X 55 SHCS ZINC* |
$1.09 |
|
|
29
|
EAMU0018 |
|
CLUTCH COVER ASSEMBLY WITH SEAL AND PIN -2016* |
$0.00 |
|
|
30
|
ZCMU0017 |
 |
GASKET - CLUTCH COVER - CX50 VENOM* |
$14.78 |
|
|
31
|
ECMU0273 |
 |
SPRING - KICKSTART RETURN - CX50 VENOM |
$15.56 |
|
|
32
|
ECMUSP01 |
 |
SPRING - KICK START DOG-SM.SPRING |
$8.88 |
|
|
33
|
ECMU0207 |
 |
KICKSTARTER SMALL GEAR |
$37.70 |
|
|
34
|
ECMU0278 |
 |
BRACKET - KICK SHAFT - CX50 VENOM* |
$7.21 |
|
|
35
|
HCBC0508 |
 |
M5 X 8mm SHCS CLEAR ZINC |
$4.43 |
|
|
36
|
ECMU0269 |
|
GEAR - KICKSTART - CX50 VENOM* |
$110.03 |
|
|
KIT
|
HKCP0001 |
 |
COTTERPIN PACK OF 10 1/8\" X 1 1/4\" |
$4.43 |
|
|
KIT
|
EKMU0002 |
 |
KICKSTART PIVOT KIT SPRING-BALL-SCREW* |
$7.65 |
|
|
KIT
|
HKAM0022 |
 |
HARDWARE KIT - CLUTCH SHIM* |
$29.50 |
|
|
KIT
|
EKMU0033 |
 |
V3 CFD REFRESH KIT FOR 2011 & LATER* |
$50.61 |
|
|
TOOL
|
MCMUTL40 |
 |
TOOL - CFD - CHECK STOP PIN - VENOM |
$27.68 |
|
|
TOOL
|
MCMUTL18 |
 |
TOOL - SPROCKET SOCKET - HIGH TORQUE* |
$43.26 |
|
|
TOOL
|
ECMU0078 |
 |
TOOL - SOCKET - CLUTCH NUT - CX50* |
$35.59 |
|
|
TOOL
|
MCMUTL03 |
 |
TOOL - PISTON STOP* |
$14.45 |
|
|
TOOL
|
MCMUTL70 |
 |
FLYWHEEL & CLUTCH PULLER – CX50 |
$27.68 |
|
