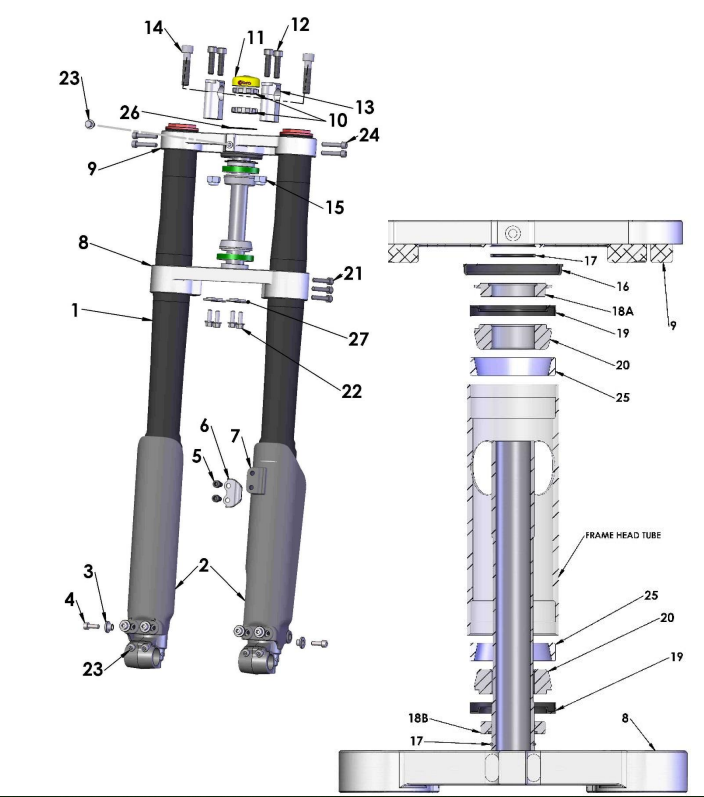

2016 Cobra CX65 Parts – Forks & Triple Clamps

Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.

Ref #	Part #	Product	Price	Quantity
1	KAC62013	FORK SET COMPLETE CX65 37MM*	$804.42
2	KCC60014	GUARD - FORK - SET CX65 - 2009 - 2021*	$29.91
3	TCC60019	WASHER - CHAIN SLIDER AND FORK GUARD	$2.76
4	HCBC0601	M6 X 16 SHCS ZINC*	$1.09
5	HCBC0612	M6 X 12 SHCS ZINC*	$1.09
6	BCC60015	BRAKELINE CLAMP*	$5.54
7	HCNS0601	M6 NUT DIN 934 CLASS 8 ZINC CLEAR*	$0.53
8	FAC60022	TRIPLE CLAMP BOTTOM ASSY CX65 37MM*	$211.30
9	FCC60062	TRIPLE CLAMP TOP*	$154.54
10	HCNJ0102	JAM NUT STEERING STEM*	$14.33
11	FCMU0151	STEERING STEM CAP	$5.54
12	HCBC0806	M8 X 30 SHCS ZINC*	$1.09
13	TKMU0404	HANDLE BAR RISER KIT - SHORT (STOCK)	$48.83
13	TKMU0403	HANDLE BAR RISER KIT - TALL*	$54.39
14	HCBC1001	10 X 45 SHCS ZINC WHEN OUT, USE HCBC1040	$2.98
15	HCNL1001	M10 LOCKNUT-1.5 THREAD PITCH	$1.64
16	FCMU1103	R/B FCMU0079 - DUST COVER STEER STEM, RUBBER*	$9.43
17	ZCMUOR35	O-RING - CLUTCH SLAVE (MINERAL OIL) & STEERING STEM SEAL*	$2.20
18A	FCMU0038	SPACER STEERING STEM W DUST SHIELD PILOT*	$8.77
18B	FCMU0037	SPACER STEERING STEM (THICK)*	$8.77
19	FCMU0039	SEAL - STEERING STEM - 8MM THK	$18.78
20	FCMU0004	BEARING - STEERING TAPERED	$16.56
21	HCBC0625	M6 X 25 SHCS ZINC*	$1.09
22	HCBF0616	M6 X 16 FLANGED HD HEX 8MM ZINC*	$1.09
23	HCBC0601	M6 X 16 SHCS ZINC'*	$1.09	Back Order
24	HCBC0603	M6 X 30 SHCS ZINC*	$1.09
25	FCMU0011	RACE FOR STEERING HEAD*	$8.77
26	HCWS1015	SHIM - WASHER 1\" x 1.5\" x.020\" STEERING STEM*	$3.20
27	TCC60021	SPACER FENDER FRONT	$4.43
TOOL	MCMUTL11	TOOL - SOCKET JAM NUT STEERING HEAD	$43.26
ACCESSORY	FKMU0006	KIT - STEERING STEM SEALS AND SPACERS 2016-2018	$99.02
