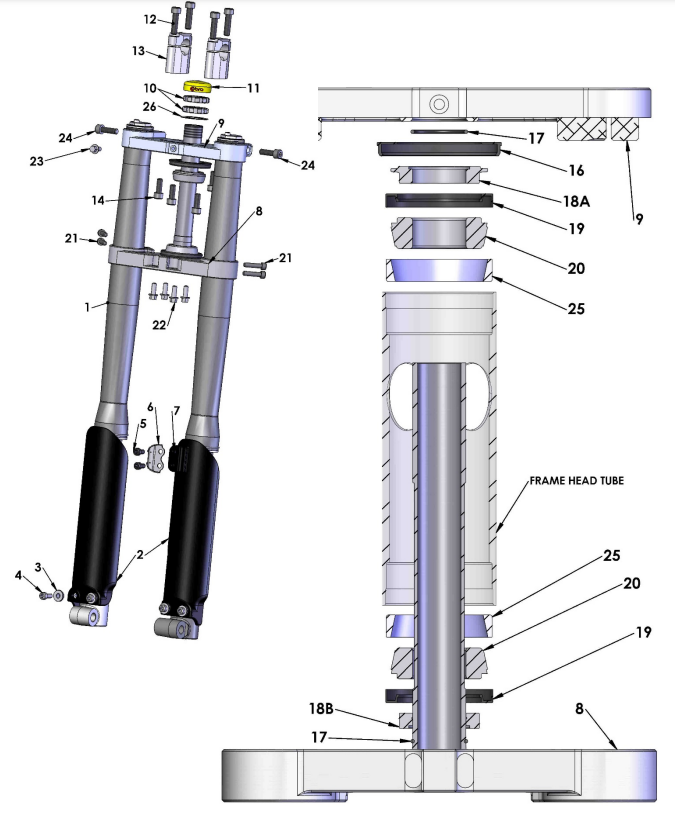

2016 Cobra 50P3 Parts – Forks & Triple Clamps

Note: Products marked with an asterisk (*) are currently out of stock and on backorder. They may take additional time to deliver and will not arrive with the rest of your order.

Ref #	Part #	Product	Price	Quantity
1	KACL2016	FORK SET COMPLETE - P3 - 32MM*	$777.71
2	KCMU0011	GUARD - FORK - SET 50CC (NO HARDWARE)*	$29.91
3	TCC60019	WASHER - CHAIN SLIDER AND FORK GUARD	$2.76
4	HCBC0601	M6 X 16 SHCS ZINC*	$1.09
5	BCC60015	BRAKELINE CLAMP*	$5.54
6	HCBC0612	M6 X 12 SHCS ZINC*	$1.09
7	HCNL0601	M6 LOCKNUT*	$1.09
8	FACJ0004	TRIPLE CLAMP BOTTOM ASSY JR/P3 - 32MM*	$205.73
9	FCCJ0025	OBSOLETE - R/B FCMU0168 - TRIPLE CLAMP TOP JR/P3 - 32MM*	$143.42
10	HCNJ0102	JAM NUT STEERING STEM*	$14.33
11	FCMU0151	STEERING STEM CAP	$5.54
12	HCBC0806	M8 X 30 SHCS ZINC*	$1.09
13	TKMU0404	HANDLE BAR RISER KIT - SHORT (STOCK)	$48.83
13A	TKMU0403	HANDLE BAR RISER KIT - TALL*	$54.39
14	HCBC0820	M8 X 20 SHCS ZINC*	$1.09
16	FCMU1103	R/B FCMU0079 - DUST COVER STEER STEM, RUBBER*	$9.43
17	ZCMUOR35	O-RING - CLUTCH SLAVE (MINERAL OIL) & STEERING STEM SEAL*	$2.20
18A	FCMU0038	SPACER STEERING STEM W DUST SHIELD PILOT*	$8.77
18B	FCMU0037	SPACER STEERING STEM (THICK)*	$8.77
19	FCMU0039	SEAL - STEERING STEM - 8MM THK	$18.78
20	FCMU0004	BEARING - STEERING TAPERED	$16.56
21	HCBC0625	M6 X 25 SHCS ZINC*	$1.09
22	HCBF0616	M6 X 16 FLANGED HD HEX 8MM ZINC*	$1.09
23	HCBF0616	M6 X 16 FLANGED HD HEX 8MM ZINC'*	$1.09	Back Order
24	HCBC0825	M8 X 25 SHCS ZINC*	$1.09
25	FCMU0011	RACE FOR STEERING HEAD*	$8.77
26	HCWS1015	SHIM - WASHER 1\" x 1.5\" x.020\" STEERING STEM*	$3.20
ACCESSORY	FKMU0006	KIT - STEERING STEM SEALS AND SPACERS 2016-2018	$99.02
